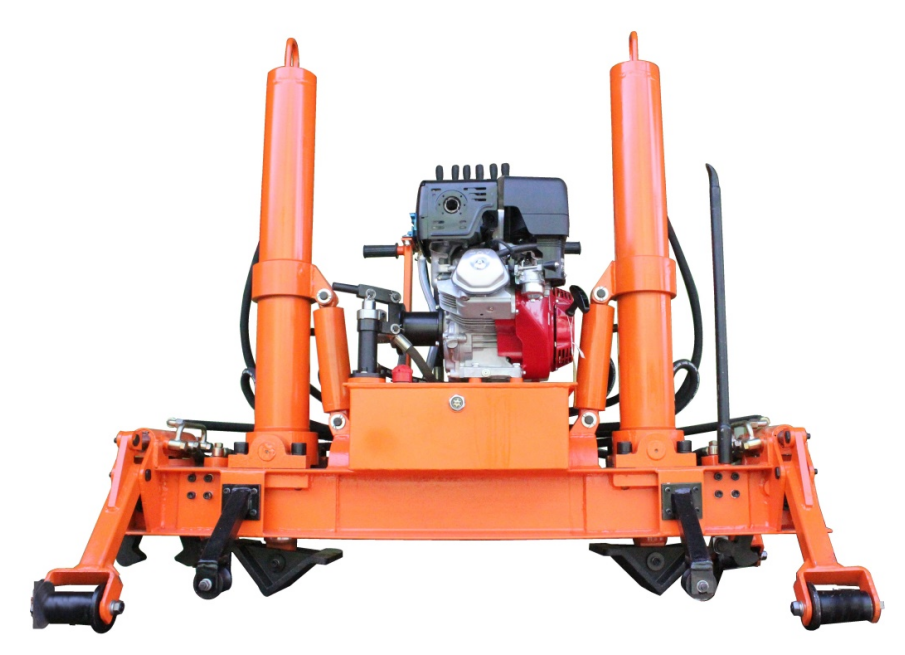

YQBJ-300 × 200 hydraulic track lifting and shifting machine
YQBJ-300 × The 200 type hydraulic track lifting and shifting machine is a specialized equipment for railway line maintenance and track bed maintenance. It is suitable for track lifting and shifting operations on 43 kg/m to 75 kg/m steel rail lines, and can both lift and adjust track level operations. It has the characteristics of high work efficiency, simple and lightweight operation, reduced physical labor, safety and reliability, and wide applicability.
Main technical parameters
1. Rated lifting force: 150kN × two
2. Lift cylinder stroke: 800mm ± 5mm
3. Rated track force: 200kN
4. Lane volume: ≥ 160mm
5. System working pressure: 16MPa
6. Manual pump operating force: 350N
7. Engine power: 9.5kW
8. Volume (length × wide × High: 1750 × eight hundred and fifty × one thousand five hundred and ten
9. Mass: 588kg
10. Equipped with a dedicated insulated lower track frame, it can be used at any time, convenient and fast, fully meeting the clearance requirements of the Ministry of Railways, safe and convenient
11. Wooden box weight: 120kg (2100 × one thousand and one hundred × 1600)

12. Traveling frame: 56kg (2440 × one thousand four hundred and forty × 660)

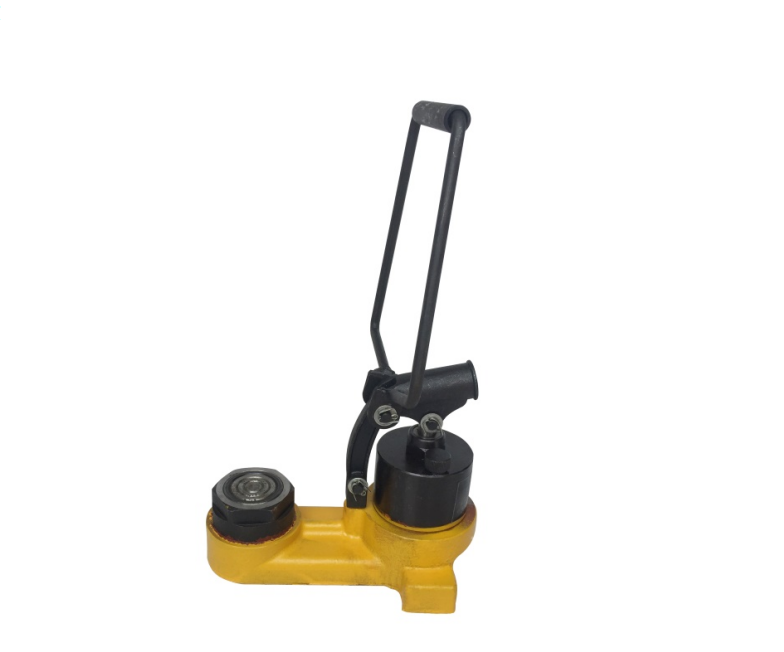

YQD-245 Hydraulic Track Ejector
YQD-245 hydraulic track lifter is suitable for track and turnout track lifting operations with rails of 43kg/m and above. It drives the piston to rise through a manual plunger pump, driving the track lifting lever to quickly lift the track lifting wheel at the front end of the track lifting lever at the bottom of the rail, achieving the purpose of track lifting operations
Main technical parameters
1. Rated lifting force: 245KN
2. Lift of lifting wheel: 125mm
3. Rated oil pressure: 77MMPa
4. Handle operating torque: ≤ 480N. m
5. No-load efficiency: ≥ 5mm/time
6. Overall weight: ≤ 29kg
7. Applicable rail type: 50kg/m, 60kg/m

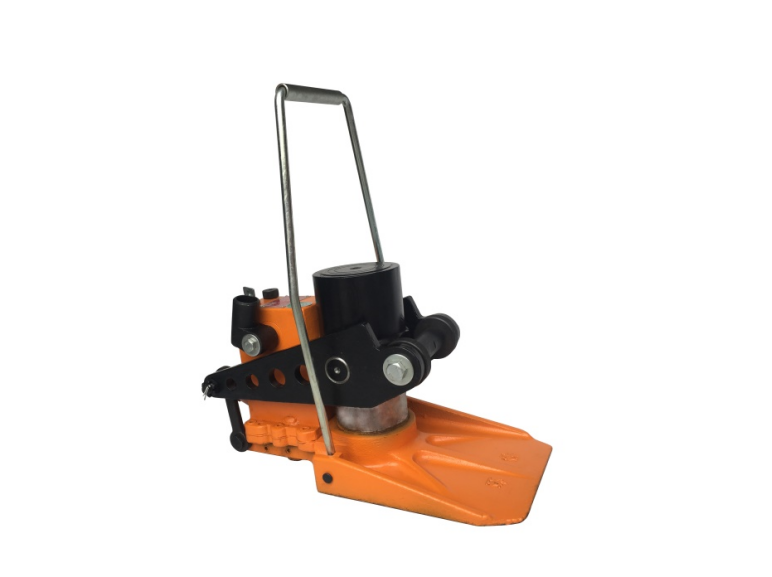

GYQD-196 Wide Pillow Plate Hydraulic Track Ejector
GYQD-196 wide sleeper hydraulic track lifter (high stroke hydraulic track lifter), with a maximum track lifting force of 196KN and a maximum track lifting stroke of 220mm, is mainly used to lift sleepers during sanding operations in sleeper plate sections. It has the characteristics of convenient operation, safety and reliability, fast track lifting speed, and high track lifting stroke. It can also be used during the installation of speed-up switches and can replace the rack track lifter for operation. It has the advantages of high safety factor and large lifting force. It is an ideal tool to replace the operation of rack and pinion track lifters.
Main technical parameters
1. Rated lifting force: 196KN
2. Rated refueling pressure: 70MPa
3. Maximum starting height: 220mm
4. Empty lift: ≥ 4.69mm
5. Handle operating torque: ≤ 444N · m
6. Overall weight: 28kg

YQ-88A hydraulic high-speed rail track lifter
Mainly used for track lifting during maintenance operations on ballastless railway lines. It has the characteristics of compact structure, convenient use, safety, labor-saving, light weight, and the amount of lifting per time can be controlled according to needs.
Main technical parameters
1. Rated lifting force 88KN
2. Maximum track lifting capacity 60mm
3. Handle operating torque 220N. m
4. Starting height: 25mm
5. Weight: 8kg

GYQD-98 Hydraulic High Speed Rail Track Lifting Device
Suitable for the lifting operation of ballastless high-speed railway lines. This machine has the characteristics of small size, light weight, safe and convenient operation, compact structure, high efficiency, and no invasion of "boundaries"
Main technical parameters
1. Rated lifting capacity: 98KN
2. Maximum lifting capacity: 39mm
3. Handle operating torque: ≤ 360N. m
4. No-load efficiency: ≥ 3mm/time
5. Overall weight: 7kg

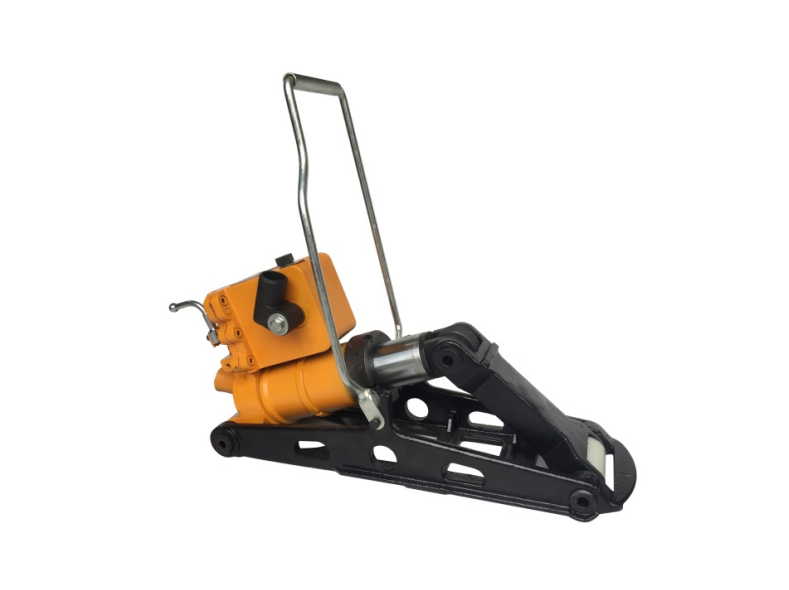

YQB-245 Hydraulic Track Lift
Suitable for track lifting and shifting operations on railway lines with 43kg/m and above steel rails and speed increasing switches. This machine adopts a three hinge mechanism, which has good lifting and shifting performance, large force, light weight, convenient operation, and the characteristics of one machine for two purposes.
Main technical parameters
1. Rated lifting force: 245kN
2. Rated track force: 196kN
3. Maximum starting capacity: 120mm
4. Maximum lane displacement: 82mm
5. Handle operating torque: ≤ 490N. m
6. No-load efficiency: ≥ 5mm/time
7. Overall weight: ≤ 27kg

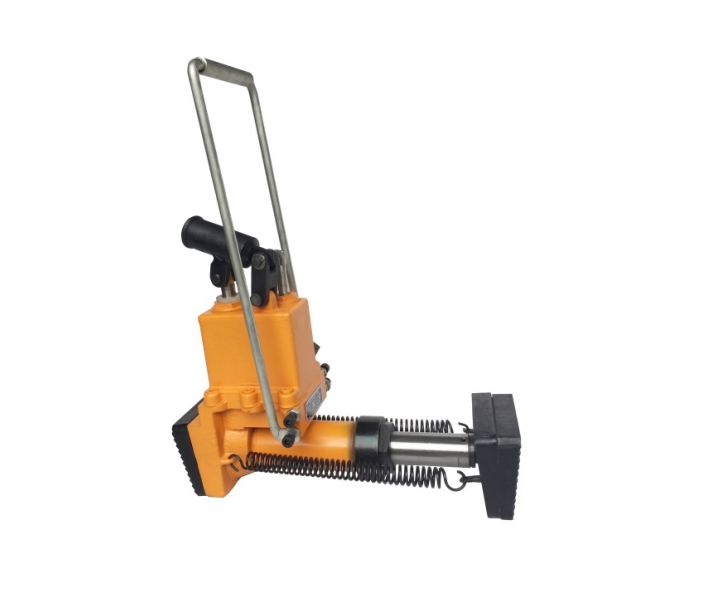

YFZ-147 Hydraulic Square Sleeper
YFZ-147 hydraulic square sleeper is a manual machine for railway maintenance and repair operations, suitable for various types of pre-stressed reinforced steel sleepers and wooden sleeper sections of railway lines. After the operation is completed, the piston can automatically reset with high efficiency, reasonable design, and compact structure. Each operation can be controlled according to needs. This machine has been evaluated by the Beijing Railway Bureau and has won the fourth prize of the Science and Technology Achievement Award of the Beijing Railway Bureau Science and Technology Committee
Main technical parameters
1. Maximum thrust: 147KN
2. Maximum working stroke: 110mm
3. Minimum installation length: 270mm
4. Handle operating torque: ≤ 480 N · m
5. Overall weight: 16kg

GYGT-60 High Speed Rail Hydraulic Gauge Adjuster
The GYGT-60 high-speed rail hydraulic gauge adjuster relies on a support mechanism to pass through the bottom of two steel rails, one end of which is clamped to one steel rail, and the hydraulic working mechanism is placed on the inner or outer side of the other end of the support mechanism to adjust the gauge, achieving the purpose of diversion operations.
Main technical parameters
1. Diversion volume: 45mm
2. Diversion force: 60KN
3. Rated system pressure: 31MPa
4. Handle operating force: 200N · m
5. Overall weight: 18Kg

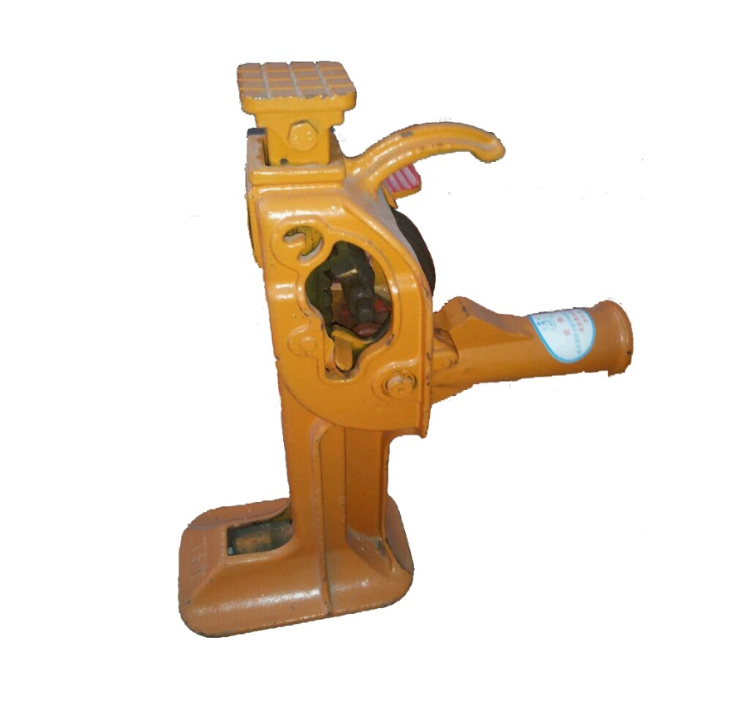

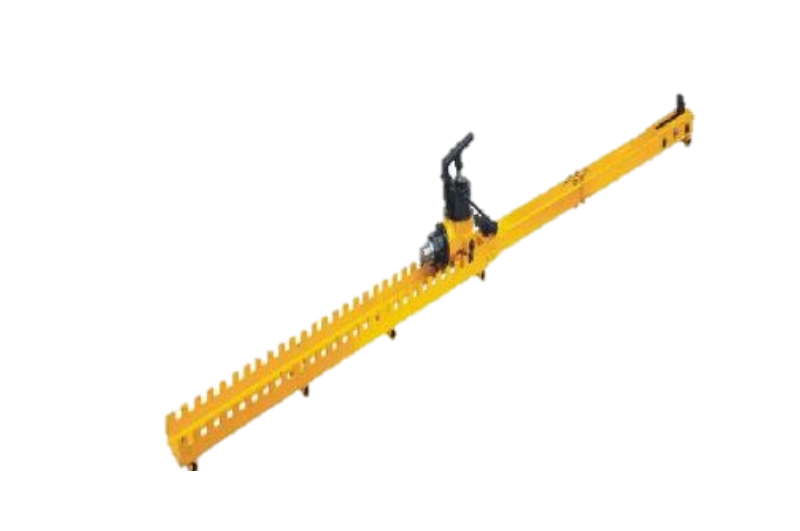

Rack crane
1. Rated lifting force: Type A 147KN, Type B 196KN
2. Rated lifting force: Type A 78KN, Type B 104KN
3. Starting height: ≥ 280mm
4. Initial height: ≤ 60mm
5. No-load efficiency: 16 mm/time
6. Overall weight: ≤ 26kg
7. Length of lever (crowbar) (provided by the user): 1.5m
8. Maximum lifting force at full load: 1920N
External dimensions: (length × wide × High) 20 × one hundred and sixty-five × 522mm
