Hydraulic rail straightener

Size: 1000 × four hundred and forty × 370 (mm)

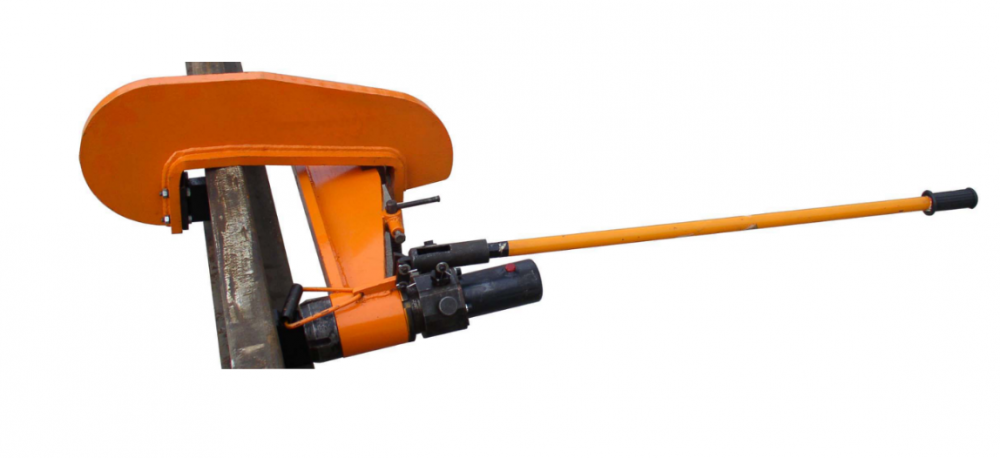

YZ-750 Hydraulic Straightener
YZ-750 hydraulic rail straightener is a manual hydraulic special tool used to straighten (or bend) various rail types below 43kg/m to 75kg/m in the horizontal direction on the line. The body is welded with special steel, with reliable performance, compact structure, light weight, and convenient disassembly.
Main technical parameters
1. Maximum straight rail force: 750kN
2. Rated straight rail force: 640kN
3. Rated working pressure of the system: 52MPa
4. Working piston stroke: 70mm
5. Plunger pump diameter × Journey: Φ fourteen × forty
6. No-load efficiency: 1.6mm/time
7. Overall weight: 76kg
8. Overall size: 850 × five hundred and twenty × 240 (mm)
9. Gross weight: 98Kg

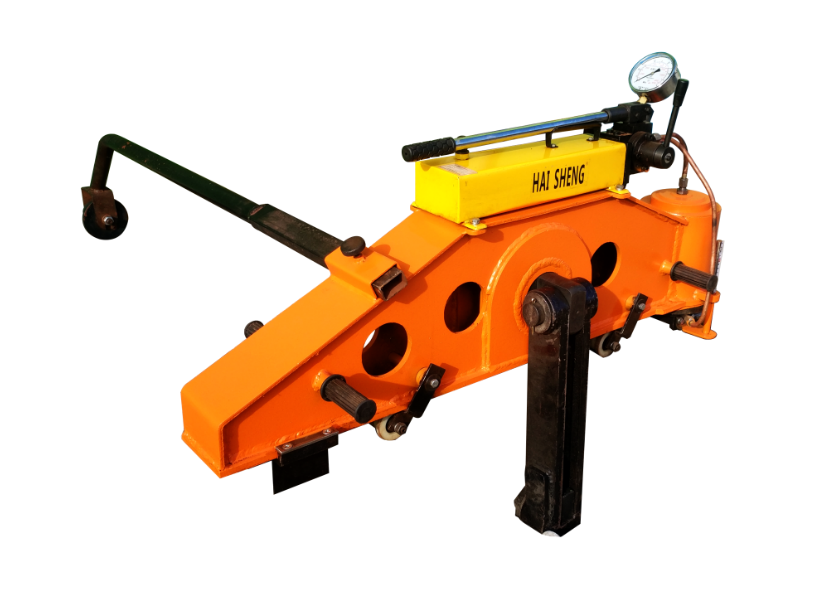

YZ-750 hydraulic rail straightener (split type)
YZG-750 hydraulic rail straightener is a manual hydraulic special tool suitable for horizontal straightening (or bending) of various rail types on railway lines ranging from 43 kg/m to 75 kg/m. The body is welded with special steel, with reliable performance. Able to carry out straight (curved) operations under railway rail tracks to ensure driving safety; It can also be operated on railway rail tracks, with a compact structure, light weight, and convenient disassembly and assembly.
Main technical parameters
1. Maximum straight rail force: 750kN
2. Rated straight rail force: 600kN
3. Working pressure of oil pressure system: 59MPa
4. Working piston diameter × Journey: Φ seventy × seventy
5. Pump plunger diameter × Journey: Φ fourteen × forty
6. No-load efficiency: 1.6mm/time
7. Straight rail amount: ≥ 3mm
8. Overall weight: 89kg
9. Overall dimensions: 830 × seven hundred and twenty × 350 (mm)
10. Gross weight: 107Kg

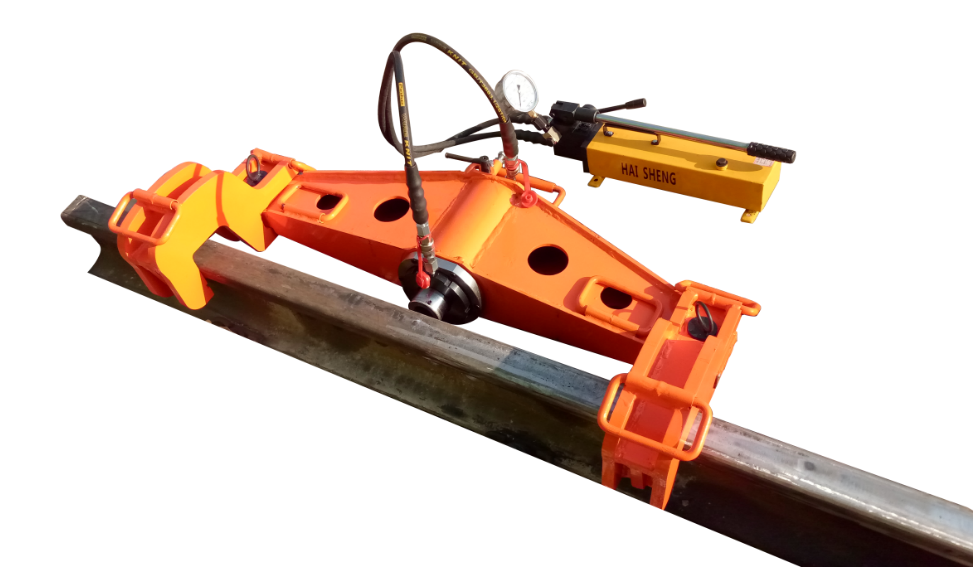

YZG-550 Hydraulic Double Hook Straightener
The YZG-550 hydraulic double hook rail straightener is a manual hydraulic special tool for straightening (or bending) the 43kg/m-75kg/m rail, AT rail, and switch rail in the horizontal direction on the line. The body is welded with special steel, with reliable performance, compact structure, light weight, and convenient disassembly.
Main technical parameters
1. Rated straight rail force: 550kN
2. Rated working pressure of the system: 57MPa
3. Working piston stroke: 120mm
4. No-load efficiency: 1.5mm/time
5. Main beam mass: 75kg
6. Hook beam mass: 25.5kg
7. Pump station: 14kg
8. Other accessories: 9.5kg
9. Overall size: 1150 × seven hundred × 400mm

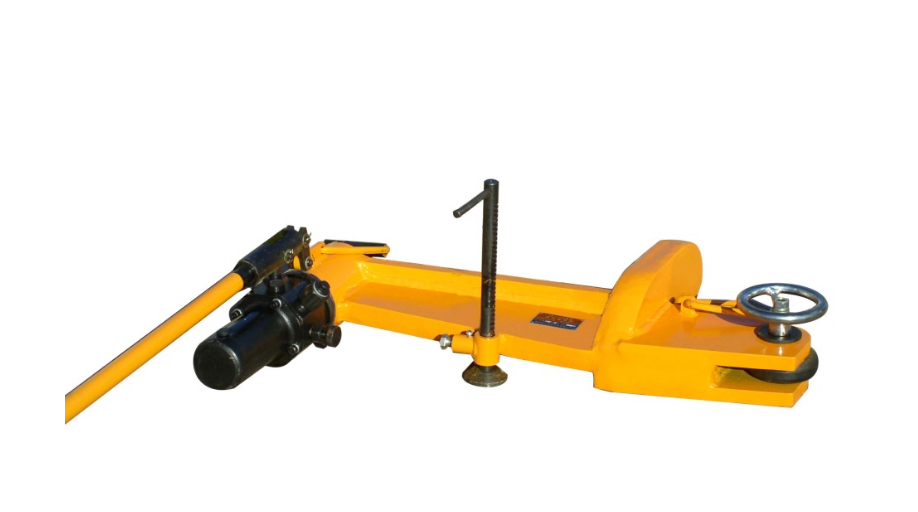

YPG-1000 Hydraulic Rail Leveler
YPG-1000 hydraulic rail leveler is suitable for vertical alignment of various types of rail joints on railway lines, ensuring the flatness of the joint between two rails. This machine has the characteristics of simple structure, convenient operation, safe use, and reliable quality, and is suitable for maintenance, overhaul, and emergency repair operations in the engineering department.
Main technical parameters
1. Maximum flat rail force: 1100kN
2. Rated flat rail force: 1000kN
3. Maximum working pressure 52MPa
4. No-load efficiency: 1.5mm
5. Adjust the change range of the support point (top block): ± 100mm
6. Maximum operating force: 436kN
7. Overall weight: approximately 190kg
8. Overall dimensions: 1200 × three hundred × six hundred and sixty
