Railway crane and rail transport vehicle
2 year ago

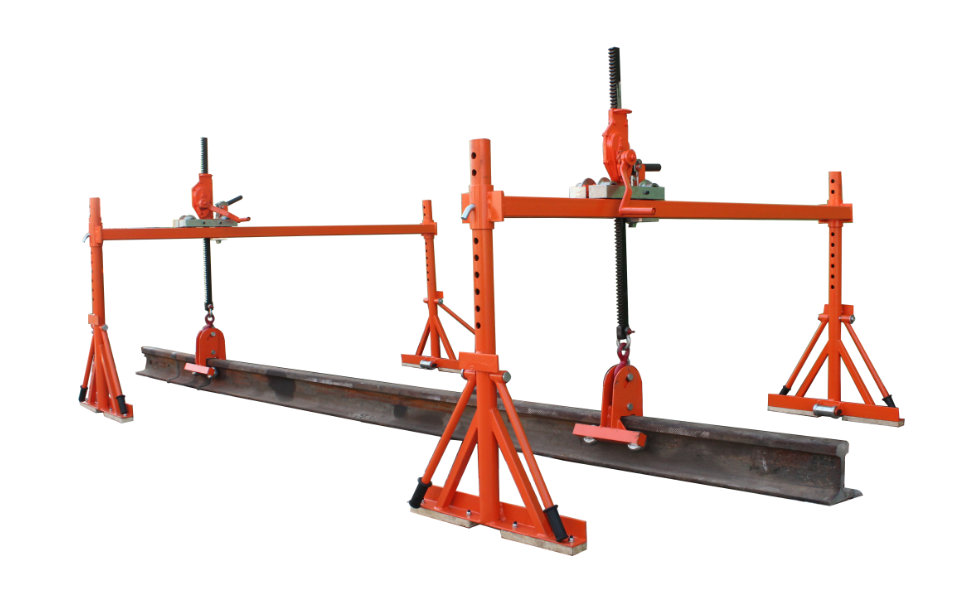

The DG-1 type steel rail gantry small crane group is suitable for the new and old switching operation of steel rails, switch rails, and frog center rails. There are running wheels on both sides of the center, which can be pushed during transportation. It has the characteristics of adjustable height, lateral adjustment, locking, light weight, convenient handling, and wide application range.
Optional section rail transport trolley, capable of transporting steel rails, switch rails, and frog center rails. The wheels are made of nylon wheels with good insulation performance and equipped with brake devices, which are safe and reliable, lightweight, and highly efficient. It is an ideal special tool for railway engineering departments to transport steel rails during construction operations.
Main technical parameters
1. Rated load of suspension rail: 1T (one set)
2. Capacity of section rail transport trolley: 500kg
3. Hoisting travel: 1 meter
4. Overall dimensions (length × wide × High: 2410 × seven hundred × 1540mm
5. Gantry crane mass (single unit): 97kg
6. Single piece weight: ≤ 23 kg
7. Trolley mass: 28 kg

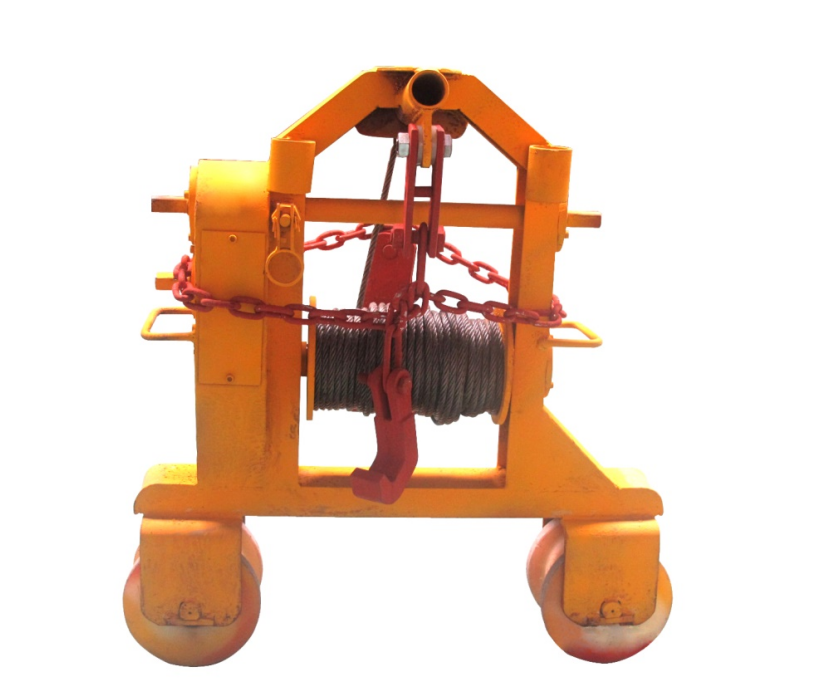

SLY-3 multi-functional rail transport vehicle
The SLY-3 multi-functional rail transport vehicle is suitable for handling various types of steel rails, concrete sleepers, frogs, and other online materials stored near railway roadbeds in the operation of the engineering department. This device is a portable and portable hand operated trolley that does not require any power source. The running wheel is made of nylon material, and the auxiliary chain and push handle have good insulation performance, which does not affect the track circuit. It has the characteristics of light weight, fast descent, easy descent in difficult areas such as bridges and tunnels, and safety in avoiding vehicles.
Main technical parameters
1. Maximum tensile force: 0.8T
2. Maximum pulling distance: 25m
3. Operating force: 20kg/single arm, 10kg/double arm
Mass: 40kg

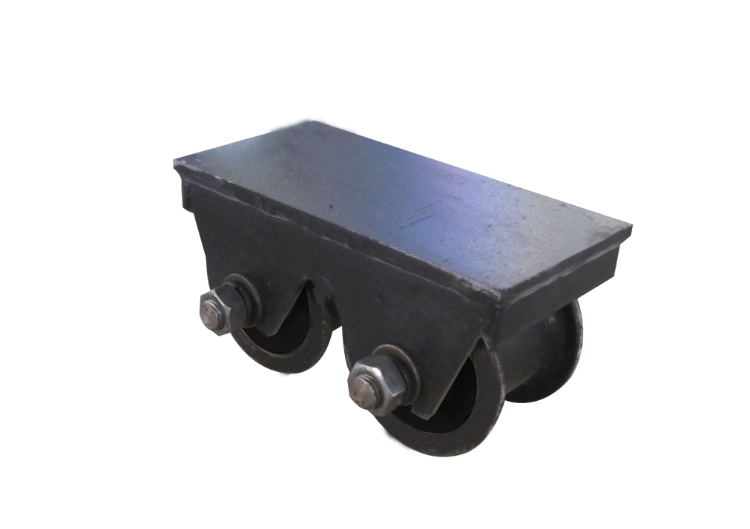

DG-1 Monorail Vehicle
The overall design of the DG type monorail vehicle adopts the method of cutting gold into rectangular shapes, and the material is made of high-quality carbon steel. It has a large load capacity, is simple, beautiful, and practical. It is an ideal rail transport tool.
Main technical parameters
Load capacity: 500kg
Outline size: 1200 × four hundred × one hundred and eighty-four
Self weight: 60kg

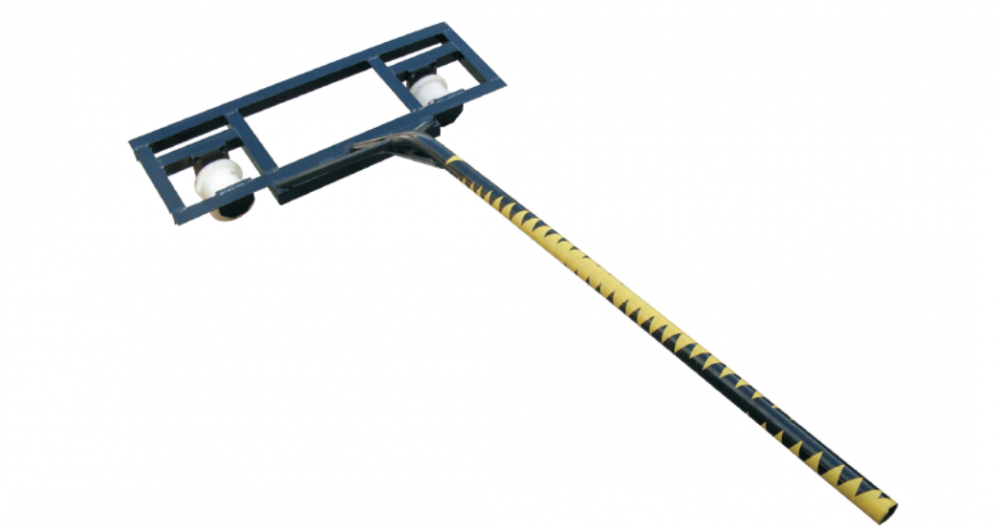

YG-1 rail conveyor
Rated load of rail transportation: 1-1.5T
Outline size: 2180 × one hundred and thirty × 104 (mm)

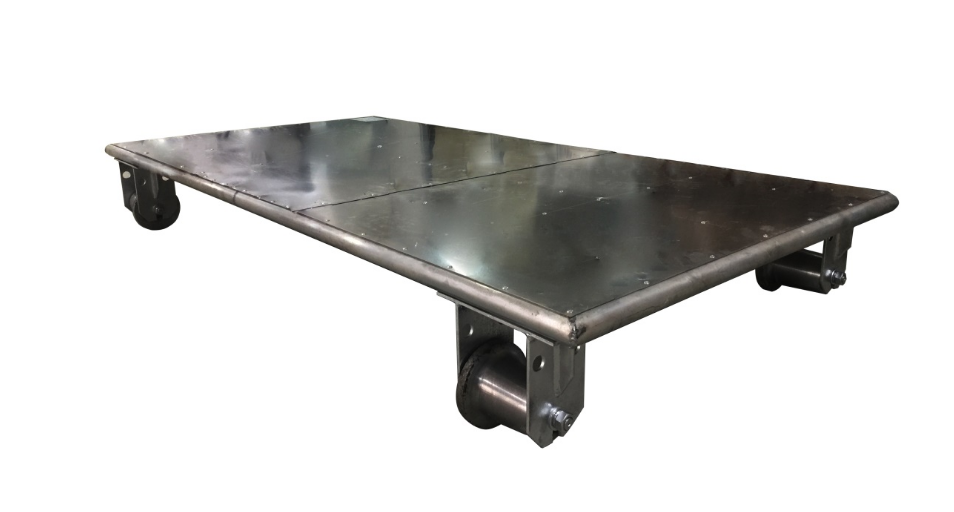

GDC-2 type track flat car
The overall structure is welded with high-quality carbon structural steel, which has high strength and rigidity. It has a small volume and large carrying capacity, making it an ideal (hand pushed) railway transportation tool for loading various machinery and bulk goods.
1. Load capacity: 5T (customizable according to user needs)
2. Track gauge: 1435mm
3. Outline size: 2300 × one thousand and three hundred × 350mm

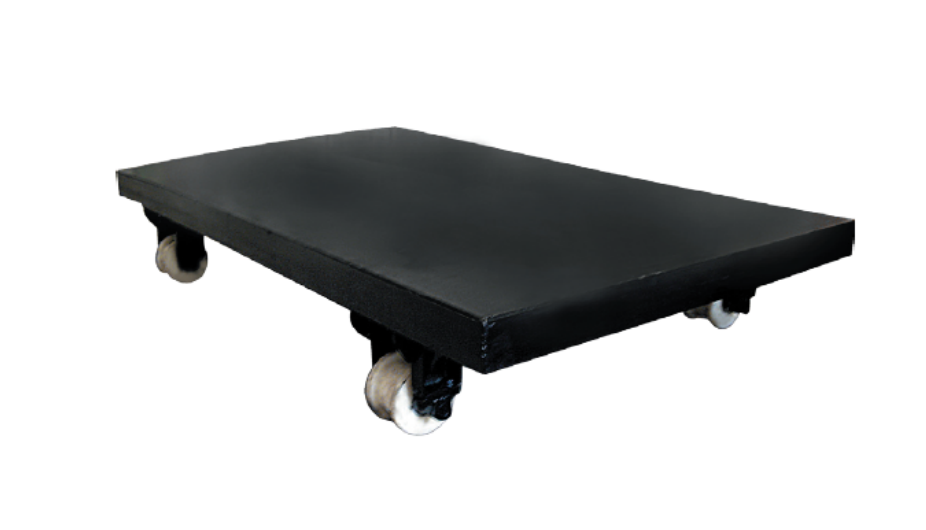

GDC-1 Tool Small Flat Car
The overall structure is welded with high-quality carbon structural steel, which has high strength and rigidity. It has a small volume and large carrying capacity, making it an ideal (hand pushed) railway transportation tool for loading various machinery and bulk goods.
GPC rail car
1. Overall weight: 21kg
2. Size: 320 × two hundred and thirty × 150 (mm)

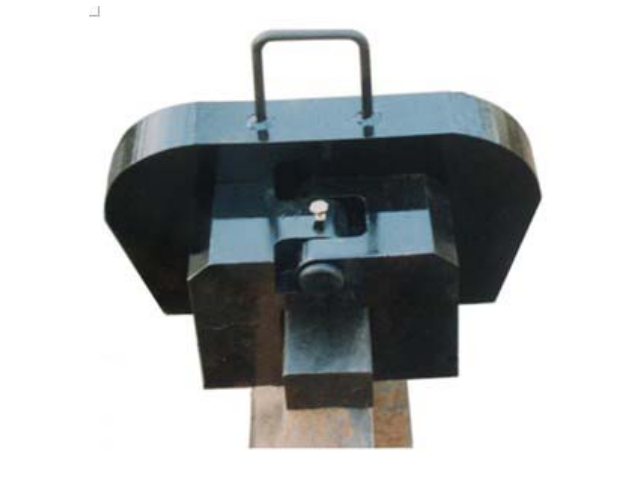

ZGQ rail collider
1. Card specific
2. Left clamp body (overall forging)
3. Right clamp body (overall forging)
4. Wedge iron
5. Pin shaft
6. Locking screw
ZGC rail collision vehicle
1. Overall weight: 300kg
2. Boundary dimension: 2480 × three hundred × 195mm
