40m Double Versatile Distance Meter Sensors

40m Double Versatile Distance Meter Sensor

The regular laser distance meter sensor is a close distance sensor that can measure 20m. Customers used the lidar sensor to make a new laser measurement solution of 40m bilateral laser measurer. Then, oem smart laser measure tool can measure in versatile measuring mode in single side, two-way side etc, even you measured in one hand fast and easily. Welcome to oem your own laser measuring device via purchasing JRT distance meter sensor.

Laser distance meter technology
JRT laser Laser meter sensors adopt Single Transmit & Single Receive principle, which is better for low power consumption.

Kindly advice:
If you want to use our sensor for your laser distance meter on android, you can choose the laser distance meter module with bluetooth output for your design.
For considering buying one of these laser distance meter accuracy sensors, or finding any specification detailing how should i connect it to anything,contact us now!!
Thanks for choosing JRT. Good day my friend

Features and Benefits
• Embedded ttl communication
protocol helps minimize testing time and increase productivity
• Class 2 laser helps alignment and measure
• Sensers measuring ranges: 30 mm to 20 m

Technical Feature:

Range: 0.03 meters - 20 meters(40m two-way)
Invisible measuring: 620nm ~ 690nm
Measuring accuracy: +-1 mm
Measuring frequency: Up to 3 Hz
Laser type: Class 2, red

Size: 41*17*7mm
Working temperature: 0 ~ 40 degree
Storage temperature: -25 ~ 60 degree
Notes:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. 40m can be customized.
4. Voltage can be changed by power converter LDO
5. Frequency would be affected by environment.
6. Operating temperature -10 ℃~50 ℃ can be customized.
7. Analog can be customized.

Detailed Pictures

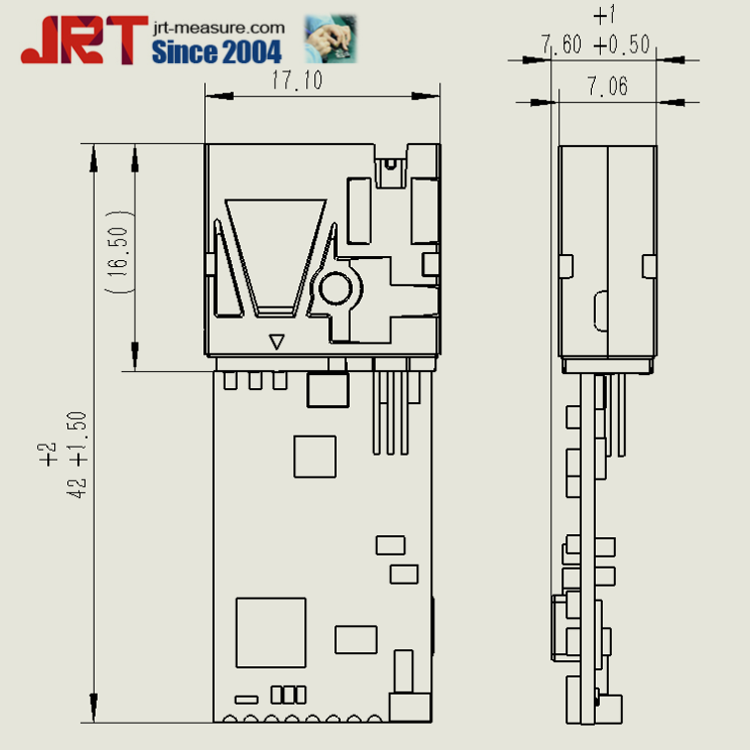

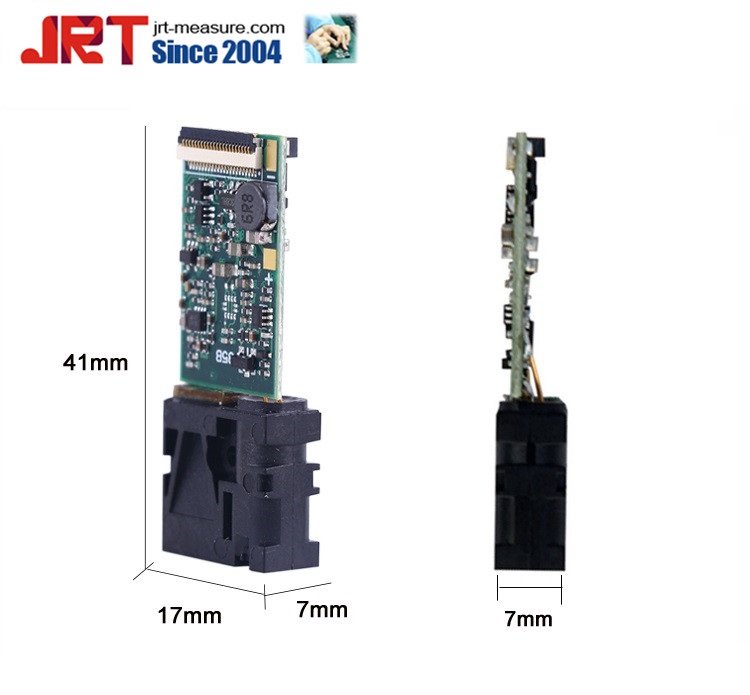

Laser Distance Meter Sensor Size

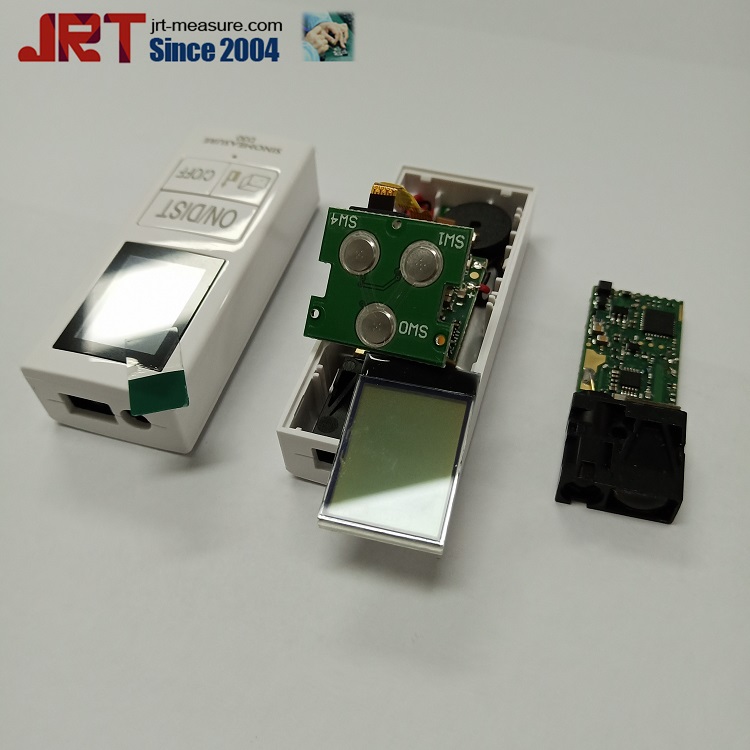

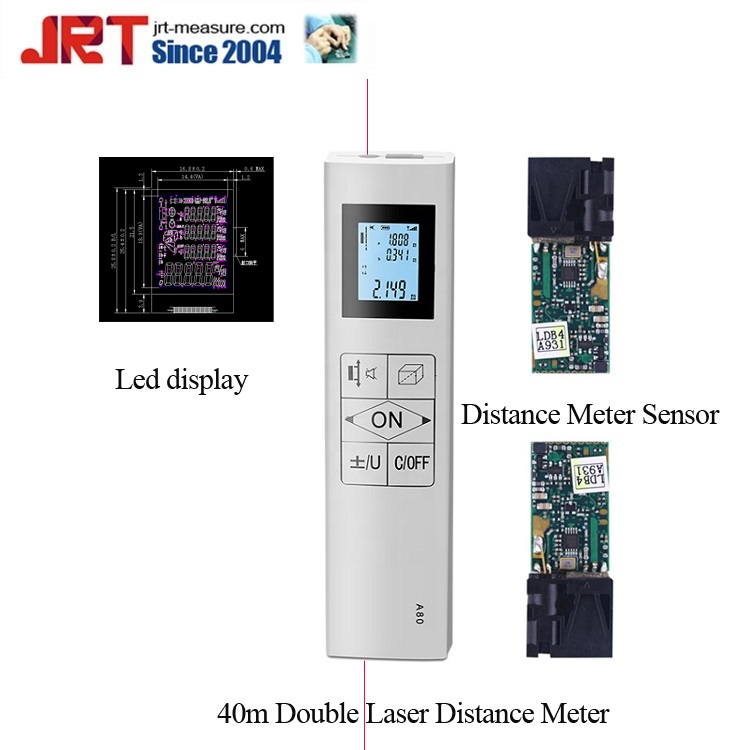

Double Laser Distance Meter and Sensor

Double Laser Distance Meter Sensor Len

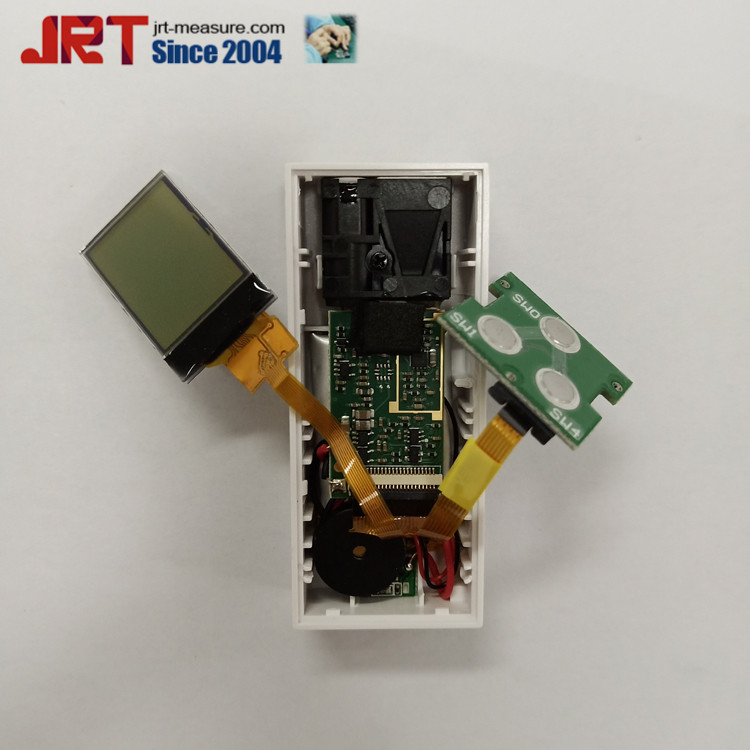

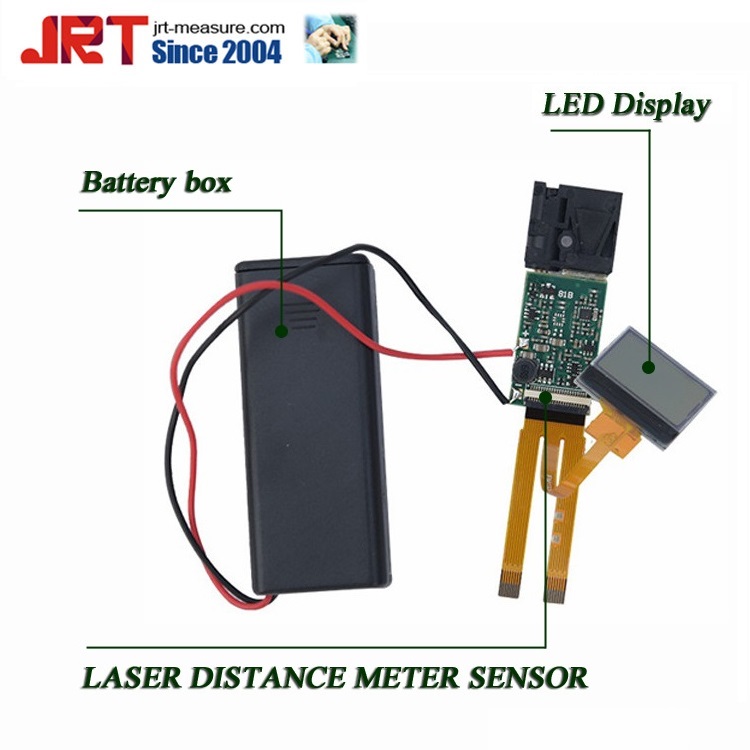

Double Laser Distance Sensor and LCD

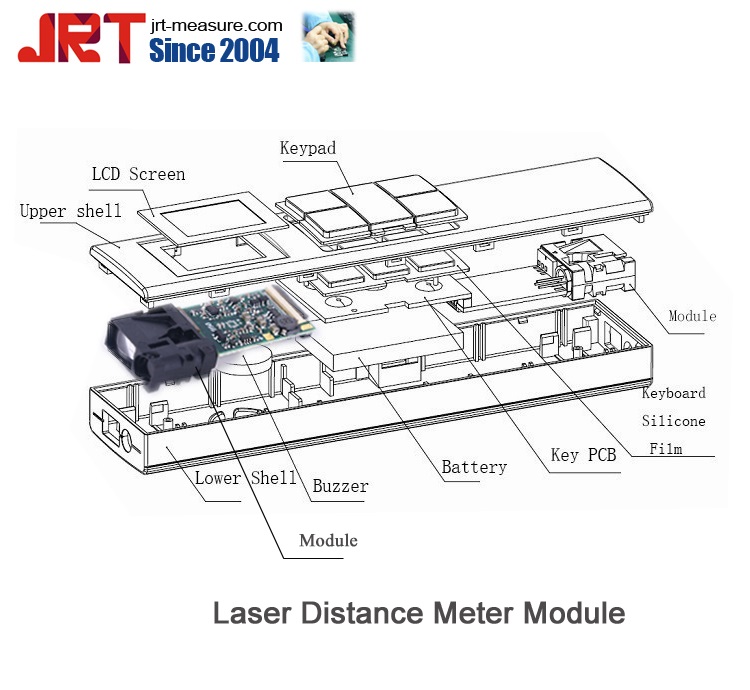

Diagram for the Laser Distance Sensor
