M Series Distance Measuring Sensors M88B_MB2D_MB2A

Wireless Sensor Applied to Arduino Raspberry Pi UDOO

We have three sizes of module, the Big size 72x40x18mm,the middle size 45x25x12mm ,the samllest size 41x17x7mm, with accuracy +-1mm. Supporting single and continuous measure mode. Our module has been widely used to secondary development.  Laser ranging module is the core part of laser measuring tool, Which is widely used in professional survey, mapping, the construction industry, robot, hunting, drone, railway monitoring ,traffic accident handling and storage, etc.  Wireless Sensor has been widely used to industries such as the WiFi and Bluetooth application. The resolution of our

M703A laser distance meter sensor is 1mm, with measuring range from 0.03 to 40~60 metres.  If users needed, we can also connect RS485 RS232 USB laser distance sensor for them.

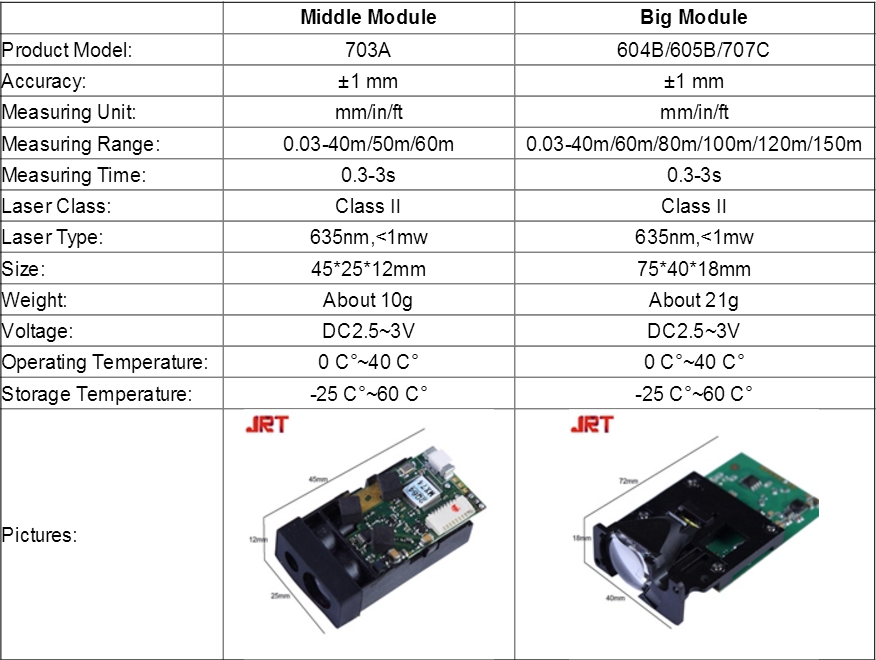

Parameters:

Note:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error:  ±3 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature -10 ℃~40 ℃ can be customized.

Applications:

Why Us

1.     Quality. Thanks to our strong R&D team, JRT Laser distance meter and modules have been keeping the pace with the measuring technical evolving and pioneering the industry with the unique and patented laser phase measuring solution. From the view of Accuracy, Range, Resolution, Stability, Size and Power Consumption, JRT is undoubtedly one of the best in the line.

2.    Schemes of single transmit and single receive. This is one of our patents. We are the only one in the market have this technology. It helps us to reduce our cost and power consumption a lot.

3.     Accuracy and Range. Our typical accuracy is ±1.0mm, and range from 40m to 150m.

Chengdu JRT Main Ranging Modules: Industrial Laser Distance Sensors, Laser Rangefinder Sensor, Tof LiDAR Sensors.
