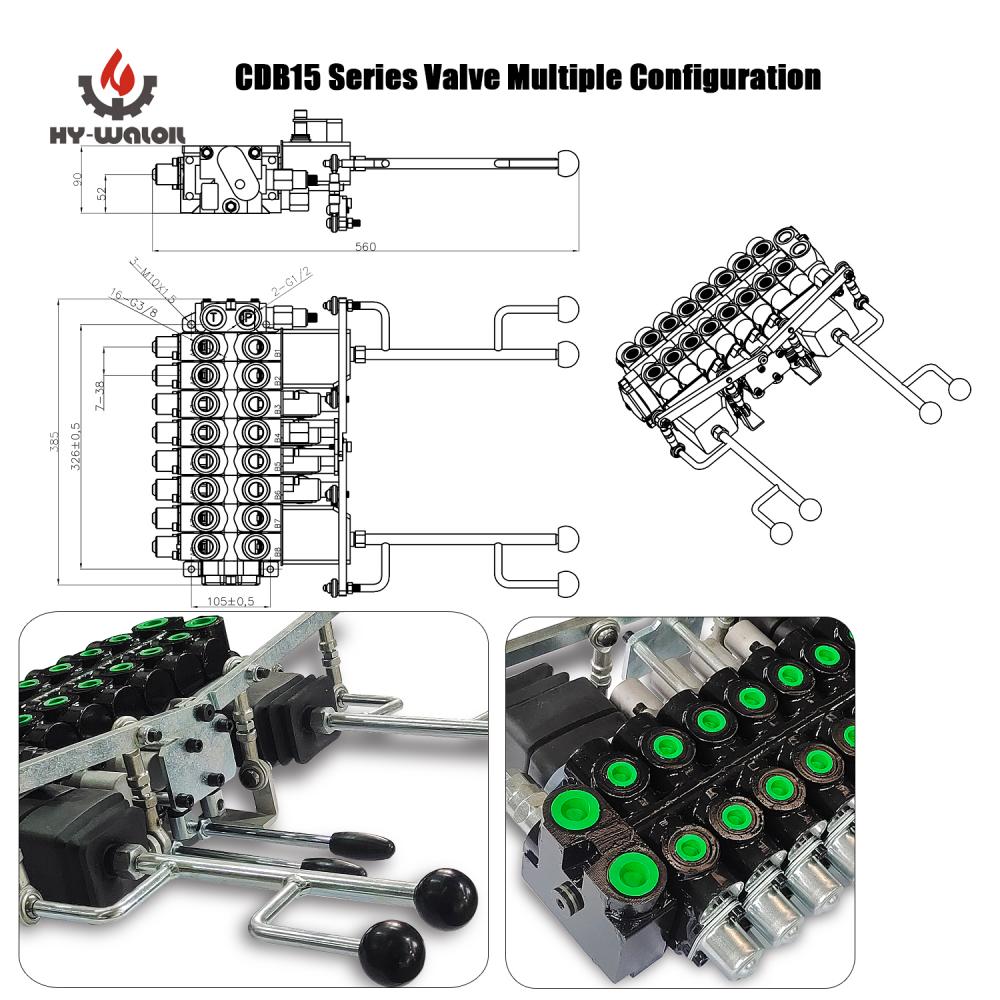

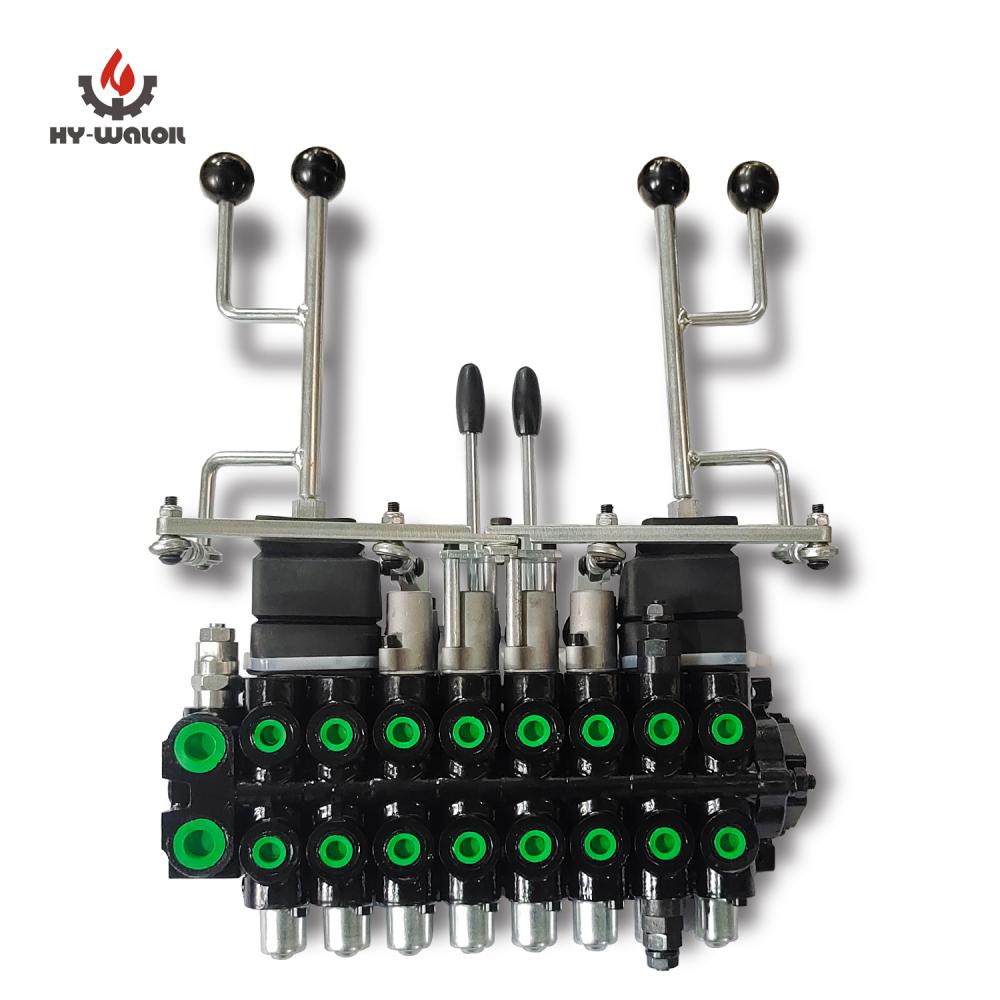

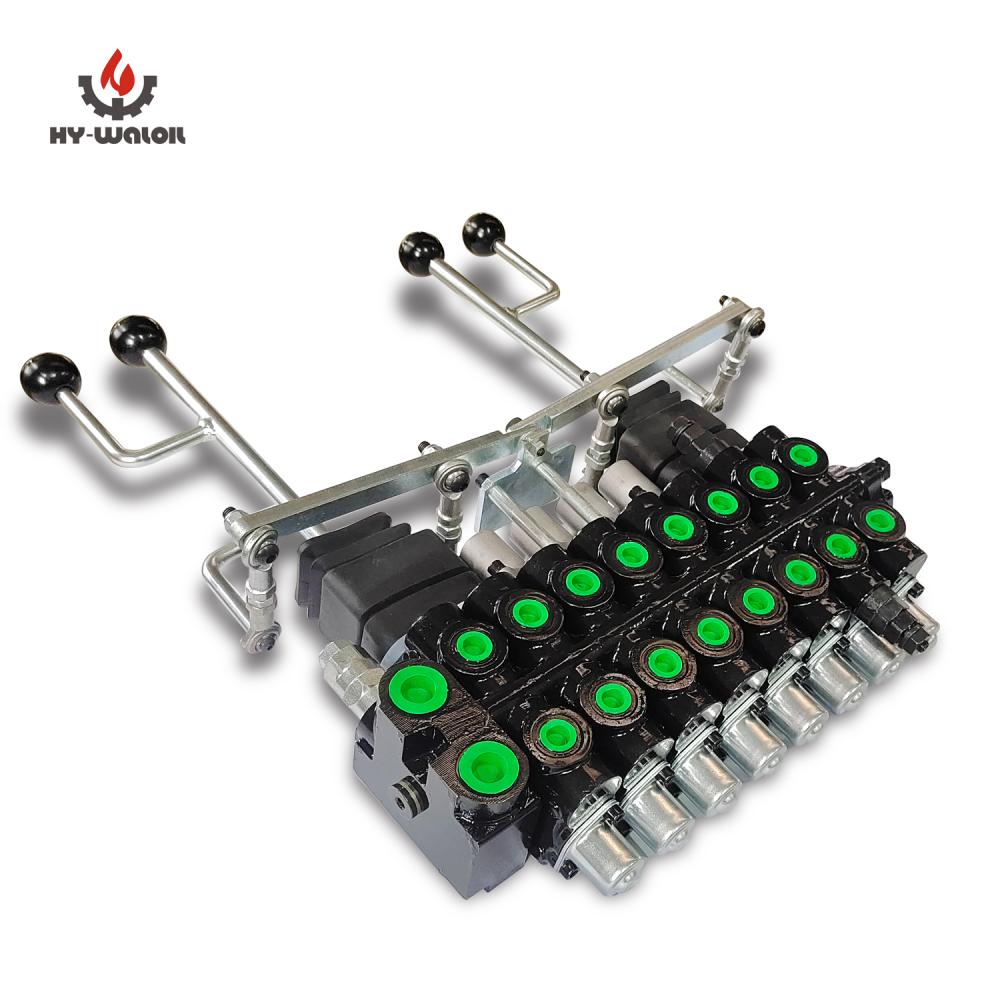

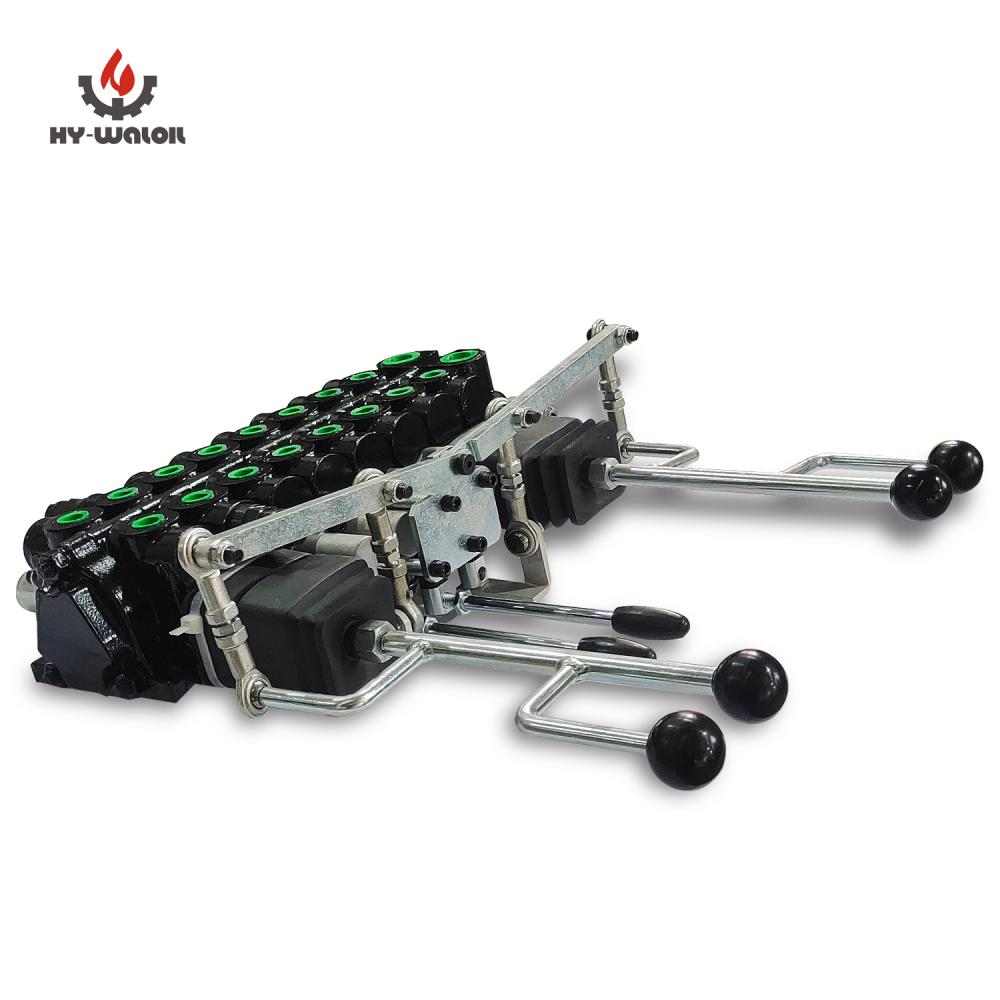

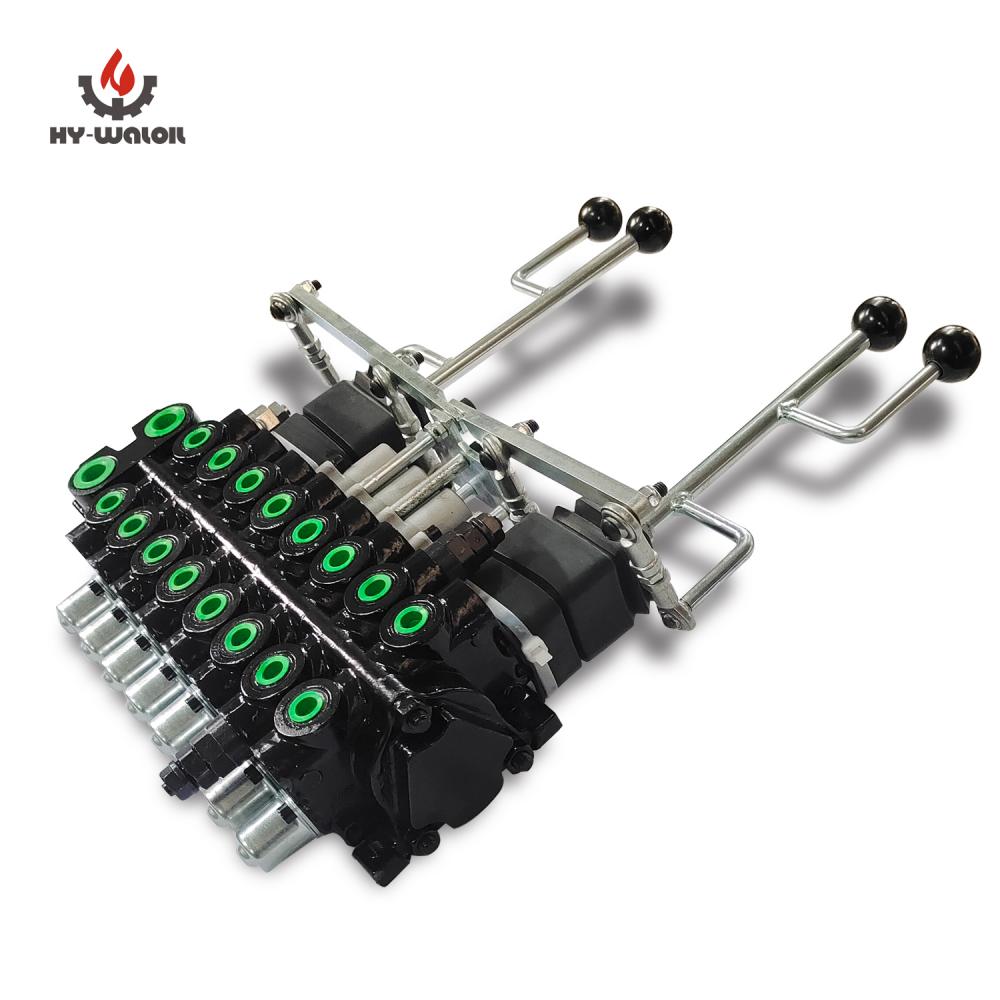

CDB15-8 Manual Hydraulic Valve

The CDB15 Series is a specially designed and developed medium to high-pressure integrated directional control valve, tailored to meet the specific requirements of wood splitting machinery. This monoblock valve can be customized with an overflow valve according to customer needs. Here are the advantages of the CDB15 Series:

Key Features:

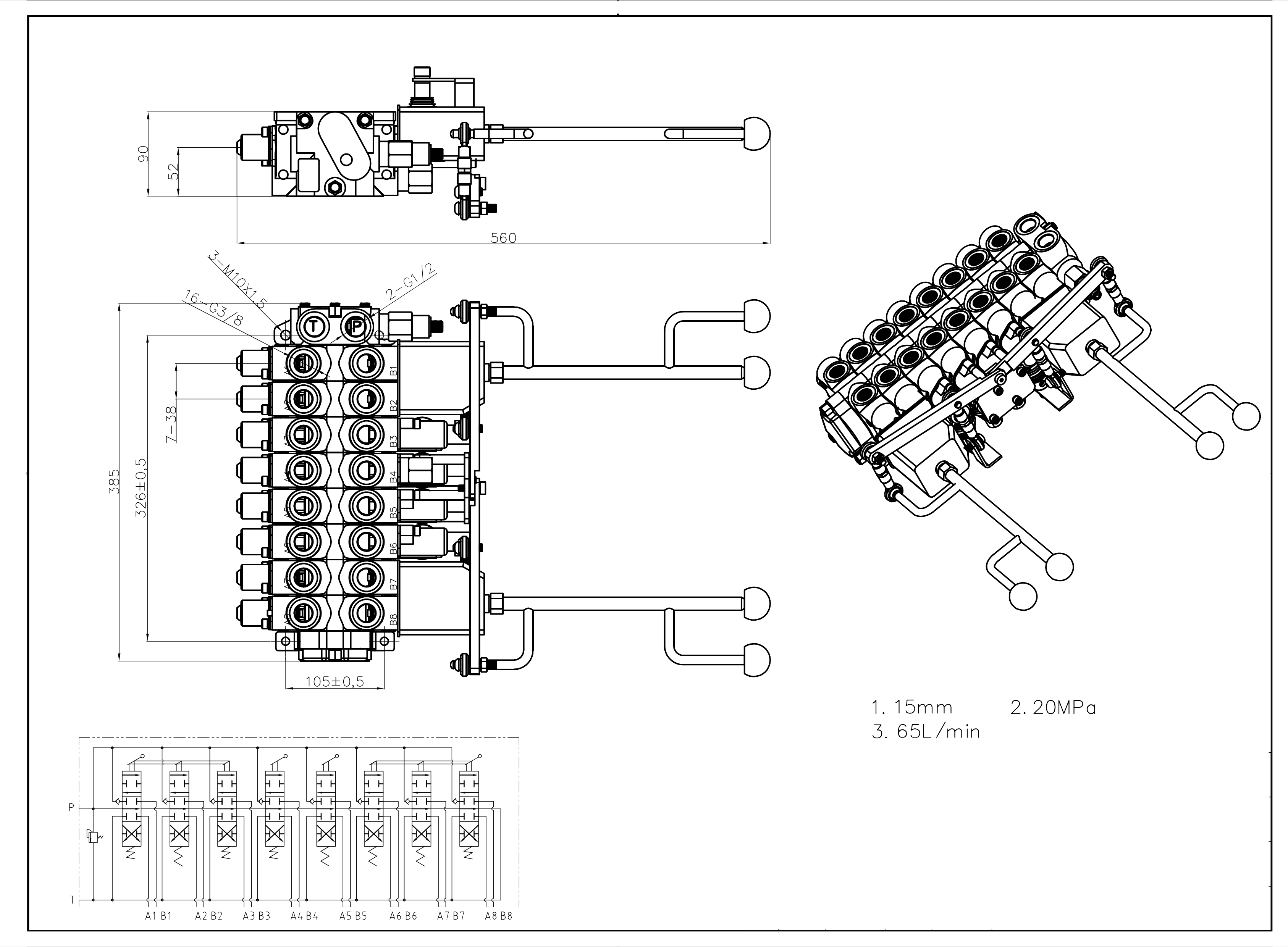

1. Nominal Bore Size: 15mm, designed for optimal flow and pressure management.
2. Rated Pressure: 20Mpa, ensuring the valve can withstand high working pressures.
3. Nominal Flow Rate: 65L/min, providing ample flow for efficient operation.
4. Adjustable Pressure Relief: The overflow valve allows for precise pressure regulation.
5. Prevention of Oil Backflow: A check valve is integrated to prevent oil from flowing in the reverse direction.
6. Versatile Spool Functions: The spool valve offers a, O, and Y functions, allowing for various configurations to suit different applications.

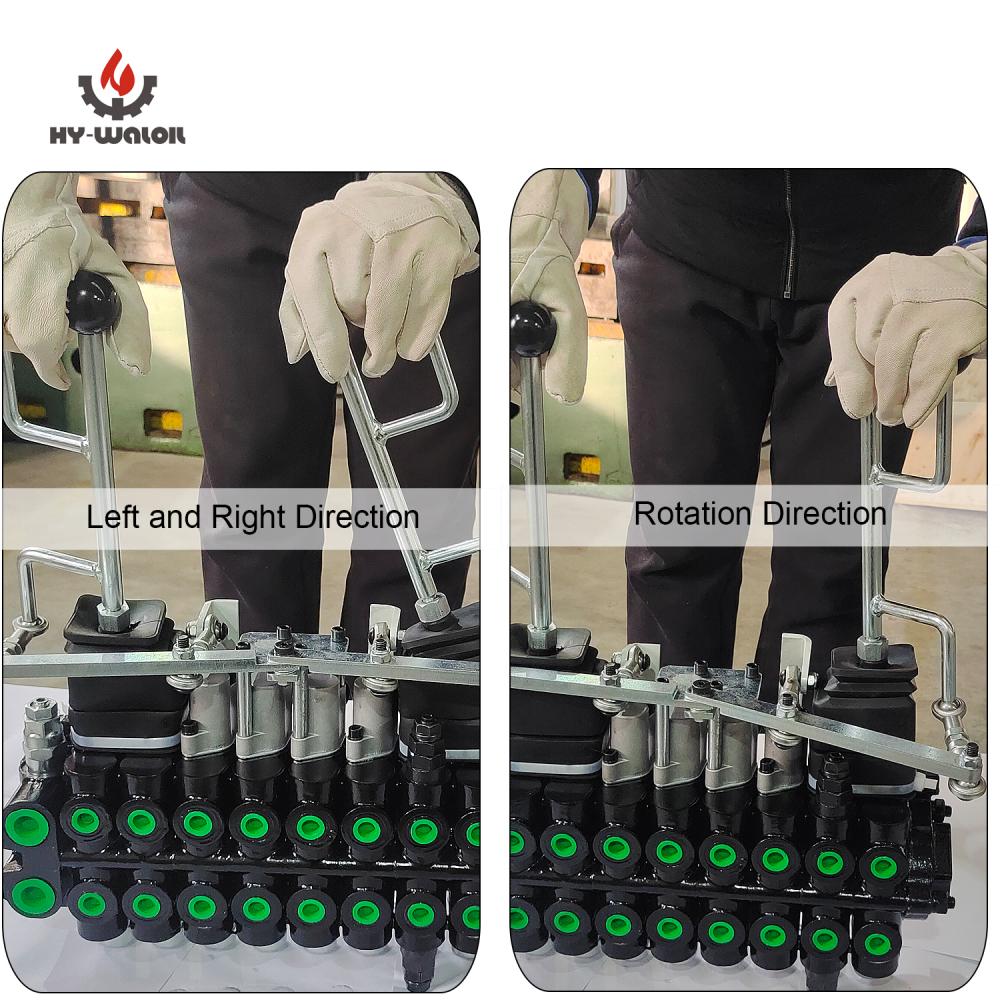

7. Ergonomic Handle Design: Available in two mounting options for ease of operation in any direction.
8. Parallel or Series Oil Circuits: The valve can be used in either configuration to provide a power source with excellent sealing performance.

Applications:

The CDB15 Series is widely used across a range of hydraulic systems, including agricultural machinery, forklifts, sanitation vehicles, transportation machinery, lifting and moving equipment, and construction machinery.

Why Choose the CDB15 Series?

• Customizability: Designed to be fitted with additional components such as overflow valves to meet specific needs.
• Versatility: Suitable for a variety of hydraulic systems in different industries.
• Reliability: Engineered to withstand high pressures and deliver consistent performance.
• Efficiency: High flow rate ensures that the valve can handle demanding workloads.
• Safety: Prevents oil backflow to protect machinery and operators.

For detailed specifications or to discuss how the CDB15 Series can be customized for your application, please contact us. We are dedicated to providing you with the highest quality hydraulic control solutions.
