100m/150m Laser Measuring Sensor RS232_JRT-Measure

100m RS232 Arduino Tof Sensor

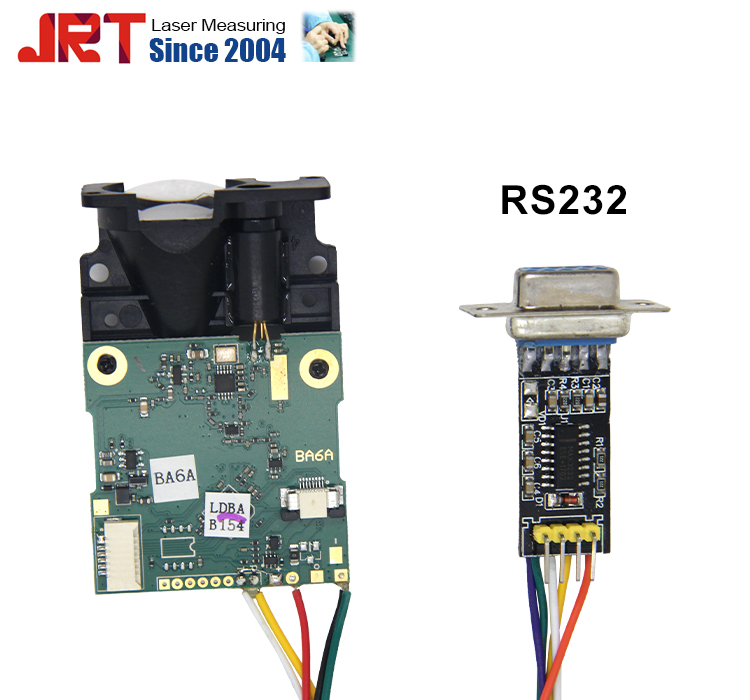

Our arduino tof sensor usually TTL serial output, you can choose RS232/RS485/USB/Bluetooth output. The sensor can exchange data with any upper computer through RS232 output.
The sensors of our company can choose different outputs.If you need high standard protection housing range sensor, we can provide IP54 and IP67.

Detailed Parameters
Model: 2BA6A20410R(b221024)
Measurement Range:0.03-100m
Frequency:3Hz
Accuracy:+/-3mm

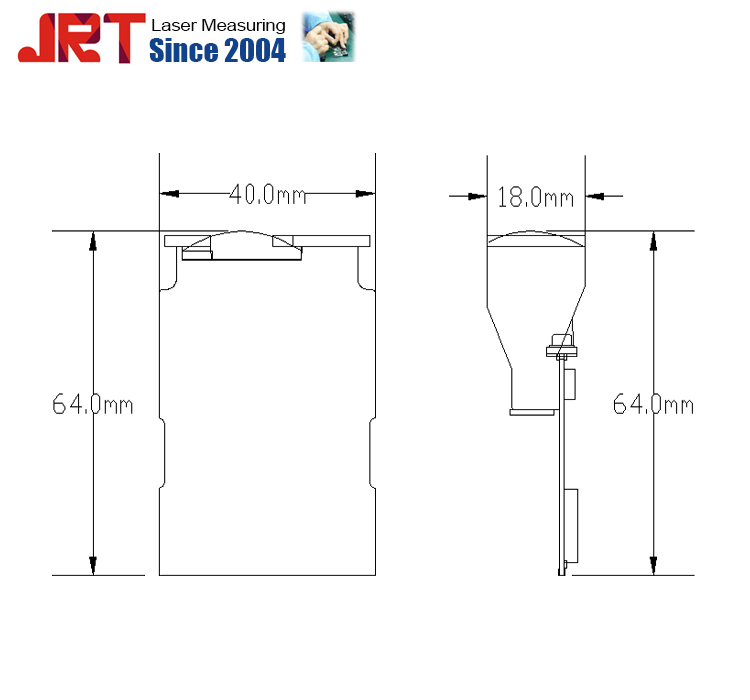

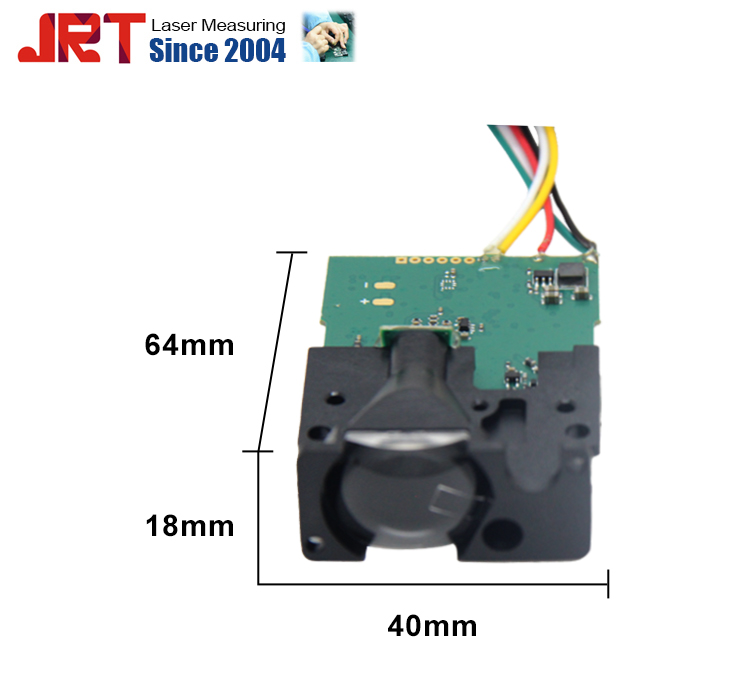

Size:64*40*18mm
Operating Temperature:0-40 ℃ （32-104 ℉ ）
Laser Class:Class II
Measuring Time:0.4~4 seconds
Laser Type:620~690nm, <1mW

How to work

Notes:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. Voltage can be changed by power converter LDO
4. Frequency would be affected by environment.
5. Operating temperature -10 ℃~50 ℃ can be customized.
6. Analog can be customized.

More Detailed Pictures:

Diagram for the Laser Distance sensor:

How to use your module to test?
There is a simple steps for you:
1. install the Gese software and USB driver on your computer.

2. Then you can send the related command to test

Communication
1.‘O’(0x4F): Turn ON laser beam, and return “,OK!”;
2.'C'(0x43): Turn OFF laser beam, and return “, OK!”;
3.'S'(0x53): Module status read, module returns Temperature & Battery Voltage, e.g.: “18.0’C, 2.7V”;
4.'D'(0x44): Auto mode Distance read.

Hardware Connections
1. Hardware Interface: 2 line USART(Rx, Tx);
2. Baudrate: 19200bps;
3. Data bits: 8b;
4. Parity: none;
5. Flow control: none.

Factory

How to ship

Chengdu JRT Main Ranging Modules: Industrial Laser Distance Sensors, Laser Rangefinder Sensor, Tof LiDAR Sensors.
