100Hz Raspberry Pi LiDAR Sensor 100m

The PTFS-100Hz raspberry pi LiDAR sensor is the latest version of high speed Tof Lidar Distance Sensor up to 100Hz. This is a ToF (Time of Flight) LiDAR module, which can be connected with your Raspberry Pi control system. With small size(43*35*21mm), the long distance sensor is capable of measuring the distance to a target from 3 m-100 m(about 10ft-330ft).

KEY FEATURES:
Measuring Range: 3-100m @20%reflectivity
Frequency: 100Hz
Accuracy: +/-1m
Blind Area: 3m
Resolution: 0.1m
Light: 905nm LD
Working voltage: 3.3V

It will be useful if you reply us. Some Parts description is as follows.

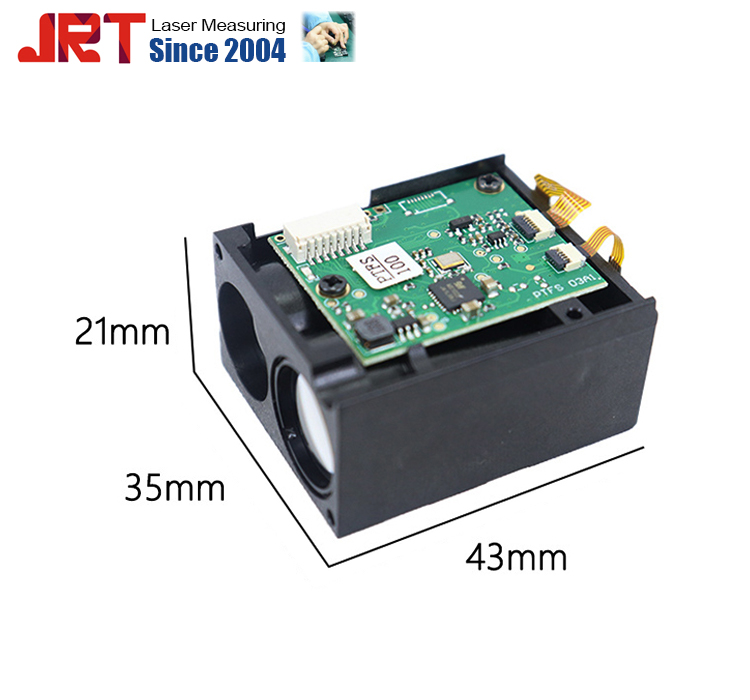

Size: 43*35*21mm
Distance: 3-100m

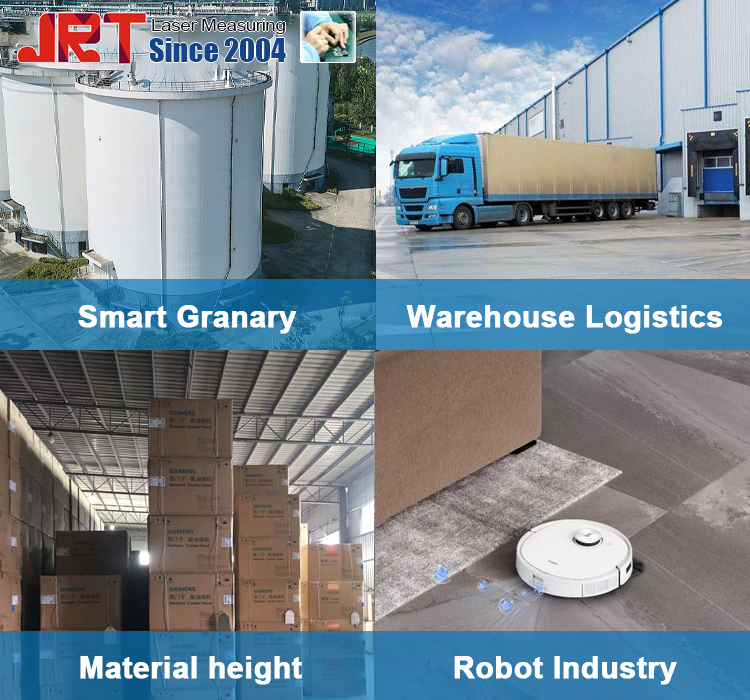

Applications: drones, robots collision avoidance etc.

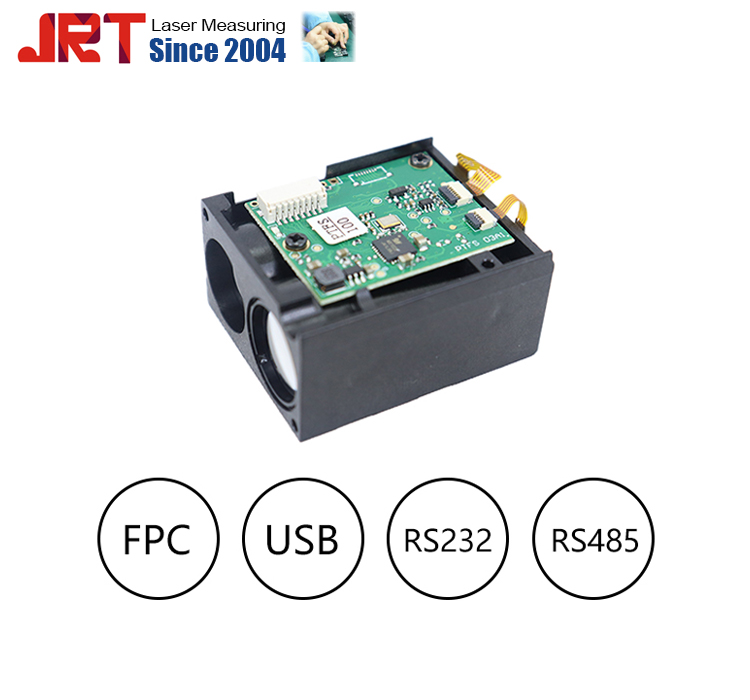

Four intterfaces can be selected:

Key parameters:

1. Reliable, fast, precise
Three interfaces optional: ttl, usb, rs232
Accuracy: +-0.5m~+-1m
High frequency: 100 Hz
2.Small, long range
Size:43*35*21mm
Measuring range, max up to 100 m

Detailed parameters

Model： TOFS01 / PTFS-100Hz(b220831h)
Accuracy： ±0.5m ~ ±1m
Resolution： 0.1m
Measuring Range： 3m-100m
Frequency： 100Hz
Blind Area： 3m
Laser type： 905nm laser
Working voltage： 3.3V
Working Current： 100mA
Volume: 43*35*21mm
Weight： 30g
Communication interface： TTL
Working temperature： -10 ℃ ～50 ℃

Storage temperature: -40℃~85℃

Notes:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. Frequency would be affected by environment.

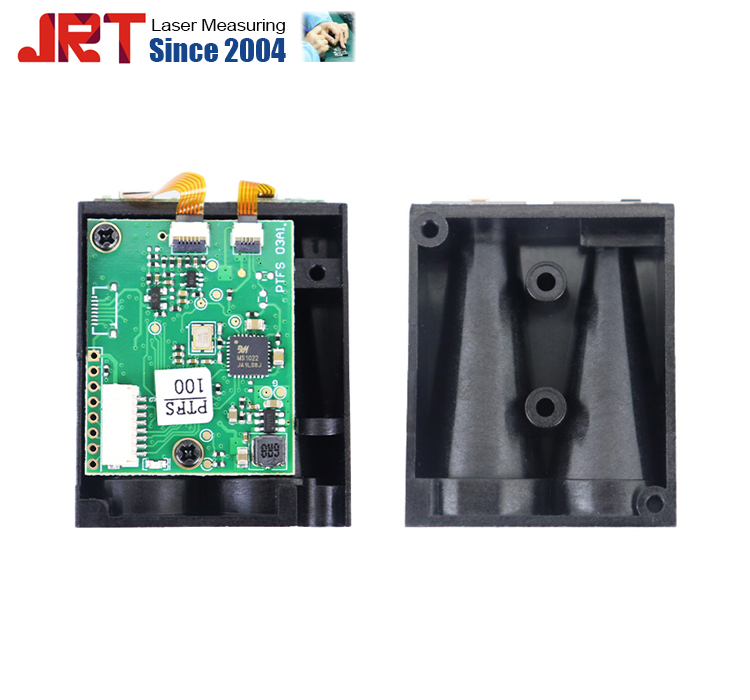

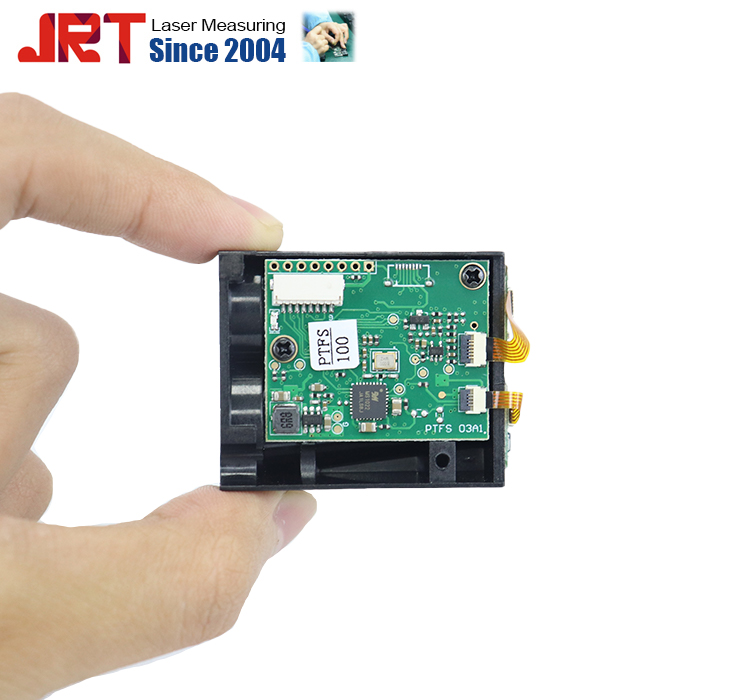

More Detailed Pictures:

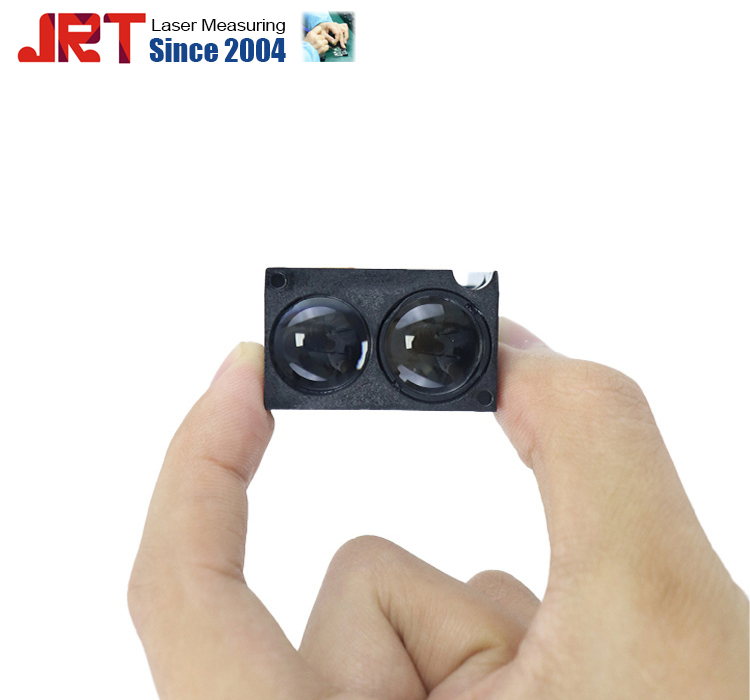

Detailed picture of lens
