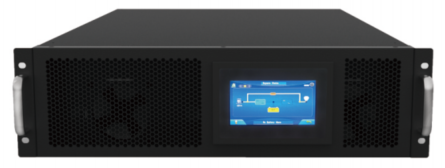

ULR33 Series Rack-Mounted Online UPS

Model

ULR33010KL

ULR33015KL

ULR33020KL

Capacity

10kVA

15kVA

20kVA

Input

Phase

3 Phase+Neutral+Ground

Rated Voltage

200/208/220Vac

Voltage Range

125-260Vac

Frequency Range

40-70Hz

Power Factor

≥0.99

THDi

≤3% (100% linear load)

Bypass

Voltage Range

Upper limit: 200V+25% (+10%, +15%, +20%, settable); 208V+20% (+10%, +15%, settable);

220V+15% (+10%, settable);

Lower limit: -45% (-10%, -20%, -30%, settable)

Frequency Range

50/60Hz±10%

Output

Phase

3 Phase+Neutral+Ground

Rated Voltage

200/208/220Vac

Power Factor

1

Voltage Regulation

±1%

Output Frequency

Normal Mode: ±1%/±2%/±4%/±5%/±10%, settable; Battery Mode: 50/60Hz±0.1%

Crest Factor

3:1

THDu

≤2% (linear load); ≤4% (non-linear load)

Overload

110% for 60 mins; 125% for 10 mins; 150% for 1 min; ＞150%, transfer to bypass

Battery

Rated Voltage

±96V/±108V/±120V/±132V/±144VDC(16/18/20/22 /24pcs), settable

Charging Current

1-10A

1-15A

System

Efficiency

94%

Display

4.3-inch color touching screen

IP Class

IP20

Interface

USB, CAN, RS485, Parallel card (optional), Relay card (optional), SNMP card (optional)

Temperature

Operation: 0-40℃; Storage: -25-55℃

Humidity

0-95% (non-condensing)

Altitude

＜1500m, within 1500-4000m, power derates 1% every 100m rise

Noise (1meter)

＜55dB

Physical

Weight

33

34

35

Dimension

W*D*H(mm)

440*735*131
