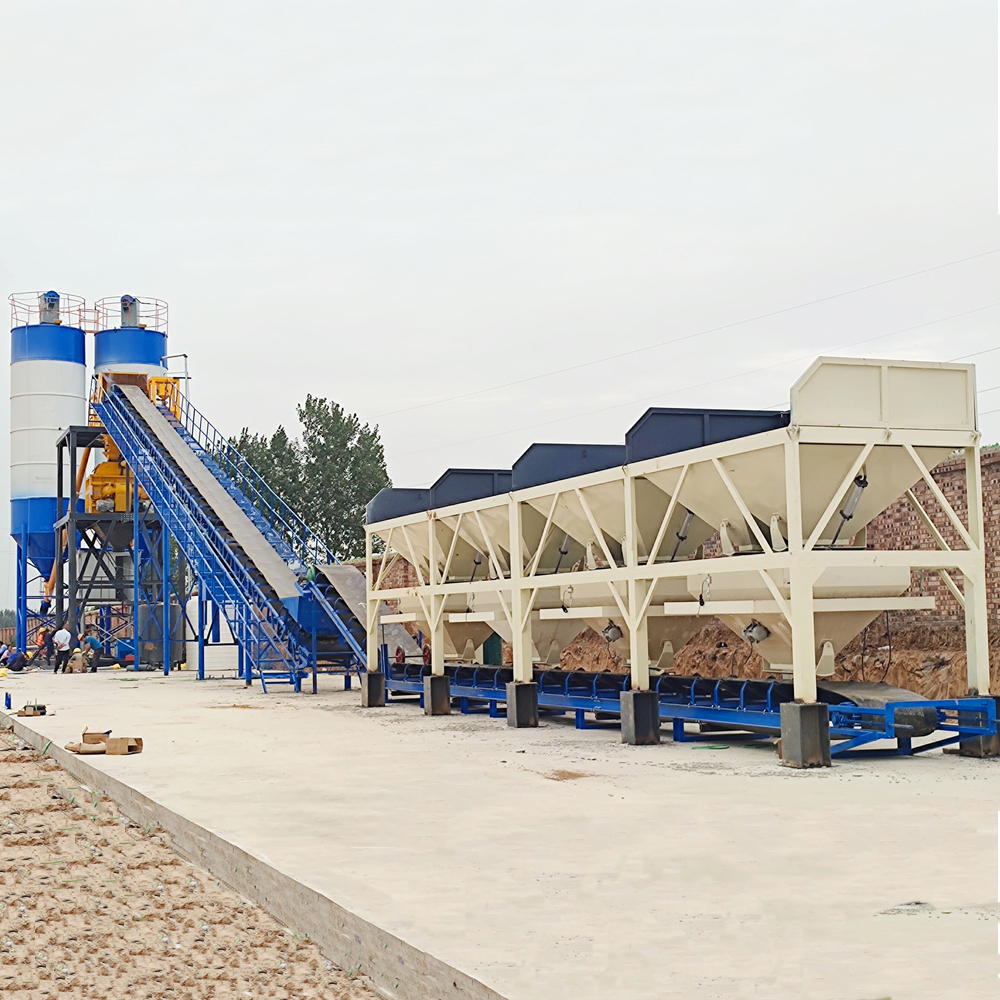

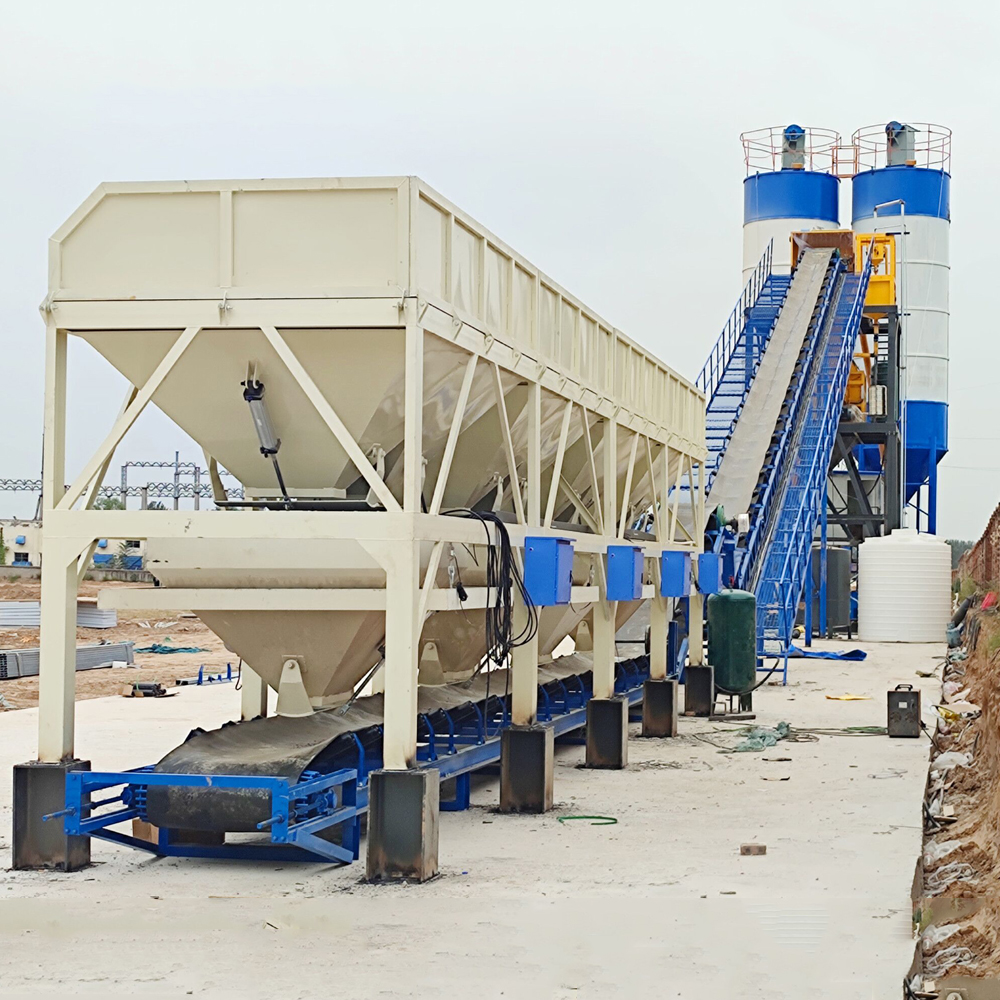

Medium Ready Mix Concrete Plant
Medium Ready Mix Concrete Plant is a combined unit used to centrally mix concrete. As a kind of electromechanical equipment, the Medium Ready Mix Concrete Plant will mix the materials such as cement, water, aggregates, admixtures, additives, etc. into the demanded product after measuring them according to the corresponding proportioning requirements. The significance of the existence of concrete mixing plant is to successfully alleviate the basic demand for concrete in production, reduce a large number of labor inputs, improve the production efficiency of concrete, and provide strong support for the rapid construction of the country's bridges, highways, airports, and other building facilities.Screw Conveyor and concrete mixer in concrete batching plant.
concrete mixing plant generally consists of batching system, storage system, feeding system, unloading and feeding system, unloading and discharging system, concrete mixing system, concrete mixing plant control system and air circuit system and other parts, corresponding to the production can be accomplished with timely weighing and transportation, delivery of aggregates and additives, unloading and taking out products, raw materials mixing, production monitoring and management, providing compressed air and other work processes.
main technical parameters:
|
Model |
HZS50 |
HZS75 |
HZS60 |
HZS90 |
|
|
Global parameter |
Max productivity (m3/h) |
50 |
75 |
60 |
90 |
|
Discharging height(m) |
4.2 |
4.2 |
3.8 |
3.8 |
|
|
Working cycle time(s) |
72 |
72 |
60 |
60 |
|
|
Installed capacity(kw) |
88 |
110 |
105 |
145 |
|
|
Concrete Mixer |
Model |
JS1000 |
JS1500 |
JS1000 |
JS1500 |
|
Batcher |
Model |
PLD1600 |
PLD2400 |
PLD1600 |
PLD2400 |
|
Pneumatic system |
Air compressor |
1.5–7 |
1.8–7 |
1.5–7 |
1.8–7 |
|
Discharge pressure(MPa) |
0.8 |
0.8 |
0.8 |
0.8 |
|
|
Displacement (m3/min) |
1.67 |
1.67 |
1.67 |
1.67 |
|
|
Motor power |
7.5 |
11 |
7.5 |
11 |
|
|
Measurement system |
Aggregate weighing accuracy |
±2% |
±2% |
±2% |
±2% |
|
Cement weighing accuracy |
±1% |
±1% |
±1% |
±1% |
|
|
Water weighing accuracy |
±1% |
±1% |
±1% |
±1% |
|
|
Additive weighing accuracy |
±1% |
±1% |
±1% |
±1% |
|
