60m RS232 Infrared Sensor Arduino Distance Meter
Hello dear all custoemrs,
Are you looking for a high-accuracy infrared sensor arduino? Yes, the 2M88B01-60m is a single-point measuring and accurate distance sensor up to +-1mm. You can have an option of RS232 interface with 5v supply, which can be easily tested on your computer. Also, it's a laser sensor that can be connected with Arduino(arduino distance meter). Up to 3Hz frequency make it have ability to test moving object.

Technical Features:
Accuracy: ± 1mm
Measuring Unit: millimeter
Measuring Range (without Reflection): 0.03-60m
Measuring Time: 0.4~4 seconds
Laser Class: Class II
Laser Type: 620~690nm, <1mW

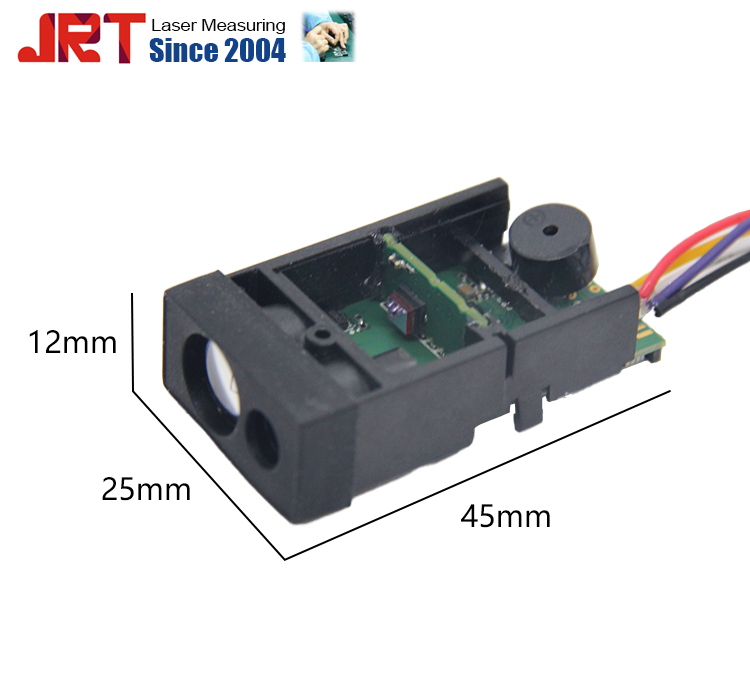

Size: 45*25*12mm
Weight: About 10g
Voltage: DC 2.5~3.3V
Operating Temperature: -10-50 ℃
Storage Temperature: -25~60 ℃

Note:

1.Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.
2.Under strong light or bad diffuse reflectance of target, please use a reflector.
3.60m can be customized.
4.Voltage can be changed by power converter LDO
5.Frequency would be affected by environment.
6.Operating temperature -10 ℃~50 ℃ can be customized.
7.Analog can be customized.

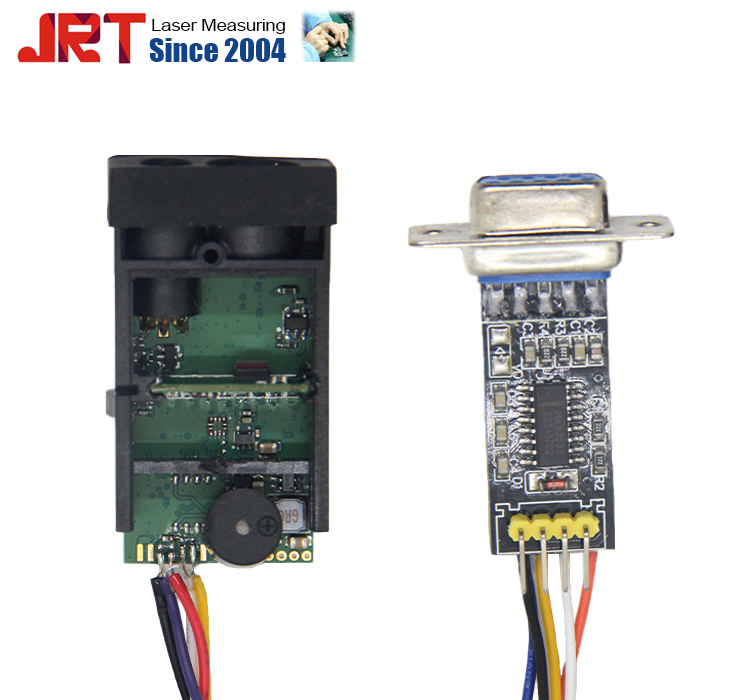

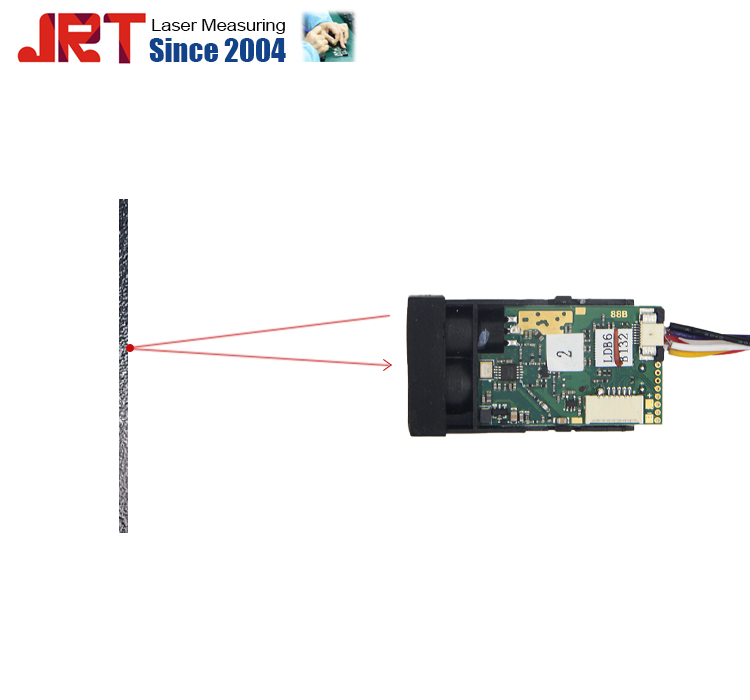

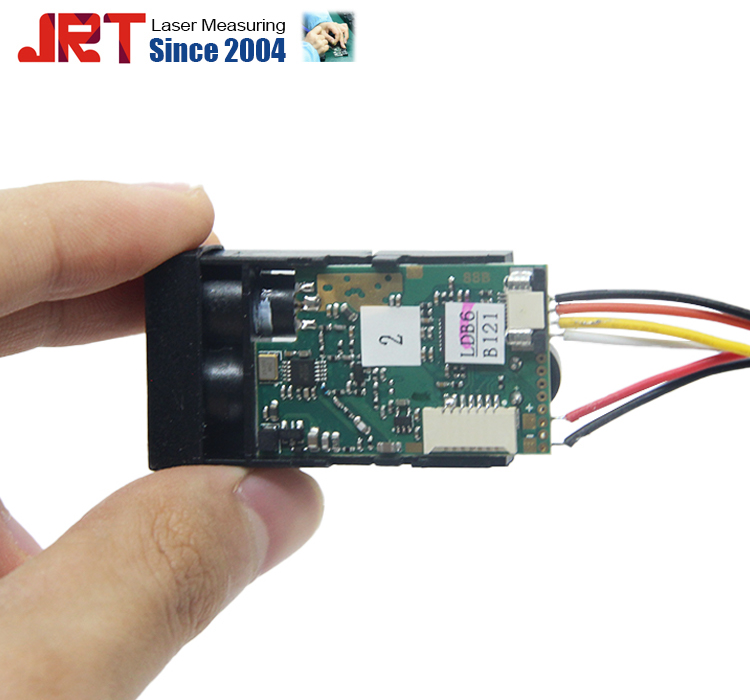

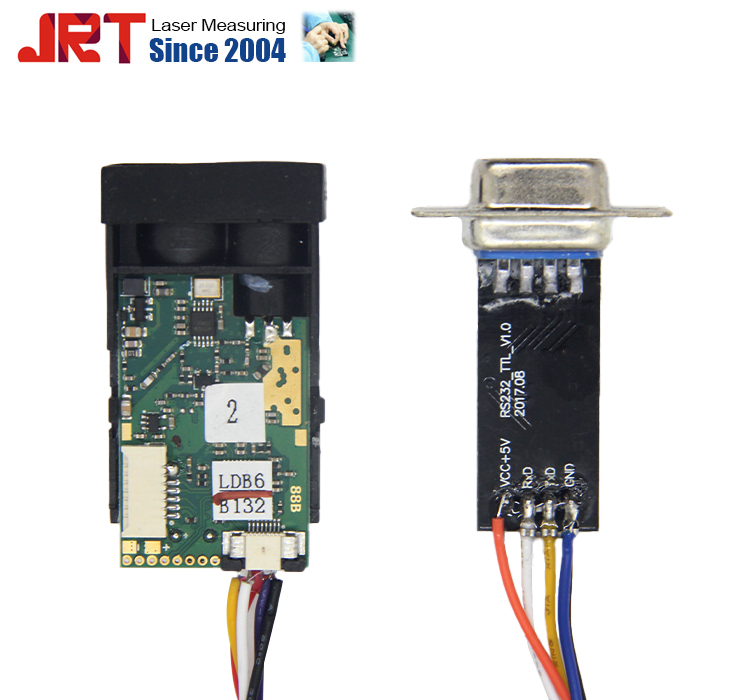

Product Pictures

FAQ
Q1: What`s the delivery time after an order placed for this sample Laser Distance Sensor?
A1: Our standard delivery is 3 days if we have stock, otherwise we will let you know in time. Usually we can manufacture 10,000pcs of laser distance modules a day and 2,000pcs LDM.
Q2: What`s the MOQ?
A2: Regular products only 1pcs, OEM/ODM products need 10000pcs at least.
Q3: What`s the warranty?
A3: All our products have one year guarantee and a life-time after sales service.
Q4: Can I have a sample for testing?
A4: Yes. We do not offer free samples, but will reimburse the buyer once an order is confirmed.

Application Area
JRT Laser Distance Sensor Module already widely used in many industrial area, like robot, warehouse logistics, safety system, Railway Monitoring, Agricultural Automation, construction, Industrial Automation, Intelligent Transportation, Truck Height,Drone, Archery, Engineering Survey, Golf, Interior Finish, Sports, Engineer,3D laser printer, crane, radar, lidar etc.
