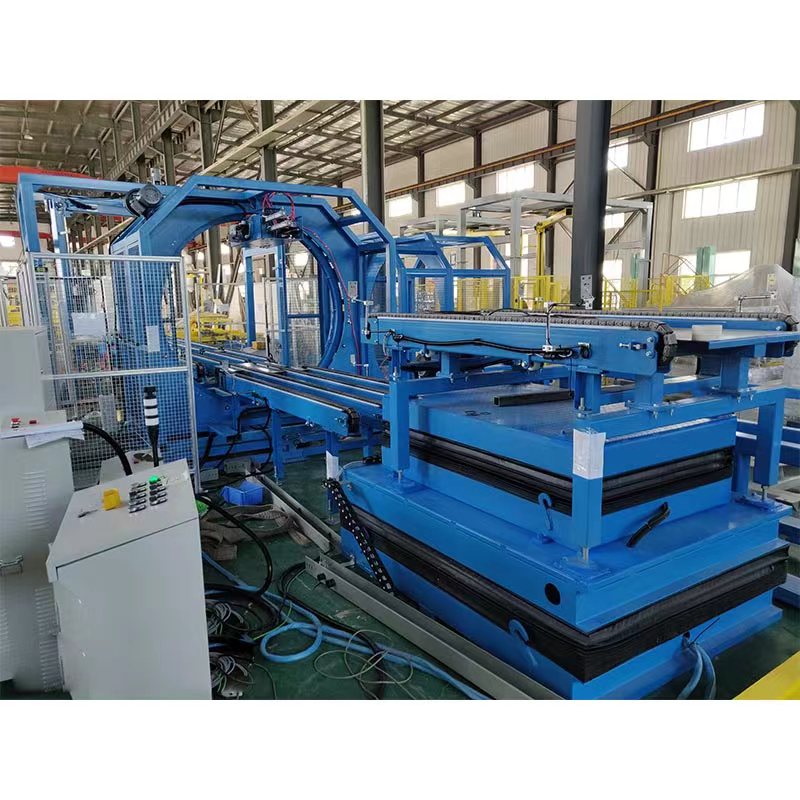

Automatic Horizontal Wrapping Packaging Machi

We offer a wide variety of options to meet your specific requirements. Each application is evaluated to provide the right solution to your needs.

Rotating ring

Inner diameter: 1800mm;

Rotating speed: max. 35RPM, frequency adjustable

Gearbox motor: 1.5kw;

Film carriage

Mechanical stretch film carriage

Width: 250mm;

Core size: 3’’;

Film roll diameter: max 240mm

Thickness: 14-35μm

Auto film feeding and cutting unit

Hold the film head on top of pallet for auto feeding;

Automatically cut the film after wrapping and hold film for the next pallet;

Pneumatic components: Festo brand

Air consumption: 1000ml

Air pressure: 0.4-0.6Mpa

Control System

PLC electric control system, touch screen panel

Ring rotating speed controlled by the inverter

Start and finish cycles are controlled by photocells

the wrapping layers, the wrapping cycles, and the time of top wrapping.

4-8 programs can be set in the PLC system for different packing options.

The safety command can be added on the control program, add PLC extension module to ensure the safety of the machine.

The operating parameter can be set on touch screen, more convenient for operation.

Photo-eye will detect the height and length of the pallet automatically.

Air resource with single direction valve to stop air release when pressure not steady.

The driving speed of rotary ring, conveyor can be adjustable individually.

The wrapping machine is powered with no wrap/manual/automatic wrapping switch function, in order to ensure the better operating.

The machine is equipped with running warning light.

Drawing reference:
