Pallet Wrapper Packing Machine Stretch Wrapping Ma
2 year ago
- Powered pre-stretch system up1:3.5 to min film consumption(Pre-stretch ratio can be specially made )
- Carriage door opens for effortless roll change and thread film
- Film delivery variable speed by separate AC Drive Motor.
- Heavy duty double-chain carriage lift, calm and safety.

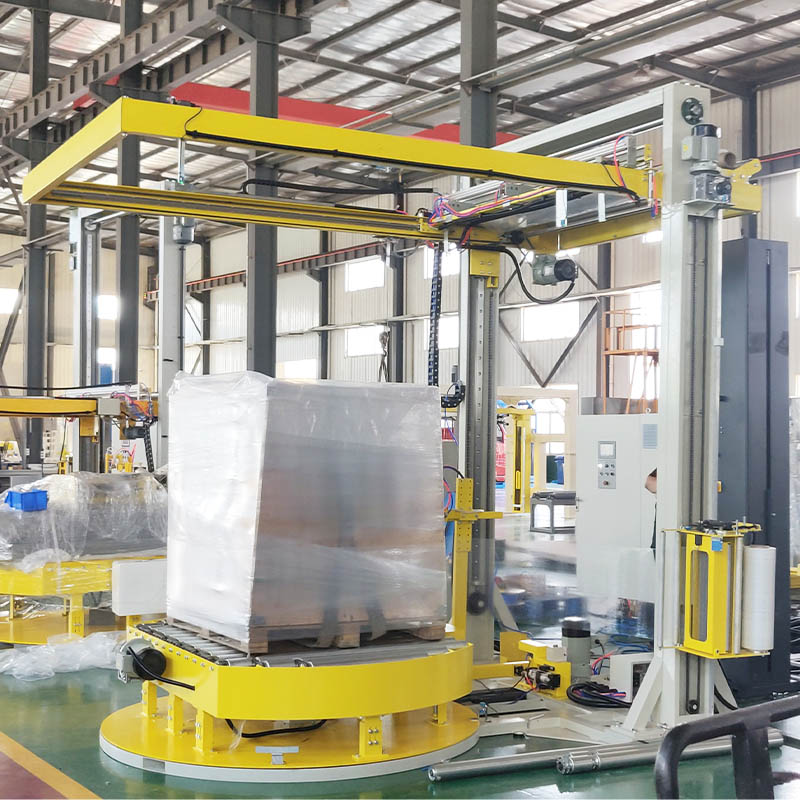

Automatic Pallet Wrapping Machine--T1800FZ-PL full automatic Pre-Stretch Wrapping Machine --Professional film packing machine. This packaging machine has been used in various packaging areas widely. Pallet packaging machine is used to wrap stretch film around a loaded pallet. Stretch film provides protection while the products are being transported& stored. Stretch wrapper is widely used in chemical industry, electronic industry, home appliances, foodstuff etc.
|
Item |
Specification |
|
wrapping size(mm) |
500-1200mm (L)×500-1100(W) |
|
Wrapping height (mm) |
2200mm |
|
Packing efficiency |
20-40 loads / hour |
|
Turntable turning speed |
0-15rpm (Adjustable, soft start&stop) |
|
Roller conveying speed: |
20mpm adjustable |
|
Turntable diameter |
1800mm |
|
Height of turntable |
To be designed based on customer requirements |
|
Power supply |
2.4KW 380V 50HZ 3Phase |
|
Max. load capacity |
1500kgs |
