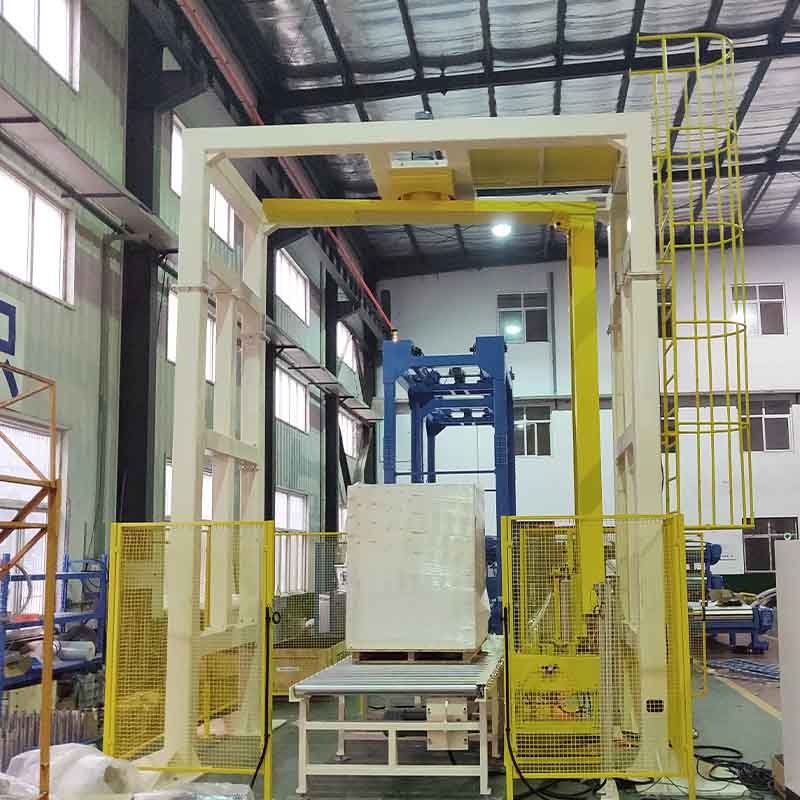

Automatic Rotary Arm Stretch Wrapping Machine

An automatic pallet stretch wrapper is a machine used to efficiently and securely wrap pallets with stretch filim. This type of machine is commonly used in warehouses, distibution centers, and manutacturing faciities to streamline the palet wrapping process and ensure that products are properly protected during storage and transportation.In addition to increasing efficiency, automatic pallet stretch wrappers also help to reduce waste by using the exact amount of stretch filmneeded to wrap each pallet, This not only saves money on materials but also helps to minimize the environmental impact ot packagingwaste.
Below is the details of products.

Technology data:

 Wrapping material:

Stretch wrapping film:           Core size: 3’’

Film width:                    500mm

Diameter:                     max 260mm

Thickness:                     14－35μm

One roll of stretch film to be supplied along with machine for trial running

2.2.3 Utility:

Compressed air

Pressure:            0.5-0.7 MPa

Dew point:          +2-+10℃  (7bar, +2-+10℃)

Filter:              40 µm

Air quality:         oil and water free air

Air consumption:    1000ml/min

Power supply:       380V (+/- 10%)/3phase/50Hz (+/- 1Hz)

Power installed:      ≈2kw

2.2.4 Supply scope

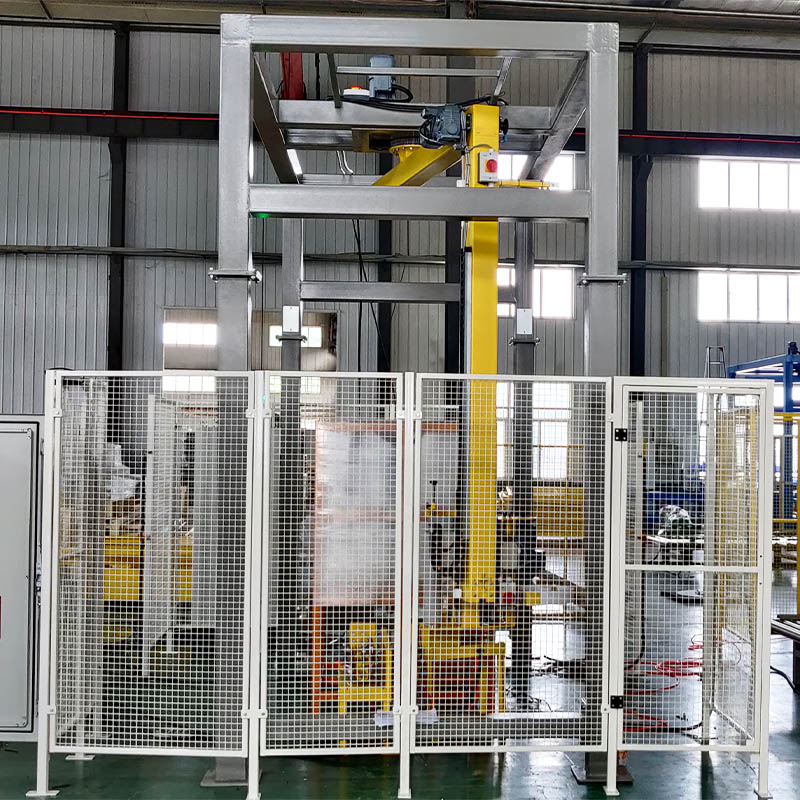

Machine main frame                                      1set

Gantry type frame, made of square steel tube, material: Q235 steel

Driving motor base is installed on the frame

The rotary arm are fixed on the frame connecting with slew bearing

Frame size: （to be confirmed by drawing）

Driving device for rotary arm                               1set

Frequency control motor with brake

Power rated: 1.1KW

Rotary arm speed: n=15rpm (frequency motor with brake)

Two position limits equipped on two ends of rotary arm.

Film carriage                                             1 set

Open-door type pre-stretch film carriage, stretch ratio 250% (1m to 3.5m)

Film carriage lifting driving: chain driving, good stability and high reliability

Driving reducer: worm gear reducer

Motor power: 0.37kw

Film carriage delivery device                          1set

The photoelectric switch is installed on the film carriage, automatic detect the height of the pallet

Driving motor: AC motor, speed adjustable

Power rated of film delivery driving motor: 0.37KW

Film delivery following up mechanism

The film delivery following up the rotary arm rotating, the proximity switch control the start/stop of film delivery motor to follow up the rotary arm

Film auto feeding and cutting device                    1set

When stretch wrapping finish, the film will be cut and clamped automatically.

When the film tail is released from the clamp, the air shooter will blow the film tail up, then the film tail will be wrapped by stretch film and keep it tightly with the pallet to ensure no film tail produced.

Film hot melt cutting adopts electrical heating wire to cut the film.

After film being cut, the hot sealer will seal the film tail automatically to ensure no film tail come out.

Pneumatic component: FESTO brand

Pneumatic control system                             1set

Air source required: the compressed air shall be supplied by end user to the inlet of the stop valve.

The pneumatic cylinder is controlled by control box.

Electrical control system                              1set

Sinolion standard control cabinet

PLC control system, the wrapping layers, the wrapping cycles, and the time of top wrapping can be set on HMI.

Safety command can be added on the control program, add PLC extension module to ensure the safety of the machine.

Photo eye will detect the height and length of the pallet automatically.

Air resource with single direction valve to stop air release when pressure not steady.

The driving speed of rotary arm, chain conveyor, film carriage lifting are adjustable individually, the film delivery speed is also adjustable, wrapper alarms when film break.

Powered with pause/manual/automatic wrapping switch function, in order to ensure the better operating.

Air source required: the compressed air shall be supplied by end user to the inlet of the stop valve.

Safe guard fence with light curtain                      option

The frame is equipped with safety guarding device and safety fence, the lock of safety fence interlocked with the main machine.

When the safety door opens, the machine will stop automatically.

Light curtain brand: Schmersal.

Maintenance platform                                option

Used for the operator to climb to the top to do the maintenance.

The safety guard fence can effectively protect the personal safety.

The maintainer can stand on the maintenance platform to execute their work.
