Cardboard Raw Paper Roll Handle Transporter Paper
2 year ago
This machine should be installed in a dry place where there is no dust, no leaking, no flammable or explosive chemical preparations or other corroding chemicals. The surrounding temperature should range from –10 to 50oc.
2.5 Mechanical parts assembly
2.5.1 Place the turntable part of this machine on a level floor.
2.5.2 Install the ramp (optional, purchase separately) on the same level as the turntable; make sure that it is convenient for the loading and unloading of goods.

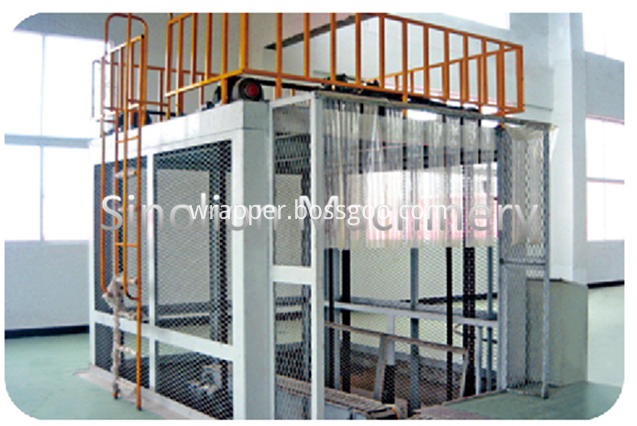

Auto Paper Roll Vertical Elevator
Before starting the wrap test and load set-up please make sure that you have read and understand the manual and know well the function of the button on the control panel. After the machine has been correctly installed in its designated operating location and is ready for initial testing, please follow these steps before wrapping your first load.
Lifting the rolls from the second floor to the first floor, and the roll travel out through slat conveyor. Packaging efficiency: 40-60.
|
Step 1 |
|
Turn on the power, make sure Emergency Stop is released. |
|
Step 2 |
|
Test the turntable by activating the Turntable jog switch. Check if the turntable is running correctly. If there is no problem, continue to jog the turntable around until it is back to its designated home position. |
|
Step 3 |
|
Manually operate the film carriage up. Make sure the direction is correct, and that the limit switch stop the carriage. |
|
Step 4 |
|
Manually operate the film carriage down. Make sure the direction is correct, and that the limit switch stop the carriage. |
|
Step 5 |
|
Load the film roll and thread the film to make sure the film stretch unit is operating correctly (See notes on threading the film). |
|
Step 6 |
|
Attach the film at the bottom of the load. |
|
Step 7 |
|
Set the desired number of Top wraps, Bottom Wraps & Cycle |
|
Step 8 |
|
Press the Auto-start button and watch that all operations are functionally correctly. |
