Screw Conveyor For Powder Packaging
The screw conveyor has the advantages of simple structure, small volume, good tightness, safe and convenient operation, low manufacture cost.
Technical Parameter
|
Model |
LSY200–6 |
LSY200–8(9) |
LSY250–8(9) |
LSY300–9 |
|
Screw diameter(mm) |
185 |
185 |
237 |
305 |
|
Conveyor distance(m) |
6 |
8(9) |
8(9) |
9(12.5) |
|
Screw speed(r/min) |
100 |
100 |
90 |
80 |
|
Body diameter(mm) |
Φ219 |
Φ219 |
Φ273 |
Φ325 |
|
Delivery angle |
≤45° |
≤45° |
≤45° |
≤45° |
|
Conveyor capacity(t/h) |
35 |
35 |
45 |
75 |
|
Motor model |
Y132S–4 |
Y132M–4 |
Y160M–4 |
Y180L–4 |
|
Motor Power(kw) |
7.5 |
11 |
15 |
18.5 |

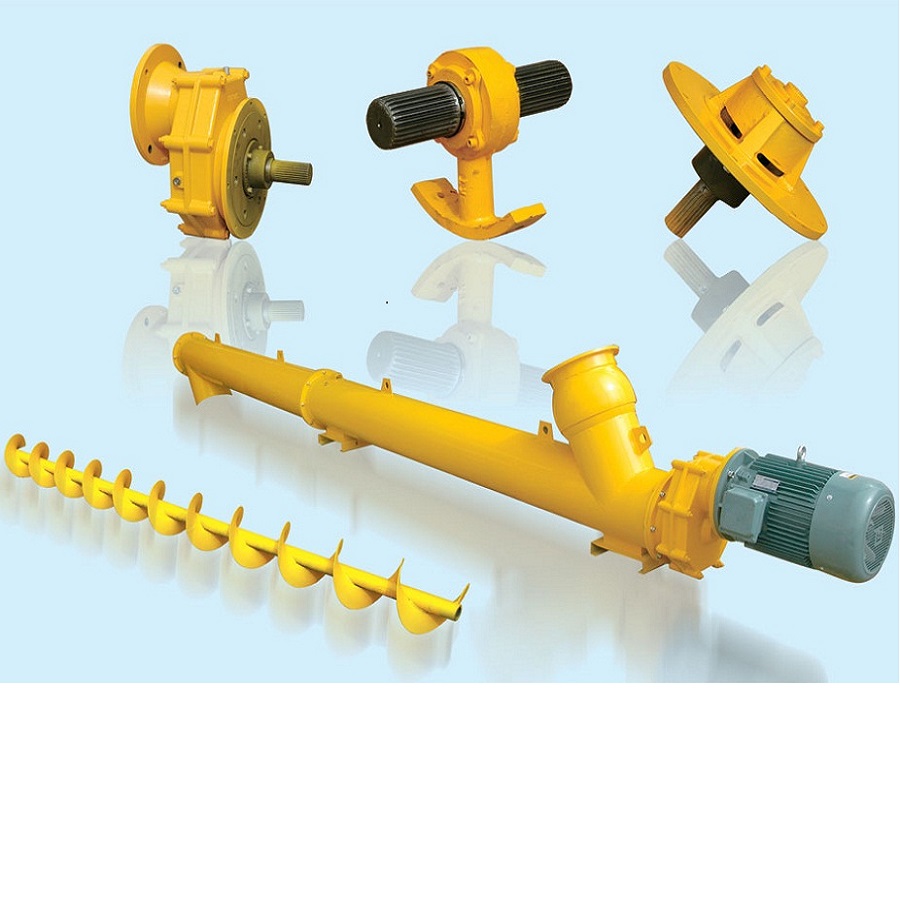

Screw conveyor composition:
feed inlet, discharge opening, electric motor, retarder, bearing, helical blade, closed trough, hanging bearing, bearing spiral, cardan joint, suction flange, outer tube, connection flange, observation window, the pedestal, etc.
The standard assembly makes it more convenient to transport.
The screw conveyor has the advantages of simple structure, small volume, good tightness, safe and convenient operation, low manufacture cost.
Screw conveyors for concrete batching plants
