Concrete mixer truck is a special vehicle used for transporting and mixing concrete. The vehicle usually consists of a chassis, an engine, a mixing drum, a hydraulic system and a control system, among which the mixing drum is one of the most important parts of the vehicle.

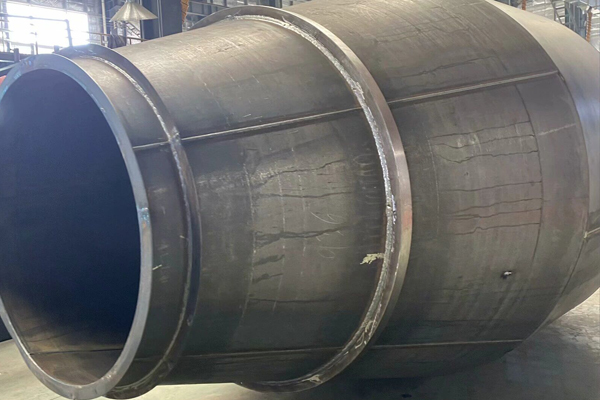

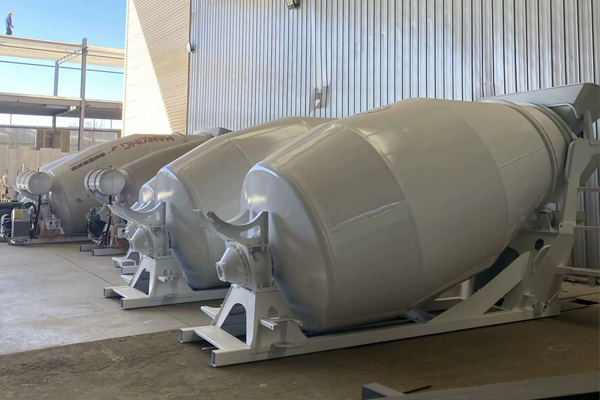

The concrete mixer drum is a specially designed cylindrical container, usually made of high-strength steel to ensure its stability and durability during transportation and mixing. The capacity of the drum can vary according to the need, and is usually divided into 3 cubic meters, 5 cubic meters, 6 cubic meters and other specifications. The drum on a concrete mixer truck usually consists of a large inlet, an outlet and an observation window.
The drum on a concrete mixer truck is a key component that provides a safe and reliable container to transport and mix concrete. Its special design and features allow the concrete to remain stable during transportation and to be evenly mixed when needed to meet the concrete needs of a construction site.
concrete mixer truck and concrete mixing pump
Parameters：
|
Model |
Drum conveying capacity（m3） |
Geometric area of Drum |
Filling ratio |
Rotating speed of drum |
Axis inclination |
Height of inlet（m） |
Minimum height of outlet（m） |
Overall dimensions（mm） |
|
HJC-6 |
6 |
8.96 |
0.67 |
5-12r/min |
16°±15` |
2.59 |
1 |
5800×2600×2650 |
|
HJC-8 |
8 |
13.7 |
0.67 |
5-10r/min |
16°±15` |
2.59 |
1 |
8254×2496×3850 |
|
HJC-10 |
10 |
16.7 |
0.67 |
14r/min |
16°±15` |
3.70 |
1 |
8935×2496×3875 |
|
HJC-12 |
12 |
20.5 |
0.67 |
14r/min |
16°±15` |
3.70 |
1 |
9800×2496×3920 |
