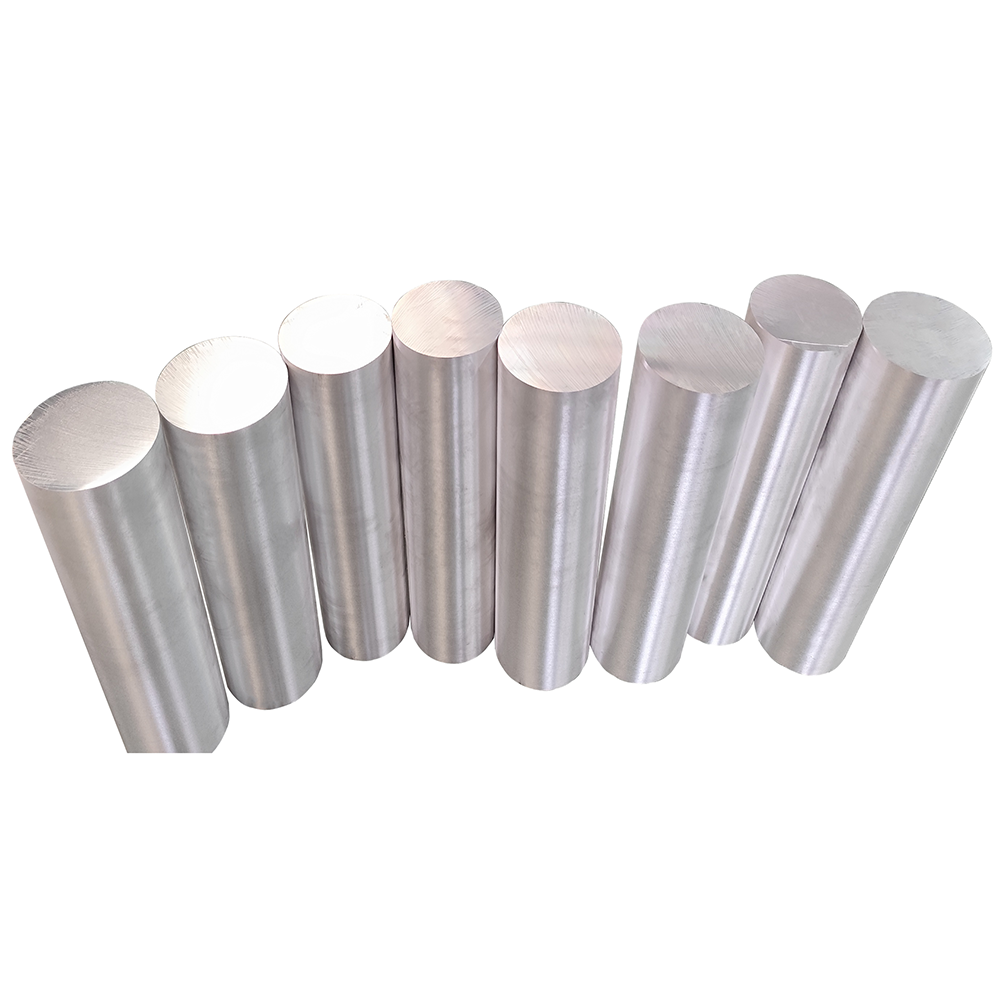

Extruded Magnesium Alloy Rod
9 month ago
There are several types of magnesium alloy rods such as Casting Magnesium Alloy Rod, Extruded Magnesium Alloy Rod, Forged Magnesium Alloy Rod, etc. ZK61M is one kind of magnesium alloy.
The chemical composition of ZK61M
Al < 0.05;
Be < 0.01;
Cu < 0.05;
Fe < 0.05;
Mn < 0.1;
Ni < 0.005;
Si < 0.05;
Zn 5.0 - 6.0;
Zr 0.3 - 0.9;
Other elements < 0.3;
Room temperature tensile mechanical properties
| Brand | status | Bar diameter (square bar, hexagonal bar inner cut circle diameter)/mm |
Tensile strength (Rₘ)
MPa
|
Specify the non-proportional elongation strength (Rₚ₀. ₂)
MPa
|
Elongation at break (A)
%
|
| ZK61M | T5 | ≤100 | 315 | 245 | 6 |
| >100-130 | 305 | 235 | 6 | ||
| Note: The mechanical properties of bars with a diameter greater than 130mm are based on measured results. | |||||
ZK61M Extruded Magnesium Alloy is a reinforced magnesium alloy which is mainly enhanced by the addition of zinc (Zn) and zirconium (Zr). The alloy belongs to the magnesium-zinc-zirconium series and is characterized by trace additions of zirconium to the zinc, which enhances its strength and hardness.ZK61M is usually used after heat treatment to achieve higher performance standard
