5000m Long Range Laser Distance Sensor

The PTF-LD50X long range laser distance sensor for 5000 meters long measuring ranges with high accuracy, which is an extremely useful solution in the industrial sectors of Autonomous vehicle/Vehicle safety system, Geological exploration, Drone height location. The long range sensor is available with TTL, USB, RS-232, RS-422 protocol. Are you interested in our long laser range finder sensor? Welcome to inquiry.

best rangefinder for long range shooting

Technical Parameters:

Operating wavelength: 1535nm ±10nm

Eye-Safe: Class 1 (IEC 60825-1)

Receiving Aperture: Φ25mm

Range: 5000m

Communication Interface: RS422 / TTL(Customizable)

Humidity: ≤ 70%

Ranging accuracy: ±1m

Accuracy rate: ≥98%

Divergence angle: ≤0.4mrad

Continuous ranging time: ≥30min

Non-parallelism of the laser optical axis to the mounting reference <0.3mrad

Ranging frequency: 1~10hz

Electrical

Voltage: 9-15V

Power consumption Standby:<1.5W; Rated:<3.5W; Peak:<7W

Physical characteristics

Dimensions: about 54mm×33.25mm×43.5mm

Weight: about 75g

Environmental

Working temperature: -40℃~+70℃

Storage temperature: -50℃~+75℃

Machinical Dimensions

Front & Lens

Applications

This Industrial Laser Range Sensor can be widely used in agricultural forestry, electricity/power inspection, safety supervision, urban management, security, fire protection, geological exploration etc.

long range laser distance sensor arduino

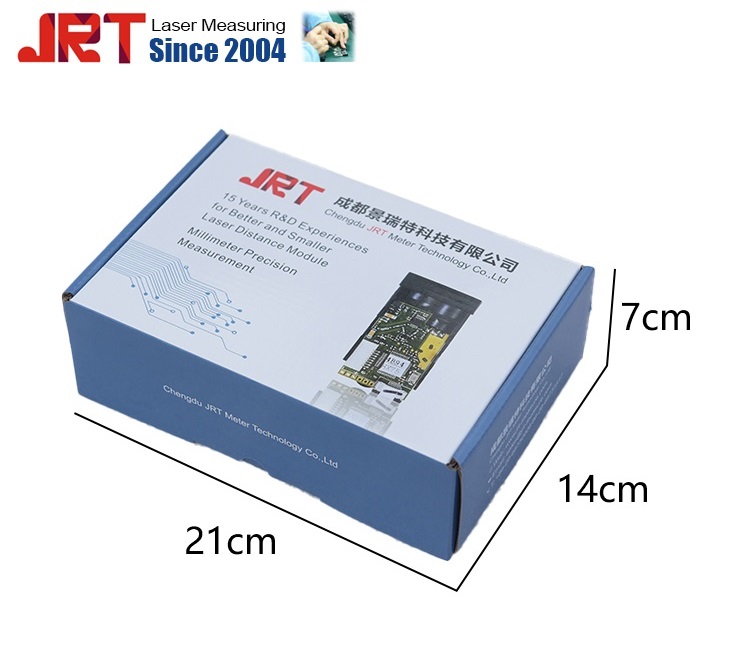

Packaging

long distance sensor arduino

Chengdu JRT Main Smart Devices: Industrial Laser Distance Sensors, Rangefinder Sensor , Tof LiDAR Sensors, Measuring Tool Instruments.
