60m LED Display Mid-range Laser Meter Module

Good Day,

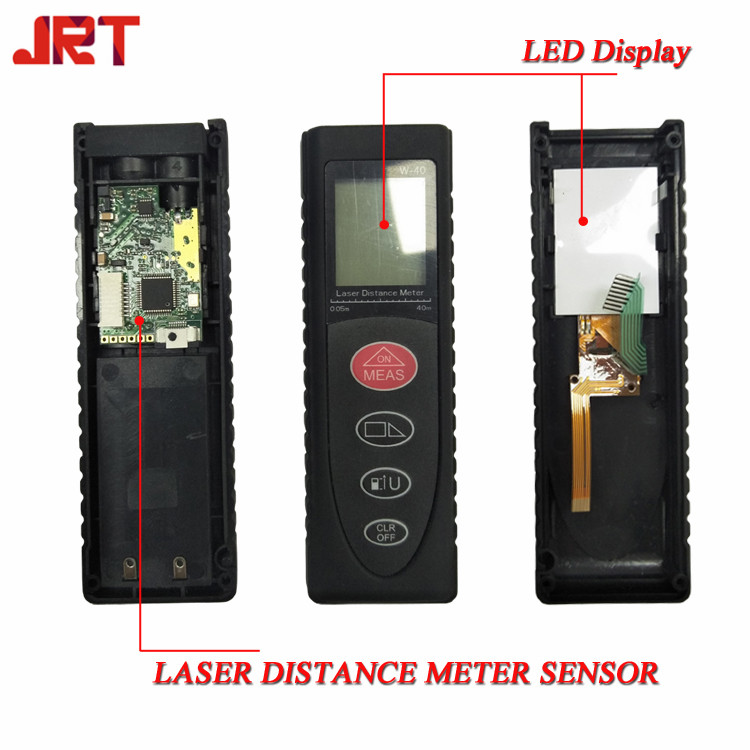

Here is brief introduction, JRT Laser Meter Module is designed for handheld laser distance meter, it can measure 0.03-60m. Usually,customers will order two or three samples testing first. For sample order, we will weld a led display and a battery box for you, so you can test very conveniently. The M88B model is our update version of 703A, according to it can measure longer but small size, more and more customers prefer to choose for the mid-range series laser rangefinder.
If you need share more CAD details with you and the best earliest competitive prices on priority basis and making sure that the offer is just exclusively for you as the market is quiet competitive. Please contact us, and tell us more of your company to help.
Any further question is welcome for our prompt response to proceed accordingly well before time for submission of request documents.

Laser Distance Meter Sensor Feature:
1. Good for handy laser distance meter
2. Support single measurement/continous measurement
3. You can cusomize the different colors and cases as your requirements

Specifications of Industrial Laser Distance Sensor:

Range: 3cm-60 meters
Invisible measuring: 620nm-690nm
Measuring accuracy: +-1 mm
Measuring frequency: Up to 3 Hz
Laser type: Class 2, red

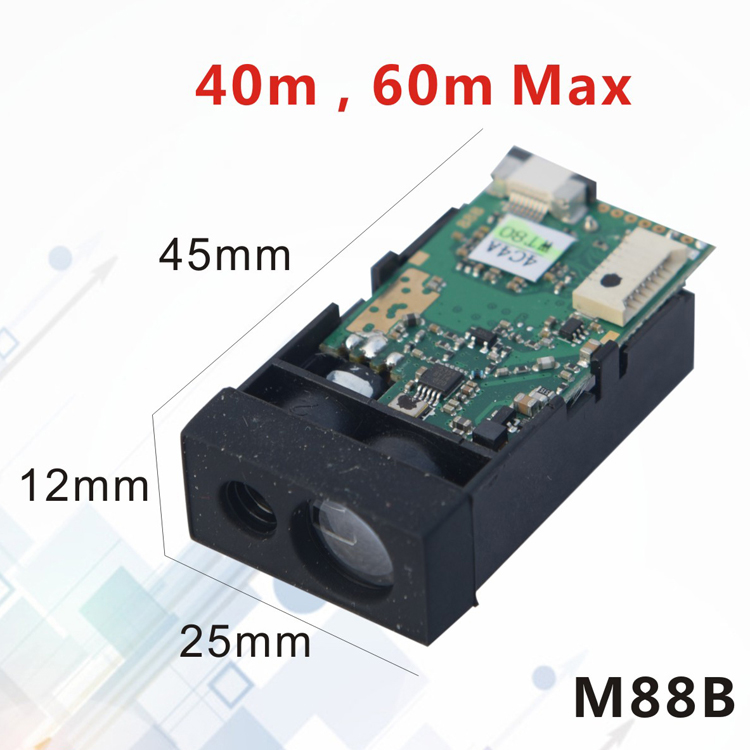

Size: 45*25*12mm
Working temperature: 0 ~ 40 degree
Storage temperature: -25 ~ 60 degree
Some advices:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. 60m can be customized.
4. Voltage can be changed by power converter LDO
5. Frequency would be affected by environment.
6. Operating temperature -10 ℃~50 ℃ can be customized.
7. Analog can be customized.

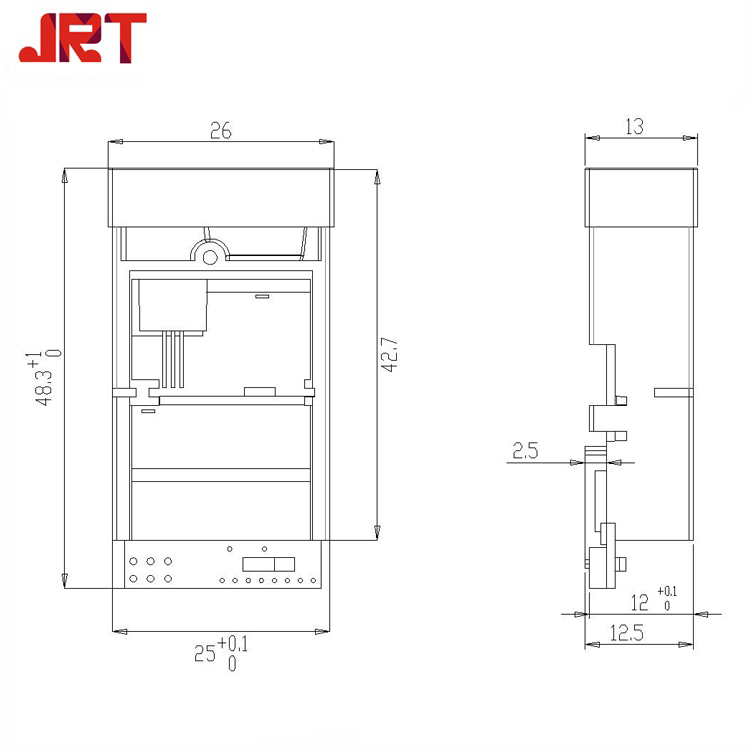

Laser Meter Module Diagram

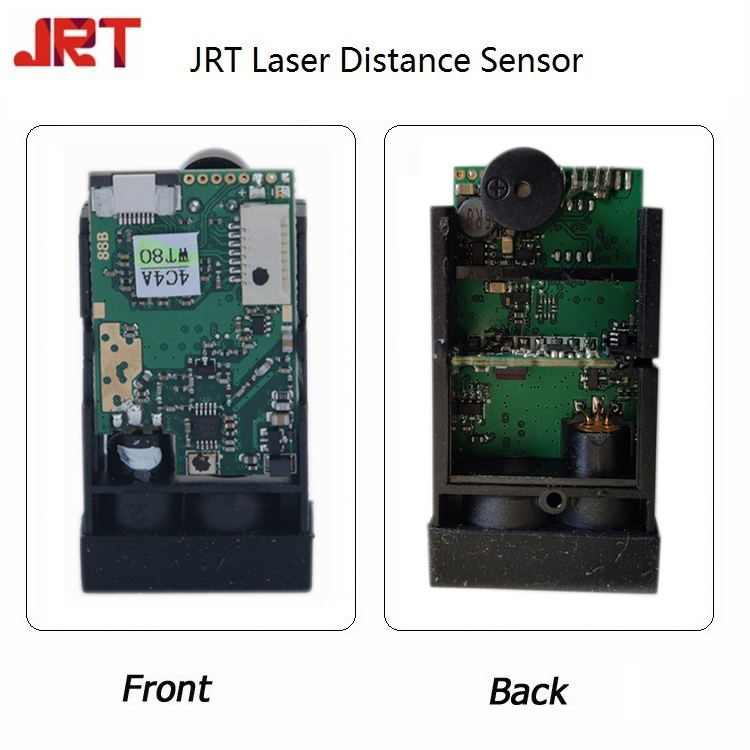

Detailed Pictures

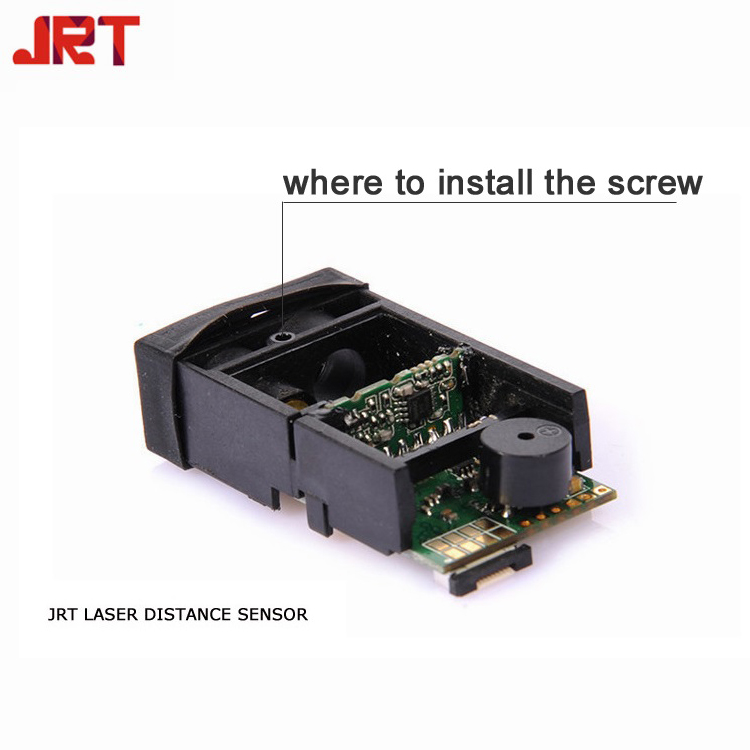

Where to install the screw Laser Meter Module

Laser Meter Module Application

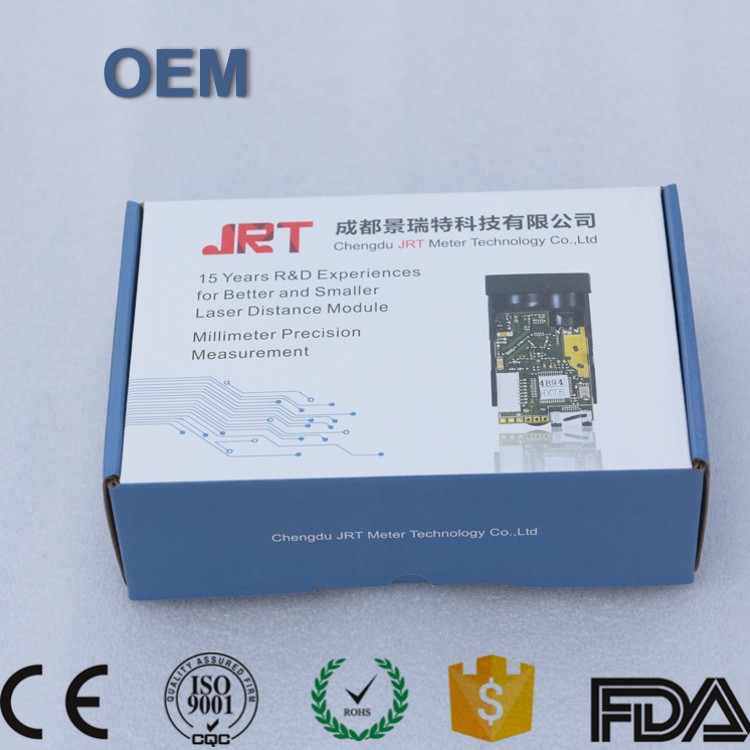

How to package your laser distanc sensor?

About us

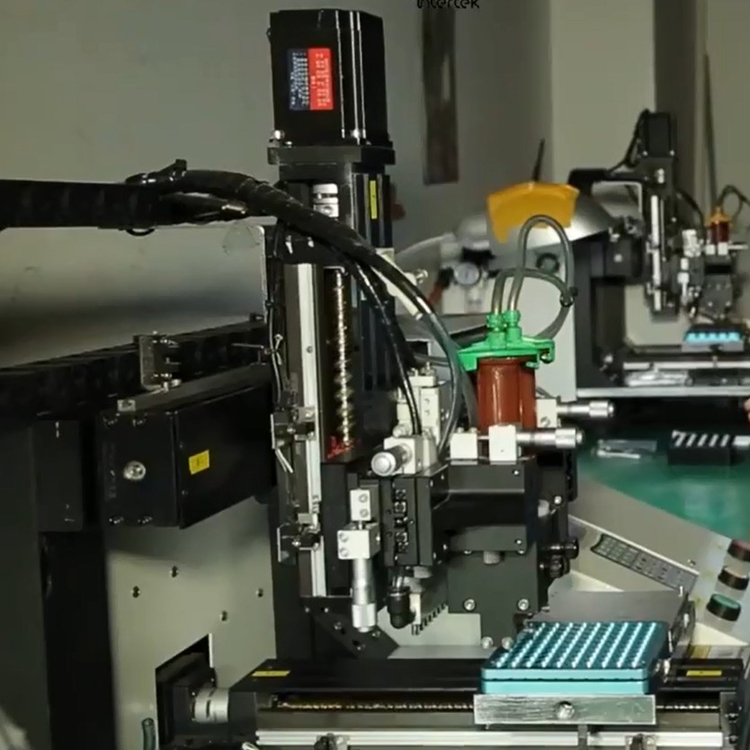

JRT production capacity upgrades greatly, with advanced technical device
