3/4 Inch Goyen Type Pulse Valve CA20T010-305 24VDC

This is CA20T Goyen Type Pulse Jet Valve; Reference No: CA20T000, CA20T001, CA20T010, CA20T000-300, CA20T000-305, CA20T000-331, CA20T001-300, CA20T001-305, CA20T010-300, CA20T010-305. 3/4'' inlet and outlet threaded port size; NBR diaphragm; 24V DC, 110V AC, 120V AC, 220V AC, 230V AC (50/60Hz) voltages for you to choose; other voltages can be customized.

Goyen Type Pulse Jet Valves:
1. Threaded Pulse Jet Valve: CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T
2. Dresser Nut Pulse Jet Valve: CA25DD, RCA25DD, CA45DD
3. Immersion Pulse Jet Valve: CA50MM, CA62MM, CA76MM, CA89MM
4. Flanged Pulse Jet Valve: CAC25FS, CAC45FS
5. Remote Pilot Pulse Jet Valve: RCA3D2, RCA25DD, RCA45T, RCA50T

Technical data of T Series Pulse Jet Valve:

Model No	CA15T	CA20T	CA25T	CA35T	CA45T	CA50T	CA62T	CA76T
Nonimal size	φ15	φ20	φ25	φ35	φ45	φ50	φ62	φ76
Port Size	G1/2''	G3/4''	G1''	G1 1/4''	G1 1/2''	G2''	G2 1/2''	G3''
Working pressure	0.3-0.8MPa
Temp. range	-5℃ - 55℃
Relative humidity	≤85%
Working medium	Compressed clean air
Service life	Over 1000000 times
Voltage	DC24V, AC24V, AC110V, AC220V

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Coil and Solenoid Valve Armature Assembly.

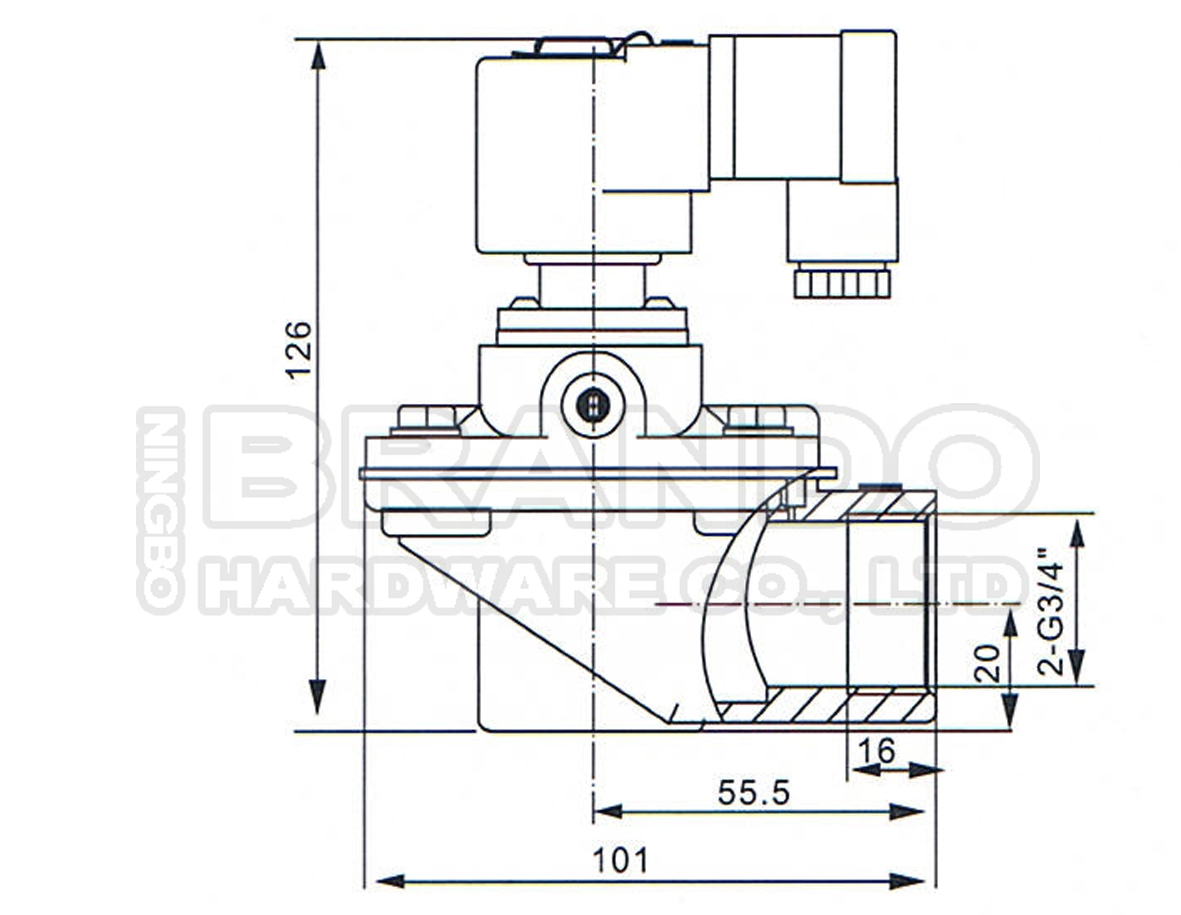

Main dimension of 3/4'' CA20T Pulse Jet Valve:

CA20T

List of All Goyen Type Pulse Jet Valves:

Thread Valve	1/2''	3/4''	1''	1.5''	1.5''	2''	2.5''	3''
	CA15T	CA20T	CA25T	CA35T (Single Diaphragm)	CA45T (Double Diaphragm)	CA50T	CA62T	CA76T
Dresser Nut Valve	1''				1.5''
	CA25DD				CA45DD
Flange Valve	1.5'' Inlet				2'' Inlet
	CAC25FS				CAC45FS
Immersion Valve	φ60 Outlet		φ75 Outlet		φ89 Outlet		φ86 Outlet
	CA50MM		CA62MM		CA76MM		CA89MM
Remote Pilot Valve	1/8''		1''		1.5''		2''
	RCA3D2		RCA25DD		RCA45T		RCA50T

Brando Supply:

*SBFEC Type Pulse Jet Valve *Goyen Type Pulse Jet Valve *ASCO Type Pulse Jet Valve *Other Dust Collector Valve

*Solenoid Valve Coil *Solenoid Armature/Stem *Diaphragm Repair Kit *Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
