IP54 protection LiDAR<S91-10m(b1210126n1)> is JRT 2022 new short range product, but a ip54 water resistant. With RS485 communication, the measurement close the distance data can be transmitted even in a hundred long distance. This 10m LiDAR Sensors have a good sale in the first batch sample trial. Welcome to contact for details.
Highlights
1> IP54 Waterproofness and Dustproof
The measurement sensor is designed to protect from rain or dust.
2> Multifunctional Mode
Looking for 10m distance sensor? Yes, S91-10m(b1210126n1) is a close range LiDAR sensor that can measure from 0.03m to 10m.  And it supports single measurement and continuous measurement mode.

Key parameters:

1. Reliable, fast, precise
Three interfaces optional: ttl, usb, rs232, rs485 etc.
Accuracy: +-1mm
Measuring time: 0.4s-4s
2.Small, long range
Size:41x17x7mm
Measuring range up to 20 m

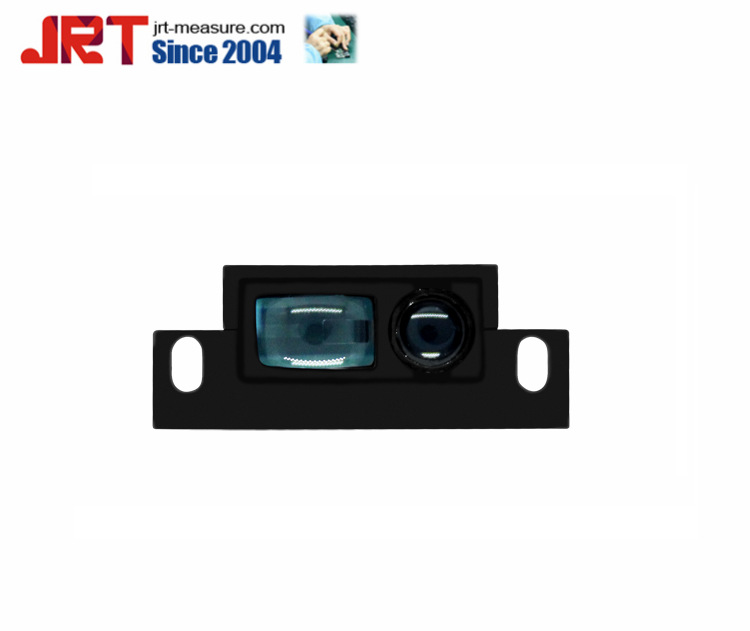

Laser working principle

The optical distance sensors achieve 10m short-range presence detection using a visible, focused laser beam spot. According to the latest version, customers can test the laser range components simply via using all available distance functions commond of the hexadecimal system. High resolution up to 1mm, the arduino distance measurement laser usually used to some samrt monitoring project.

Detailed parameters

Range: 0.03 meters - 10 meters
Invisible measuring: 620nm ~ 690nm
Measuring accuracy: +-1 mm
Measuring frequency: Up to 3 Hz
Laser type: Class 2, red laser
Interface options: Serial/usb/rs232/rs485/bluetooth

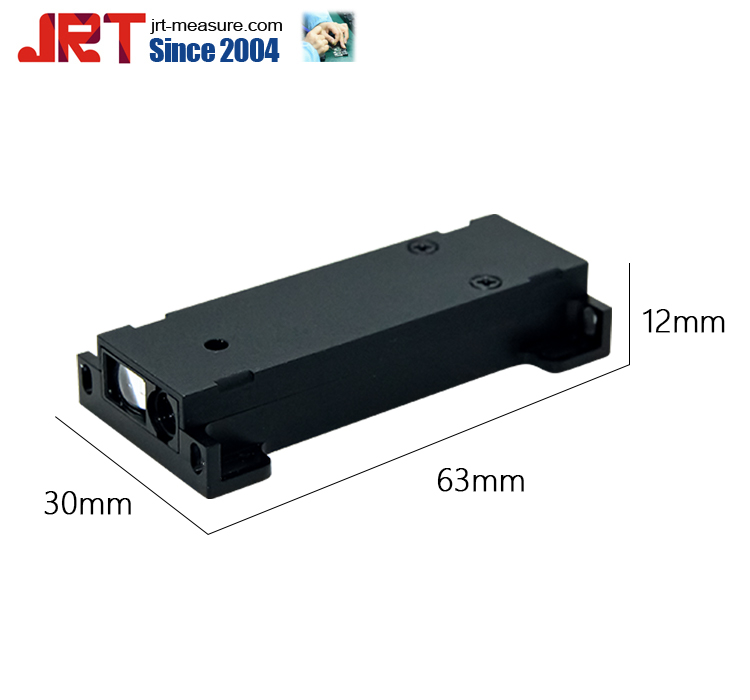

Size: 63*30*12mm
Working temperature: 0 ~ 40 degree
Storage temperature: -25 ~ 60 degree
Hs Code: 85423100

Notes:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. Voltage can be changed by power converter LDO
4. Frequency would be affected by environment.
5. Operating temperature -10 ℃~50 ℃ can be customized.
6. Analog can be customized.

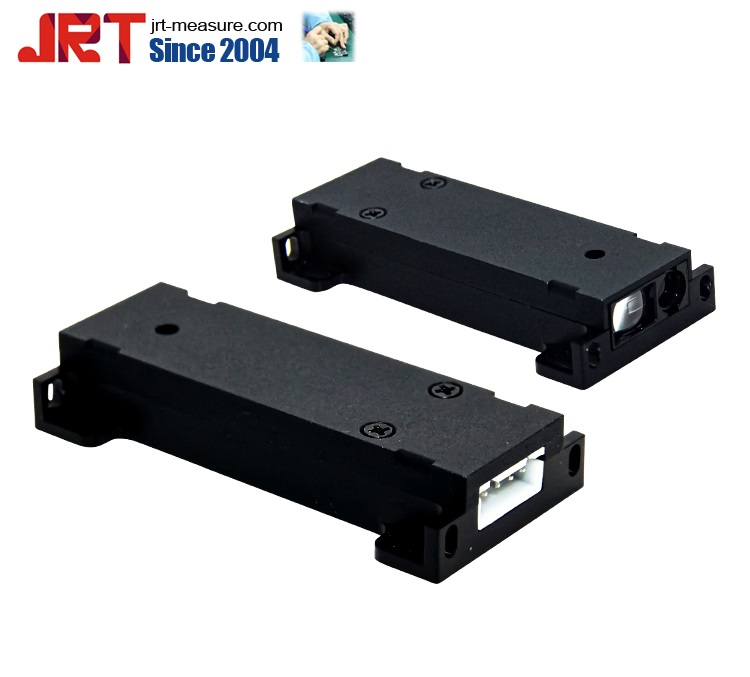

More Detailed Pictures:

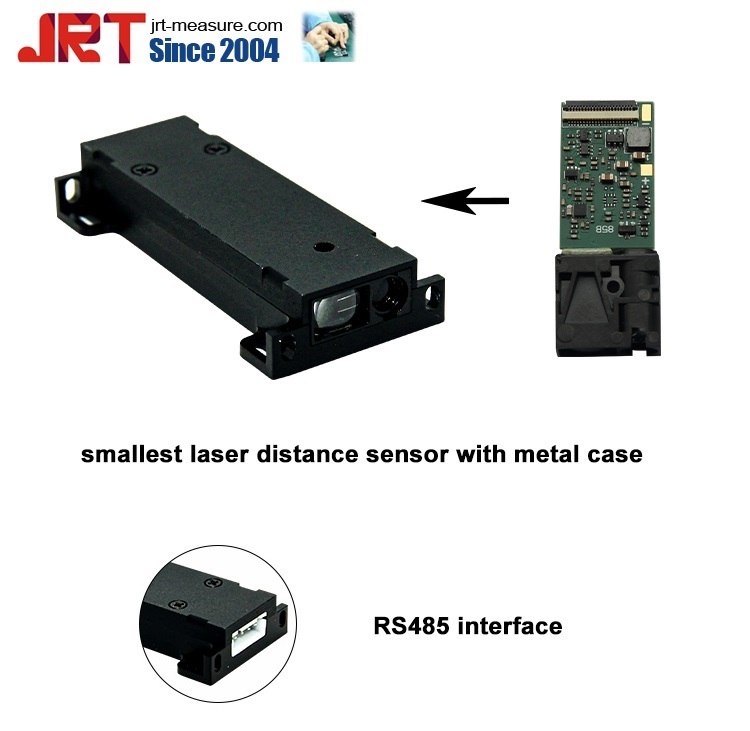

Diagram for the Laser Distance sensor:

Testing data from our cusomers
JRT U85 Industrial Distance Sensor, we also called it Phase laser distance sensor, using single transmission single receving principle, low power consumptionan and high accuracy.

When you choose and send the continuous fast measure command, it will start to measure.This is one of data for Continuous Fast Mode:
[2019-10-09 11:02:01.732 T]AA 00 00 20 00 01 00 06 27
[2019-10-09 11:02:02.237 R]AA 00 00 22 00 03 00 00 05 F6 00 45 65
[2019-10-09 11:02:02.642 R]AA 00 00 22 00 03 00 00 05 F6 00 32 52
[2019-10-09 11:02:03.047 R]AA 00 00 22 00 03 00 00 05 F5 00 28 47

Stop the Continuous Fast Mode Measurement:

[2019-10-09 11:02:08.765 T]58

Feedbacks:

Customer to JRT:

Hello,
Thanks a lot.
We have worked with many manufacturers, but you are the most enthusiastic advice and support. I will order again.
