10Hz 60m Ir Distance Sensor LiDAR Arduino

10Hz 60m Ir Distance Sensor LiDAR Arduino

This ir distance sensor is our new product which uses as its IP 54 standard protection. The design also supports using Arduino platform, and it can measure 60m, customer usually used in some short-range industrial fields. The LiDAR arduino support varieties of interfaces - USB-TTL, RS485, RS232 etc.
If you need higher frequency like 100Hz Tof Laser Measurement Module, welcome to send us message.

CUSTOMERS FREQUENTLY ASKED QUESTIONS
> Does it work outdoors?
Yes, it does, but its measuring range and accuracy could be affected by the environment like the target surface, strong sunlight etc.
> Is it compatible with Arduino?
Yes, JRT laser distance was already widely used in many applications, inculding Arduino, Raspberry pie, MCU etc.

LiDAR Sensor Parameters:

Module model: MB91-60m
Measurement accuracy: ±1mm
Measuring range: 0.03-60m
Laser class: Class II laser
Communication: Serial communication, UART
Working voltage: 5~32V
Laser type: 620nm-690nm,<1mw
Module volume: 69*40*16mm
Dust and waterproof IP54
Working temperature: 0 ℃ ~ 40 ℃ (wide temperature program -10 ℃ ~ 50 ℃ can be customized)
Storage temperature range: -25 ℃ ~ 60 ℃
Output: RS485 (customizable RS232 or TTL)
Weight: 40g
Measurement time: 0.04~4s
Frequency: 10Hz

Notes:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. Voltage can be changed by power converter LDO
4. Frequency would be affected by environment.
5. Operating temperature -10 ℃~50 ℃ can be customized.
6. Analog can be customized.

Detailed Pictures:

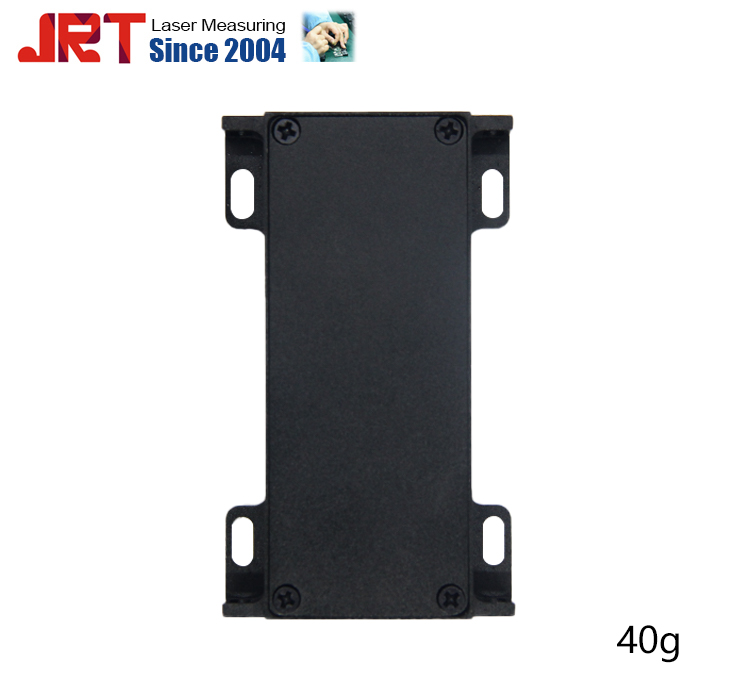

Ir Distance Sensor Back

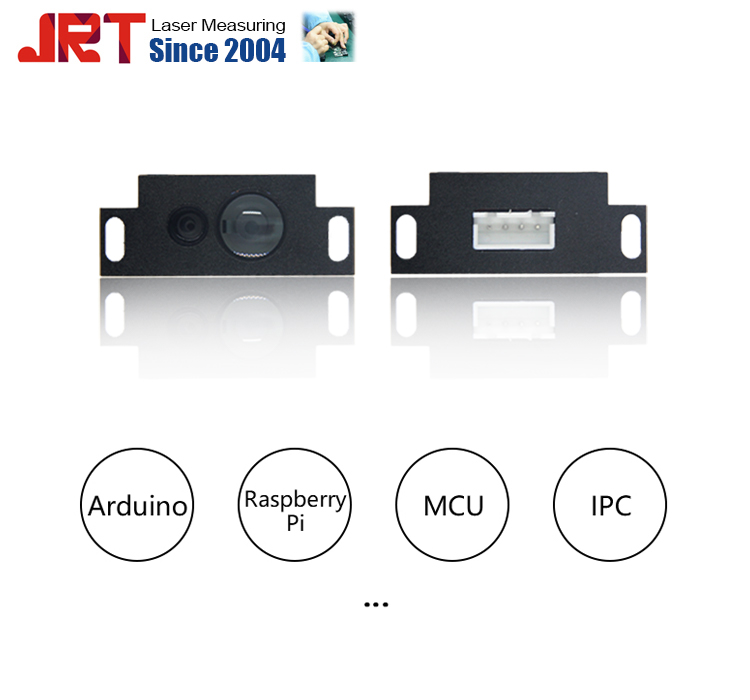

60m Distance Sensor Pins Definition

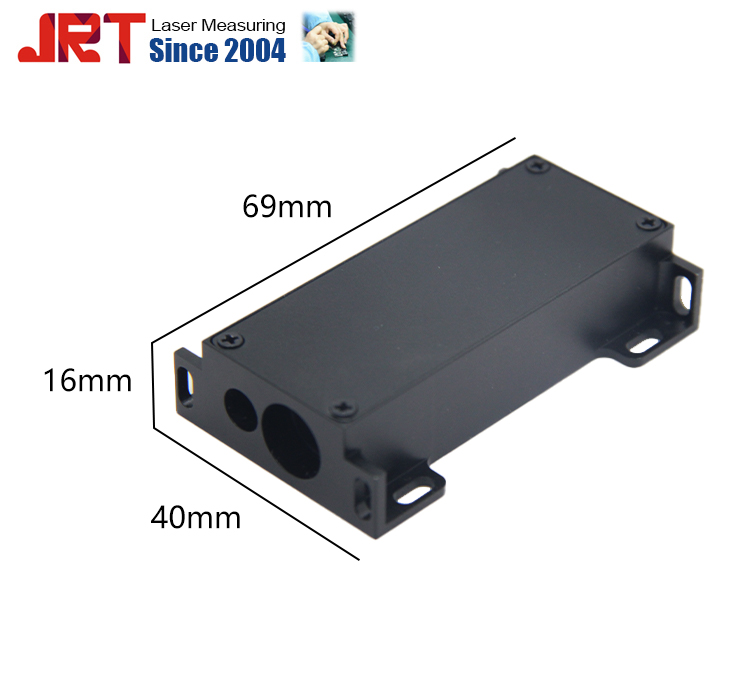

60m Ir Distance Sensor LiDAR Sensor Size
