Interior use zipper high speed doors
3 year ago
In many factory and warehouses, PVC fabric high speed doors are installed inside the building. The interior use high speed door can separate different rooms, and reduce air and dust spreading among adjacent rooms or areas. This can help keep clean and tidy in the building. In such cases, there will be no big wind pressure onto the interior pvc high speed doors. So the strength of the PVC rapid door is not an big factor. What's important is airtight level of the door, which is critical to keep clean. Kenvo develop high airtight design PVC high speed doors for interior applications. It is with two side zipper lock structure, to connect door curtain with two side tracks as a whole part, to eliminate gaps of the speed door completely.
How to get excellent airtight ？

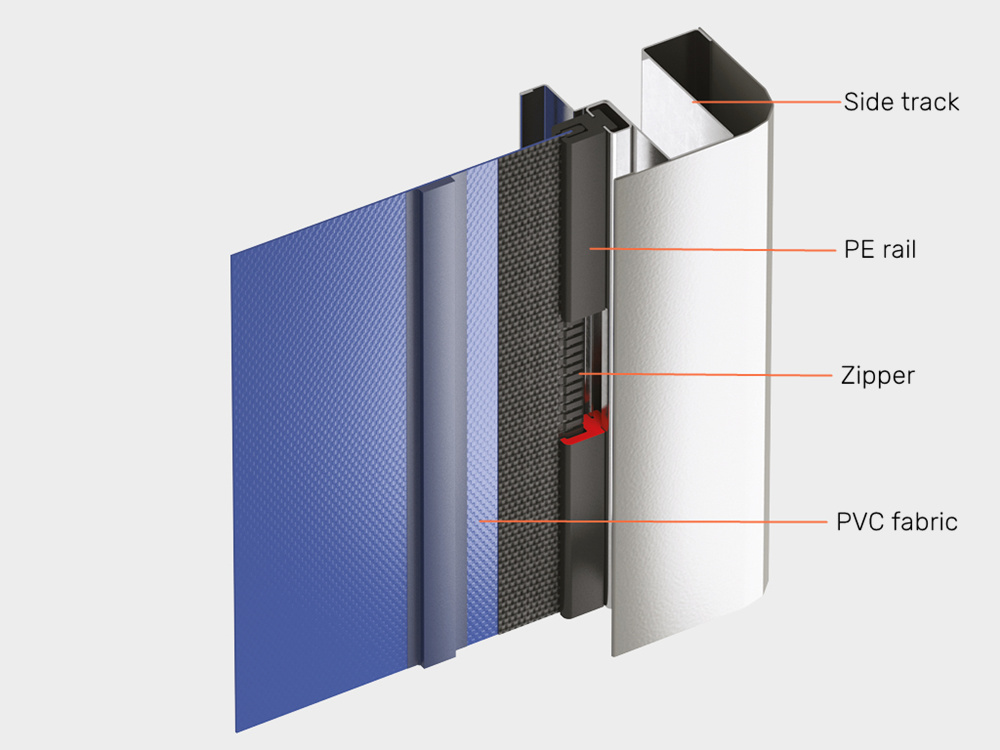

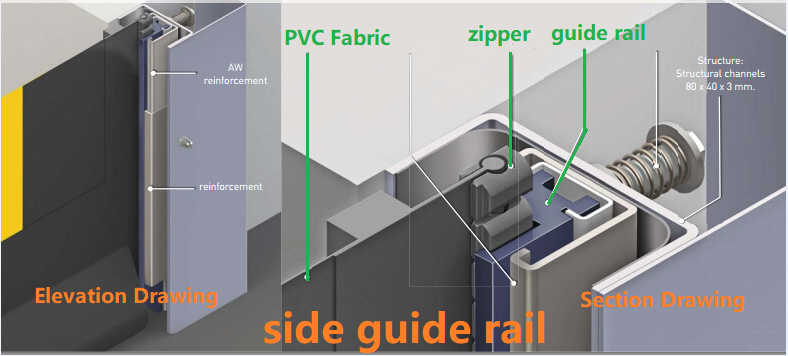

Zipper strip connect interior high speed door side track with PVC curtain as a whole, eliminating gaps completely. Compared with regular high speed doors, there is no gap at two sides from top to bottom. So zipper type high speed doors get better airtightness than regular standard rapid doors.
How to operate the interior high speed door ?
Is interior high speed door safe for people and vehicles ?
More data you may want to know
|
SPECIFICATIONS |
DATA |
|
Max Size |
W5000mm*H5000mm |
|
Application: |
Interior use |
| Running Speed |
Opening 1.5m/s, Closing 0.8m/s (speed adjustable max 2.5m/s ) |
| Running Frequency | Max 300 cycles per hour (1 cycle=1 opening & 1 closing) |
| Side Track & Top Cover |
Side tracks: 125mm*T3.0mm aluminum profile, surface is anodized treatment. Top cover & Motor cover: T1.2mm 304 stainless steel with hairline surface treatment. |
| Drive Motor |
Italy servo technology motor Power supply: 1-phase 220±10V, 50/60HZ; Power: 750W/1500W |
| Control Panel |
Italy servo technology closed-loop control, realizing soft start and soft stop. Various parameters adjustable: Running speed, Running limit position, Auto-close interval time, Auto/Manual modes. Inbuilt function: interlocking, Signal-interacting with PLC, conveyor or air shower or robot |
| Operation Device |
Standard: wall-mounted control buttons at both sides Optional: Touchless hand detector, Touchless foot detector, Motion radar sensor, Loop vehicle detector, Pull-cord switch, Remote control |
| Safety Device |
1.Safety photo cell sensor (inbuilt hidden type) 2.Wireless safety edge sensor 3. Alarm lamp |
|
Curtain |
PVC fabric curtain, double-surface coating treatment, Self-cleaning, Anti-static, Dust-proof. Thickness: 1.2mm for color fabric, 1.5mm for clear window fabric. Fire retardant grade: B1. Optional Colors:
|
|
Manual Opening Device |
Emergency manual swing bar: opening the door by hand in case of powder failure. Optional device: UPS battery. The door will be able to open and close for 10 cycles with battery power after power failure. |
