Automatic clean room sliding doors
3 year ago

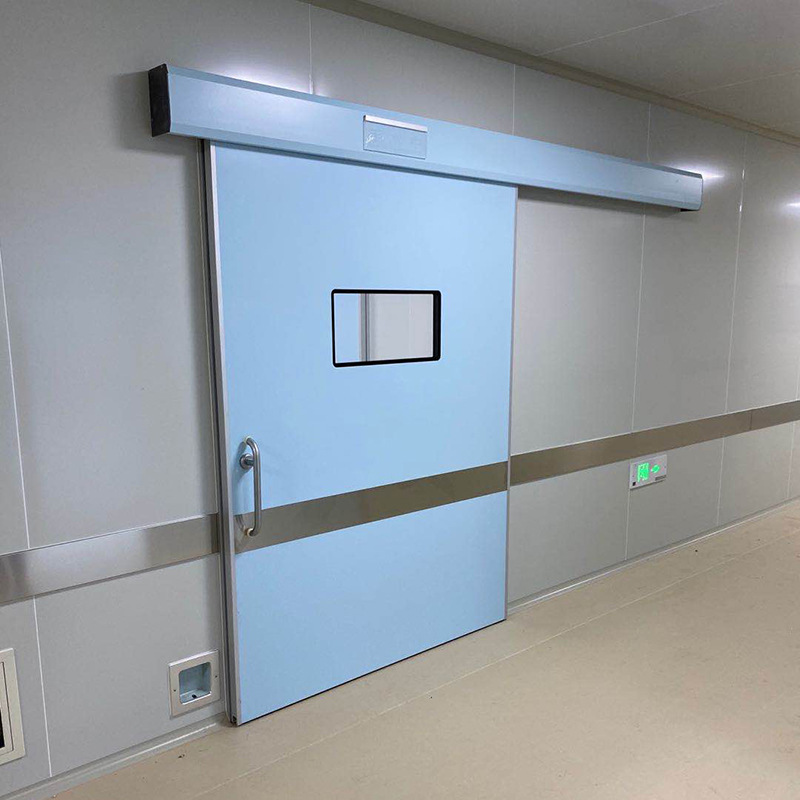

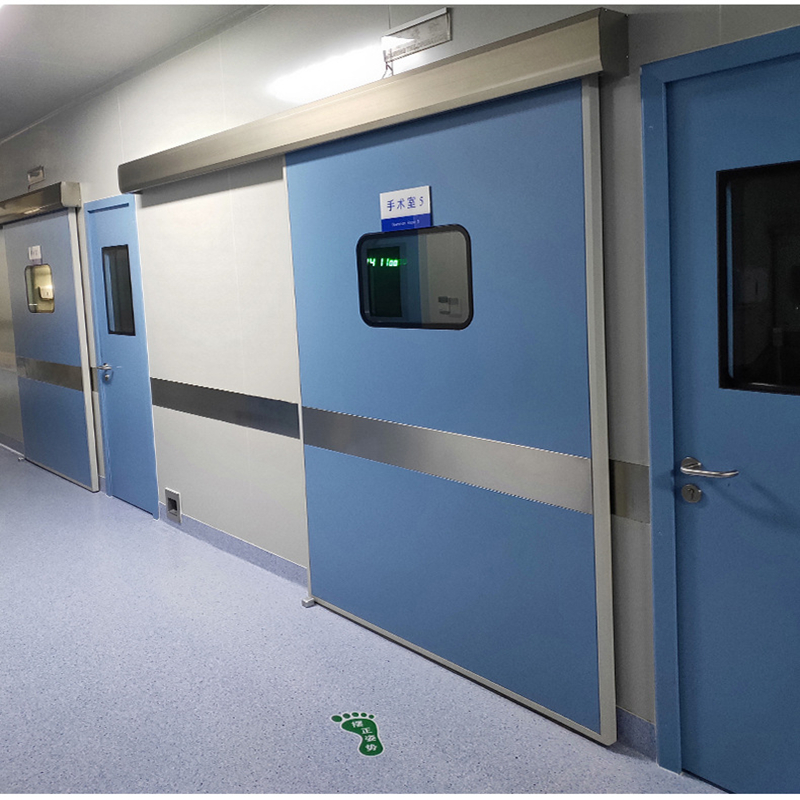

Automatic medical sliding doors are Cleanroom Doors widely seen in hospital operation room, pharmaceutical workshop and laboratory. It is with good seal structure all around to keep clean and prevent air spreading among rooms. This is very important for hospital to prevent disease spreading. And with hand or foot detecting sensors, it is very convenient to open without any obstacles. So automatic medical sliding door is very friendly for doctors or nurses moving patients with carts , and for disabled people to pass the door on a wheel chair.
 |
|
Data sheet of Automatic medical sliding doors:

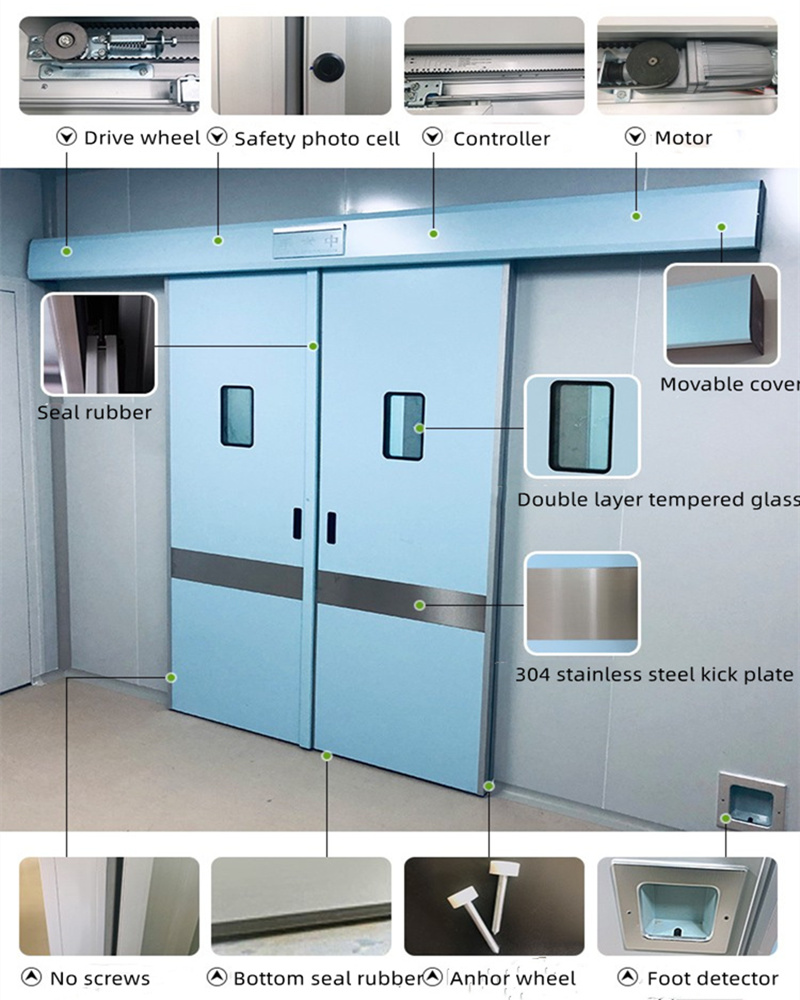

Door leaf
50mm thick flush design, surface sheet is 0.9mm thick high quality galvanized steel or 304 stainless steel, filled aluminum honeycomb or rock wool.
Top guide rail and cover
high quality 6063-T aluminum profile, surface is anodized treatment or powder coated.
Glass window
double layer hollow glass window, surface is 5mm safety tempered glass. Flush with door leaf surface, no rust detention and easy to clean.
Glass window
located at middle section, 304 stainless steel sheet with 1.0mm thick, to avoid damage caused by hit.
Kick plate
located at middle section, 304 stainless steel sheet with 1.0mm thick, to avoid damage caused by hit.
Safety protection
inbuilt hidden safety photo cell sensor, to stop the door closing when people passing.
Seal structure
top+left+right aluminum tube with seal rubber fixed onto wall, to reduce gap with door leaf. Bottom of door leaf fixed with soft rubber plate to touch with ground floor.
Optional operation devices
Hand detector, Food detector, Access controller, Radar sensor.
Interlocking available
two-door interlocking, three-door interlocking.

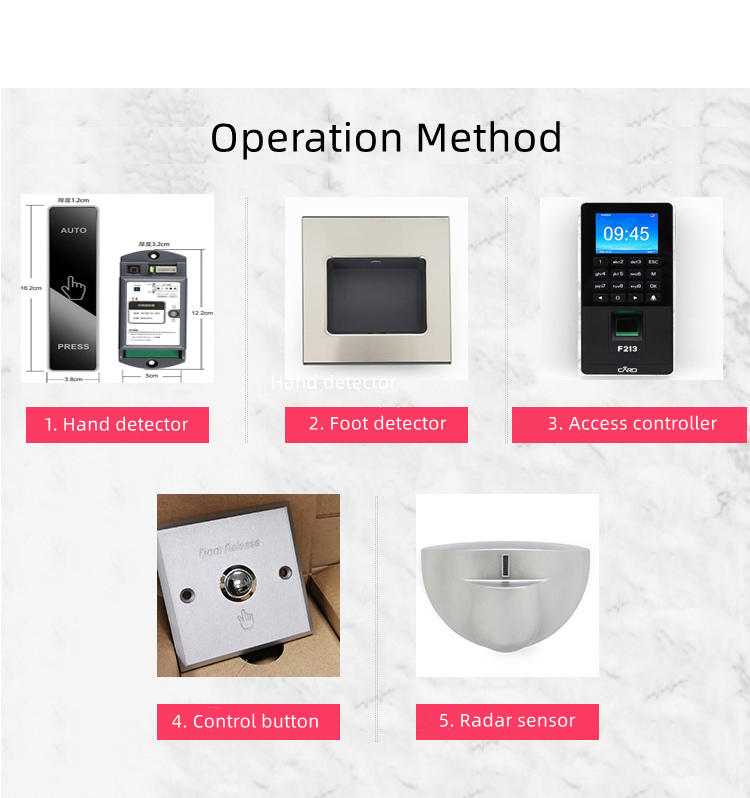

| 1 |
Hand detector |
Touchless sensor to avoid hand contamination. No need touch it. Only need wave your hand in front of the sensor, and the automatic cleanroom sliding door will open. |
| 2 |
Foot detector |
Only need put your food in front of the sensor, the door will open. In hospitals, this is very useful for doctors and nurse to pass the door when they carry patients and can not use hand to open the automatic clean room sliding door. |
| 3 |
Access controller |
It can work with Password, ID card, Fingerprint or Face-recognition. Only authorized person can pass the automatic cleanroom sliding doors. |
| 4 |
Control button |
Stainless steel one-button controller, mounted nearby the automatic clean room sliding door. |
| 5 |
Radar sensor |
It can detect coming people or vehicles, and the automatic cleanroom sliding doors will open itself. |
KENVO DOOR also produce Clean Room Doors, Clean Room Windows, and Cleanroom Rapid Door, which is fit for other locations of your building.
