PVC rapid rolling door for AGV
3 year ago

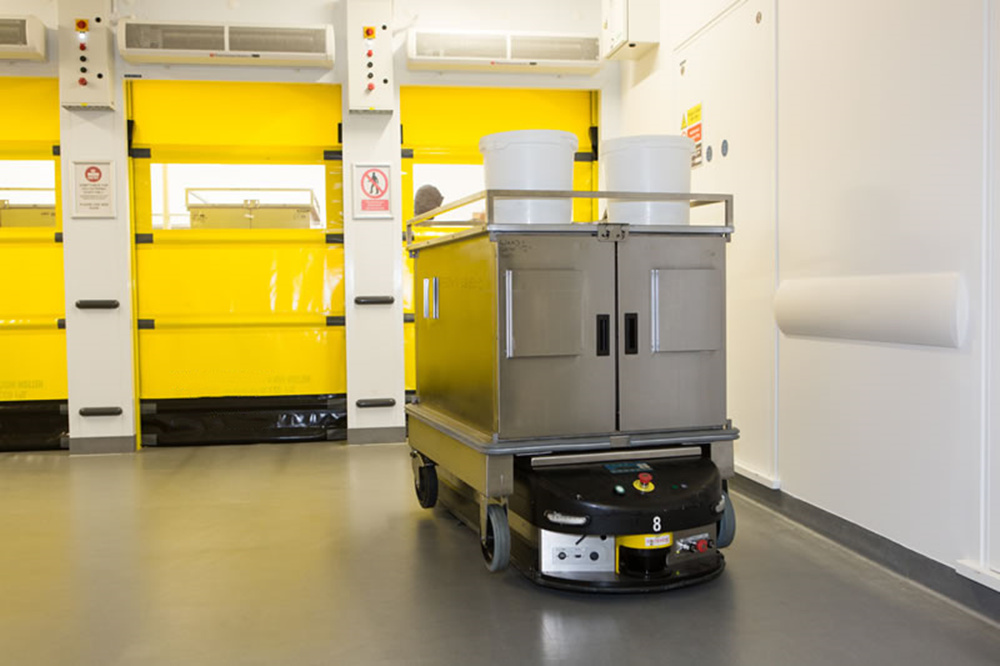

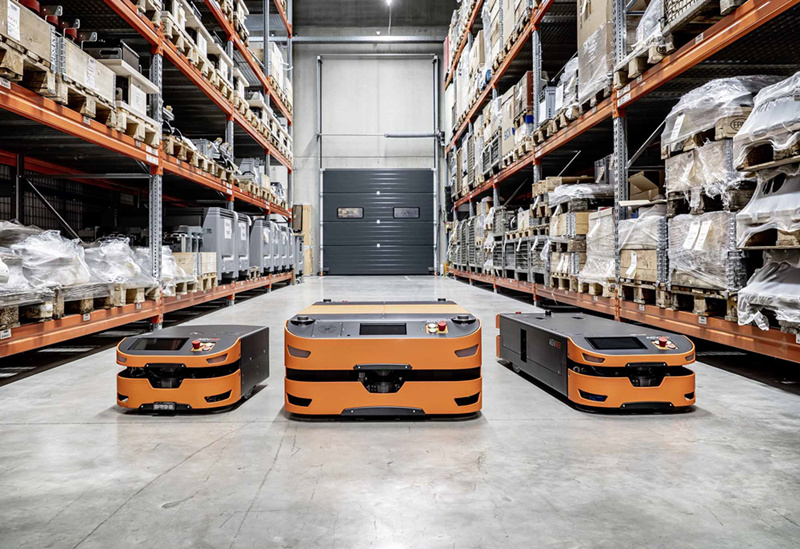

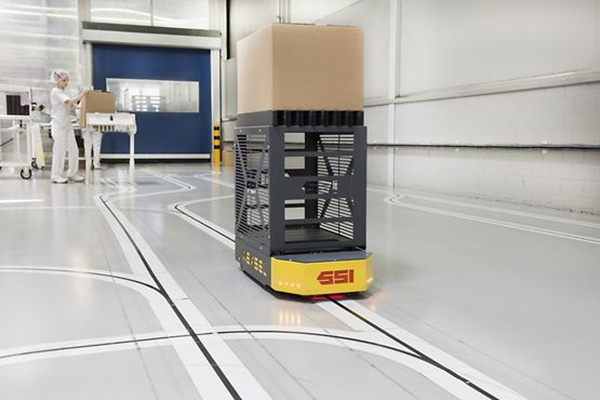

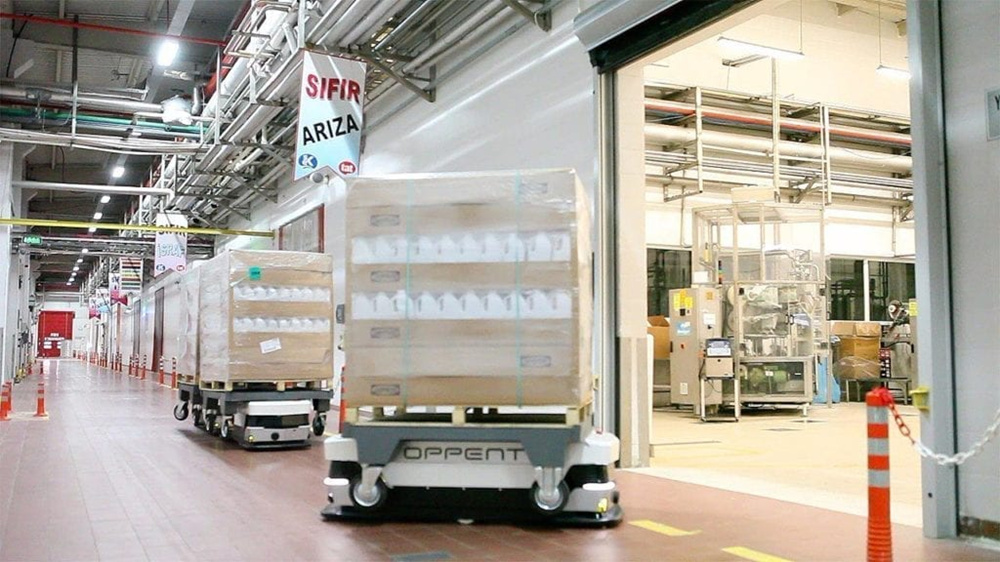

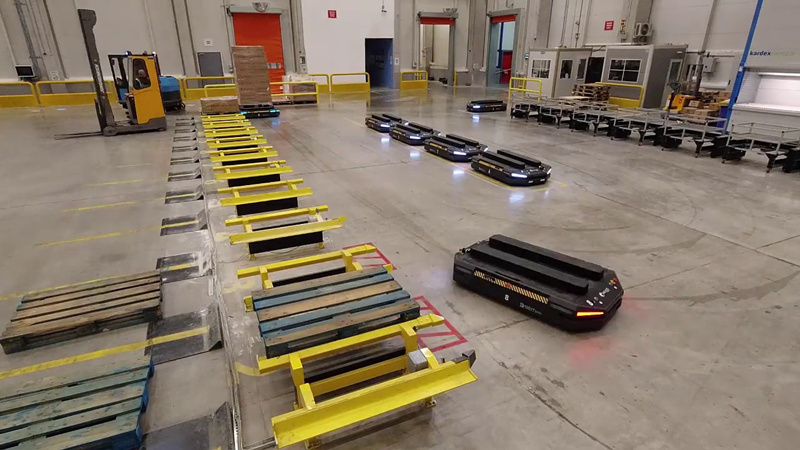

Automated Guided Vehicles (AGV) are now widely used in industrial factory and warehouse. It can self drive along paved line on the floor or follow other signals when carring goods on it. Kenvo PVC High Speed Roll Up Doors will be a perfect choice for factory or warehouse working with AGVs. When the Automated Guided Vehicle approaches, Kenvo Rapid Roll Up Doors will detect it and automatically open within several seconds. AGVs no need stop and can continue pass the door quickly. After the Automated Guided Vehicle passes, the pvc Fast Moving Door will close automatically in several seconds. This is a full automatic passing process, very efficient and intelligent. It can improve the automation level of the factory and enhance material handling efficiency obviously.
Advantages of KENVO PVC Rapid Roll Up Doors for Automated Guided Vehicles (AGVs)
|
·Fast Running Speed Running speed reach up to 2.5m/s. The door can open and close in seconds. This improves passing efficiency obviously.
·High Running Frequency The door can open and close for 500 cycles per hour. It can meet your requirement for heavy traffic.·Good Airtightness Side and bottom are with airtight seal brush or rubber, to minimize the gap. It can prevent air and dust spreading, to keep rooms clean.
|
|
·Long Work Life Servo technology control system, with accurate closed-loop control of load output. This can protect motor from over-heating after long time constant running for a work life of 10+ years (1000 cycles per day). ·Abundant Extended Functions The door have inbuilt interlocking program, and interaction program with conveyors, robot, AGV, machines, and PLC controller. ·User Friendly Human-machine Interactive With a LED display on controller, all parameters and running data are shown in English language clearly. You can easily operate and set the door like using a mobile phone. |
How to operate High Speed Doors ?
1. Standard operation method:
① Control buttons：Workers can operate the door by hands to open, close and stop it with nearby control buttons.
② Automated total control: Our door controller already prepare several input and output signal terminals. It can be directly connected with total control system of total controller of Automated Guided Vehicle system , namely SIEMENS PLC or any other similar control units. The PLC can give signal to the door, to let it open or close. And at the same time, our PVC rapid rolling doors can give feedback signals of open-finished and close-finished to the PLC. All the signal terminals are voltage free dry contact. So it is easy to make such direct wire connection.

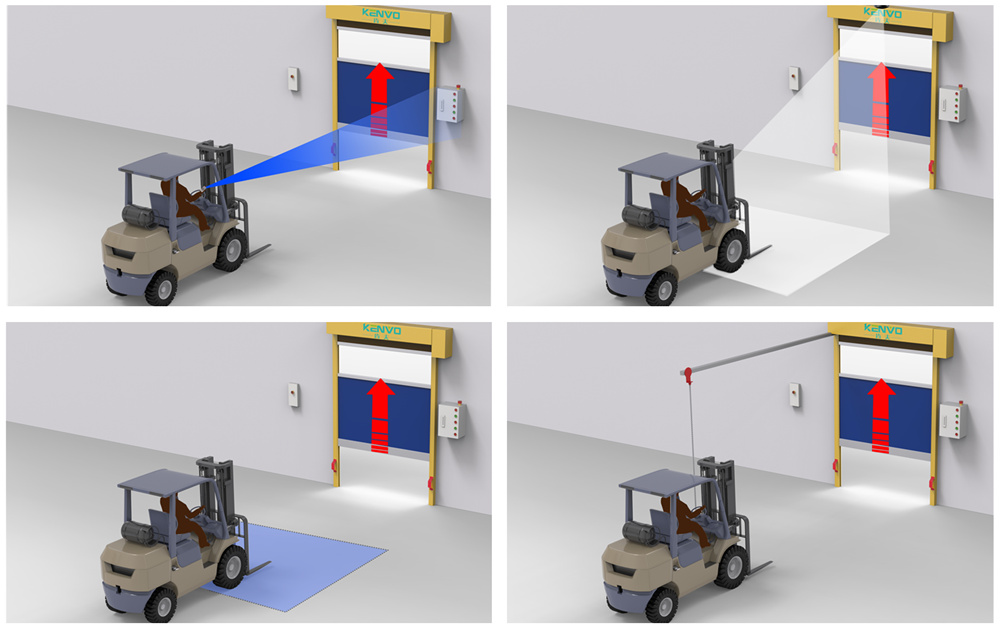

2. Additional operation method for options:
(For AGV, the mostly used choice is auto motion sensor or vehicle loop detector. When AGV comes near the door, the sensor will automatically detect it and open itself. After AGV passes, the door will close automatically. )
Is the door safe for people and automated guided vehicles ?
We equip every PVC rapid rolling door with safety protection devices :
1. Safety photo cell: When light beam is blocked, it will give signal to the door controller, and let the door stop or run up.
2. Bottom safety edge sensor: Soft seal rubber at the bottom is inbuilt with pressure senso. When the door touches something under it, the sensor will give signal to the controller, and let the door stop or run up.
3. Alarm lamp: When door running, the alarm lamp will get on and give out flashing light to warn nearby people.
|
SPECIFICATIONS |
DATA |
|
Max Size |
W5000mm*H5000mm |
|
Application: |
Interior use and exterior use |
| Running Speed |
Opening 1.5m/s, Closing 0.8m/s (speed adjustable max 2.5m/s ) |
| Running Frequency | Max 400 cycles per hour (1 cycle=1 opening & 1 closing) |
| Side Track & Top Cover |
Standard Material: galvanized steel with surface powder coating; 304 Stainless steel available for option. Side tracks: 125mm*T1.5mm CNC forming shape Top cover & Motor cover: T1.2mm CNC forming shape |
| Drive Motor |
Italy servo technology motor Power supply: 1-phase 220±10V, 50/60HZ; Power: 750W/1500W |
| Control Panel |
Italy servo technology closed-loop control, realizing soft start and soft stop. Various parameters adjustable: Running speed, Running limit position, Auto-close interval time, Auto/Manual modes. Inbuilt function: interlocking, Signal-interacting with PLC, conveyor or air shower or robot |
| Operation Device |
Wall-mounted control buttons at both sides |
| Safety Device |
1.Safety photo cell sensor 2.Wireless safety edge sensor 3. Alarm lamp |
|
Curtain |
PVC fabric curtain, double-surface coating treatment, Self-cleaning, Anti-static, Dust-proof. Thickness: 1.0mm for color fabric, 1.5mm for clear window fabric. Fire retardant grade: B1. Optional Colors of main curtain:
|
|
Manual Opening Device |
Emergency manual swing bar: opening the door by hand in case of powder failure. Optional device: UPS battery. The door will be able to open and close for 10 cycles with battery power after power failure. |
Project cases:
 |
 |
 |
 |
