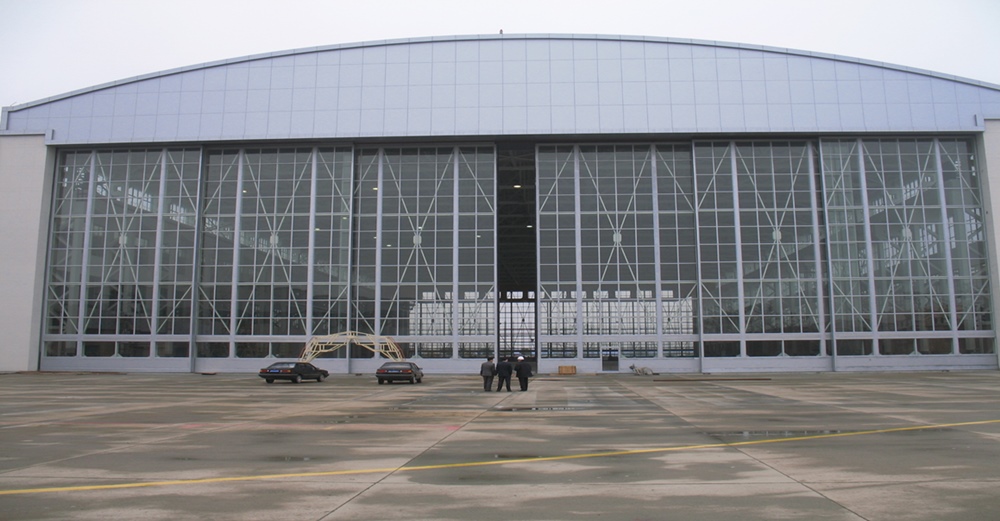

Automatic sliding Aircraft Hangar Doors are specially designed large scale opening doors for all kinds of hangars, fit for Boeing plane, Airbus plane, helicopter, military, fight jet and so on. Its size can reach 200 meter wide and 25 meter high. Thus, it can be used for all models of aircraft seen in airline industry. Such Automatic Hangar Doors are made into multiple door leafs, which can move to left and right with its separate drive motor. With strong inbuilt steel framework, it gets high wind resistance ability to meet different locations.
Different surface cladding material for sliding Aircraft Hangar Doors
|

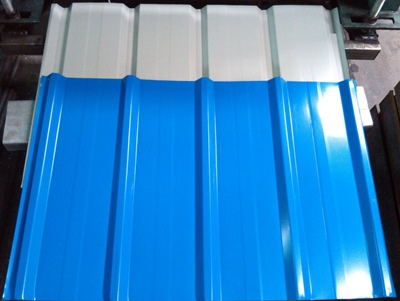

1. Corrugated color steel |

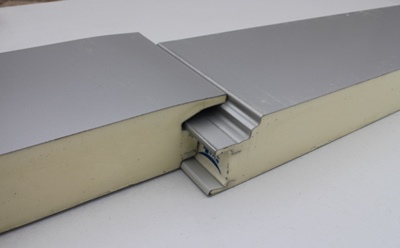

2. Insulated sandwich panel |

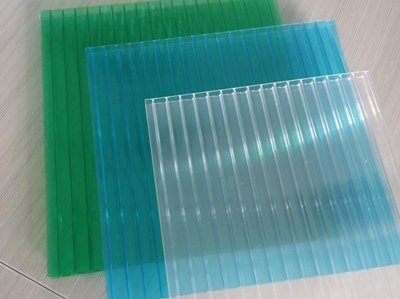

3. Polycarbonate glass |
| Various colors, Low price, Easy installing, Easy replacement | Thermal insulated, Noise insulated, High strength, High-grade |
Sunlight clear, Good view, Beautiful |
 |
 |
 |
Data sheet of sliding hangar door
|
Door hole size |
Customized |
|
Power supply |
380V±10V, 50/60HZ |
|
QTY of door leaf |
1 pcs or more |
|
Door leaf size |
Customized |
|
Cladding material |
Corrugated steel plate of outside surface. (Optional: PU sandwich panel or Polycarbonate sunlight glass with surcharge) |
|
Drive motor |
Germany brand Siemens or SEW brand drive motor. Each door leaf has its own motor and driving unit. So it can move flexibly. Power of motor: 0.75KW to 1.5KW |
|
Control system |
French Schneider brand inverter control system, with PLC controller. Master control+ Sub-control: Each door leaf can be separately operated. And all of them can also be operated at the same time with one control button. |
|
Allowable error of steel skeleton |
Height：0~+5 ；Width：±5；Diagonal：±8；Horizontal beam interval：±2；平面Plane deflection：5mm。 |
|
Moving speed（m/min） |
High speed 20m/min，Low speed 6m/min，Manual speed 3m/min |
|
Interval between guide rails |
100-556mm |
|
Interval between door leafs |
50-300mm |
|
Weight of each door leaf |
100Kg-5000KG |
|
Weight of steel of each door leaf |
100KG-2500Kg |
|
Sound insulation |
15-23dB |
|
Heat transfer coefficient |
1.623W/ m2℃ |
|
Work temperature |
-40℃～50℃ |
|
Air tight |
Class 3 |
|
Water tight |
Class 3 |
|
QTY of small man door |
1 set（fire rated 90min） |
|
Basic wind pressure （kN/m2） |
0.65（wind speed 32m/S） |
|
Deflection of extreme wind pressure |
1/365(<1/300) |
|
Thickness of dry film coating |
260um（75+125+60） |
|
Seismic intensity |
Class 7 |
|
Wind resist |
0.55KN/ ㎡-0.85KN/㎡ |

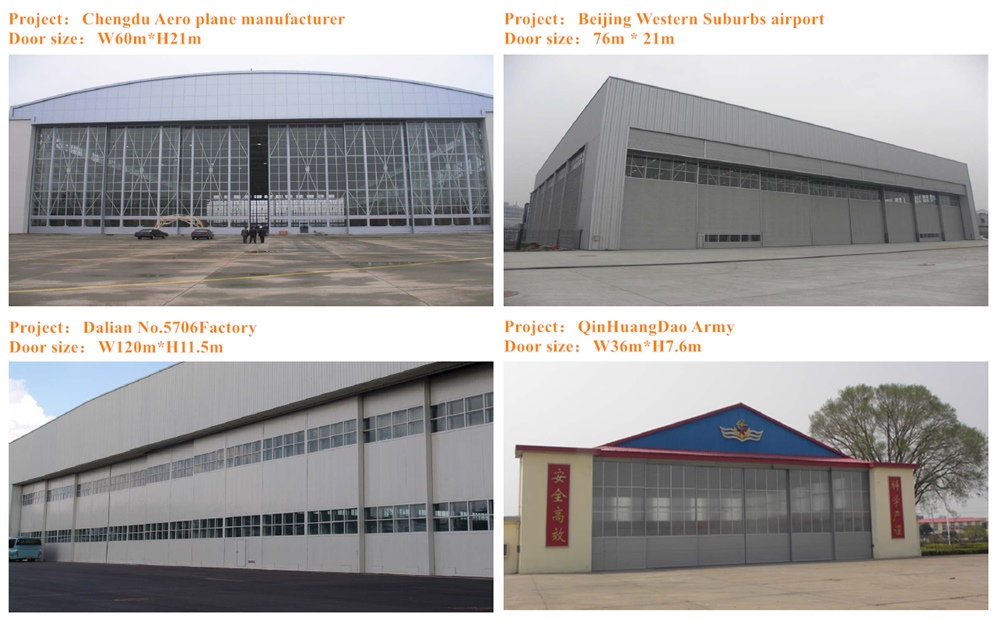

Project cases of sliding hangar door
Besides above sliding hangar doors, big size Pvc Lifting Door is also used a lot in aircraft hangars.
