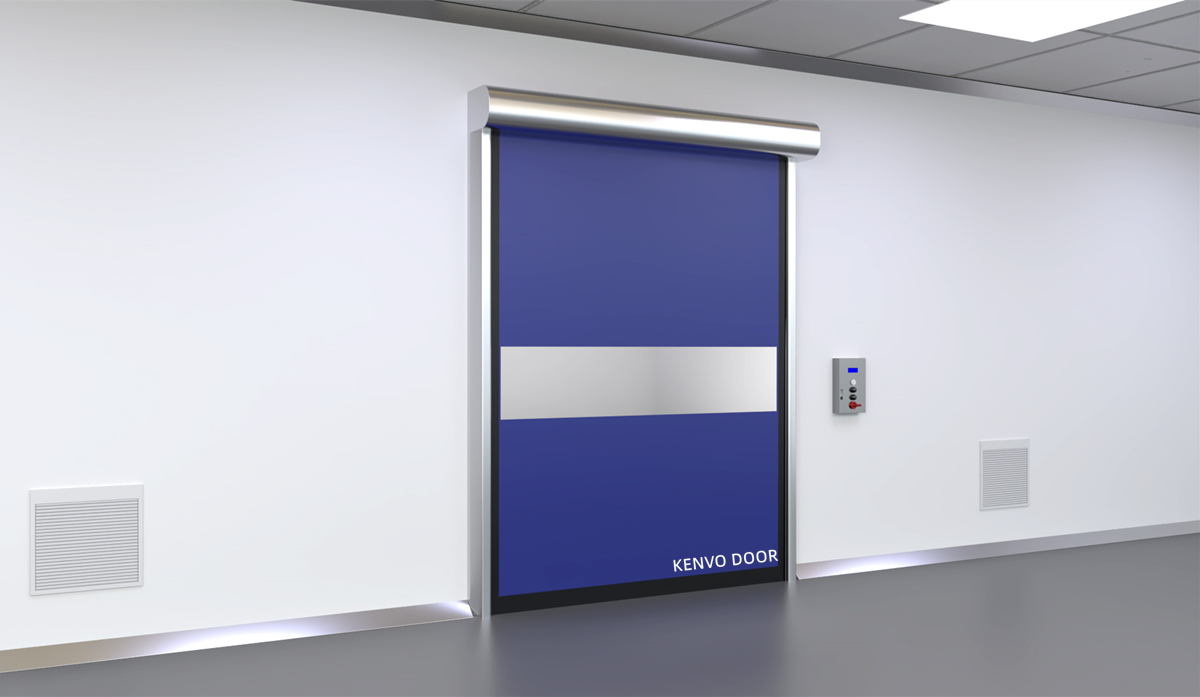

Clean room high speed door RRD-cleanpro-720P
3 year ago
Pharmaceutical automatic high speed rolling doors are High Performance Door specially designed for pharmaceutical workshops. In pharmaceutical factory, there is extreme high clean and hygiene level, which is requested by GMP standards. Kenvo makes tailor made design pharmaceutical Automatic Rapid Door, to meet the requirement of pharmaceutical clients. It has unique features to make the door dust-proof, airtight, and rust-proof. Kenvo pharmaceutical Pvc High Speed Doors will bring big benefits to maintain clean level and room air pressure.
All-around 360° airtight seal, at two sides, top and bottom. Cleanroom High Speed Door can effectively isolate air circulation and maintain air pressure between different clean rooms. And also minimize the air flow volume needed to save cost.
 |
1. Two sides
Side track is zipper structure. Curtain is jointed with PE plastic |
|
2. Top A full-length D-shape seal is used to eliminate gap between door backward and top lintel. The D-shape is made from soft PVC curtain, flexible touching with door surface to close thegap, and with long work life even after frequent friction.
|
|
|
3. Bottom Soft bottom balance weight, touching ground floor more flexible and tight |
|
1. Top cover Top cover made into circular arc shape, no any rectangular corner, making it dust-proof and easy-to-clean. |
|

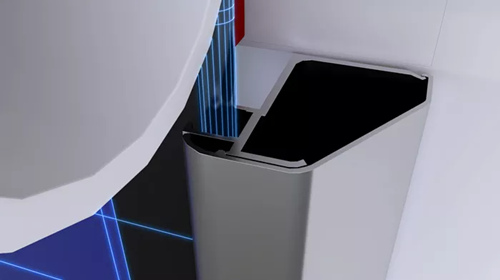

2. Side rails Side track is in round arc shape. And surface cover is joined with main profile by clip, no need any screws. This make whole surface of side rail smooth, , making it dust-proof and easy-to-clean. |
|
|
|
3. Fabric curtain Smooth pure plane curtain, no aluminum bars as seen in regular rapid doors, eliminating corners and joints to reduce dust detention. |
|
4. Inbuilt motor Motor is hidden inbuilt in top roller tube, no exposed motor cover, reducing dust-detention areas.
|
|
|
5. Inbuilt safety photo sensor Safety photo sensor is hidden inbuilt in side tracks, rather than fixed outside with exposed cover at the front, reducing dust-detention areas.
|
Top hood cover and side tracks are all made from anodized treated aluminum profile.
1. Motor inbuilt into top roller tube, saving side space and making door body tighter
2. Safety photo sensor inbuilt in two side tracks, rather than exposed at the front, making it more integrated
3. Slim side tracks formed by one-time extrusion, with width only 57mm, no need big space
4.Top cover and side tracks are round arc shape, surface treated by anodizing, in harmony with clean room surroundings .
Operation Methods
Every Cleanroom Rapid Door will have wall mounted control buttons at both interior and exterior. This can make sure the Cleanroom Rapid Door can be operated by workers at any time when they need.
To improve your work efficiency, we also offer various addtional choices of operation devices. Below are optional:
For door with a lot human passing:
1. Touchless hand detector switch 2. Touchless foot detector switch
For door with a lot vehicle like forklifts passing:
1. Remote control 2. Motion radar sensor 3. Vehicle loop detector 4. Pull cord switch
|
SPECIFICATIONS |
DATA |
|
Max Size |
W4000mm*H5000mm |
|
Application: |
Interior use |
| Running Speed |
Opening 1.5m/s, Closing 0.8m/s (speed adjustable max 2.0m/s ) |
| Running Frequency | Max 300 cycles per hour (1 cycle=1 opening & 1 closing) |
| Side Track & Top Cover |
Side tracks: 57mm*57mm*3mm, one-time pressing extrusion aluminum profile+ PE plastic inner track, round arc shape
Top cover: aluminum material, round arc shape |
| Drive Motor |
Inbuilt tubular servo technology motor, hidden in top roller tube Power supply: 1-phase 220±10V, 50/60HZ; Power: 750W/1500W Driving mechanism: aluminum tube roller |
| Control Panel |
Servo technology closed-loop control, realizing soft start and soft stop. Various parameters adjustable: Running speed, Running limit position, Auto-close interval time, Auto/Manual modes. Inbuilt function: interlocking, Signal-interacting with PLC, conveyor or air shower
|
| Operation Device |
Standard: wall-mounted control buttons at both sides Optional: Touchless hand detector, Touchless foot detector, Motion radar sensor, Loop vehicle detector, Pull-cord switch, Remote control
|
| Safety Device |
1.Safety photo cell sensor (inbuilt hidden type) 2.Wireless safety edge sensor |
|
Curtain |
PVC fabric curtain, double-surface coating treatment, Self-cleaning, Anti-static, Dust-proof. Thickness: 1.2mm for color fabric, 1.5mm for clear window fabric. Fire retardant grade: B1. Optional Colors:
|
|
Manual Opening Device |
Optional device: UPS battery. The door will be able to open and close for 10 cycles with battery power after power failure. |
