Interlocking PVC high speed rolling doors
3 year ago

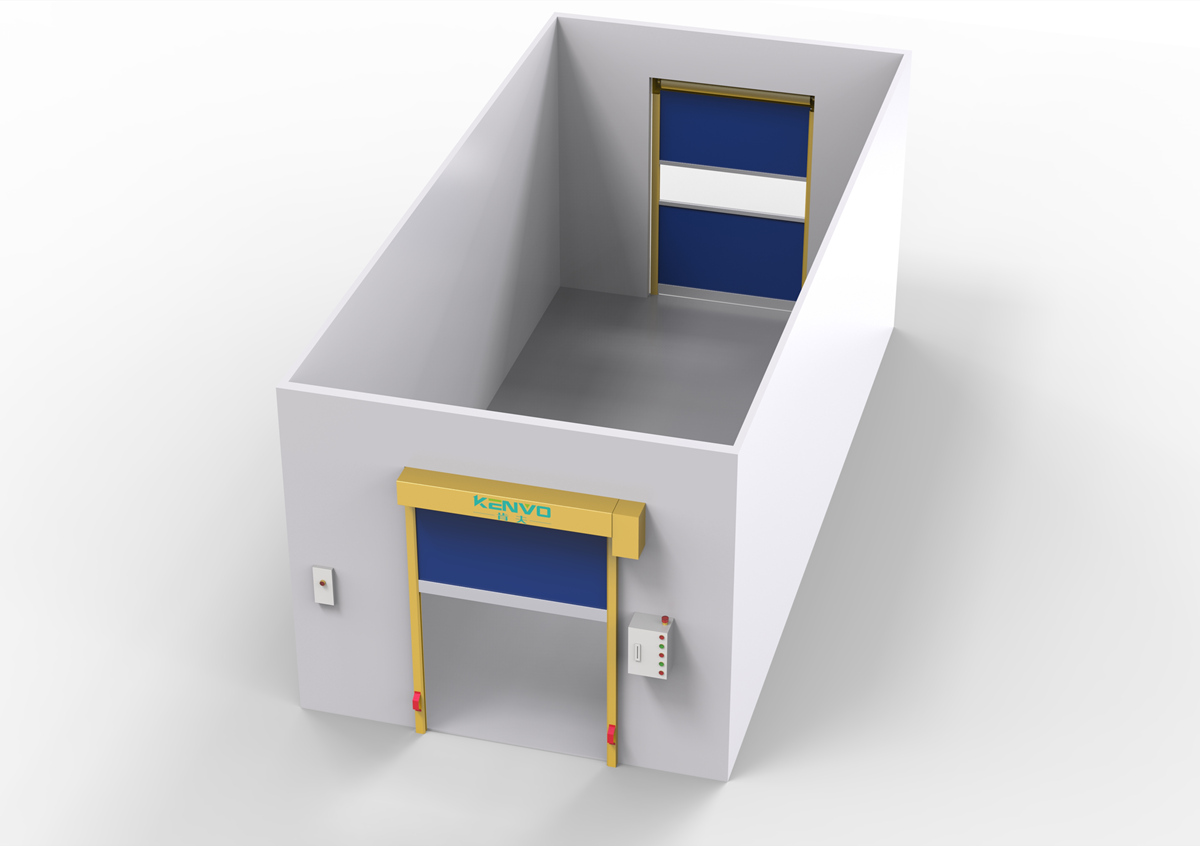

Interlocking PVC fabric high speed rolling doors, are used in passages or corridors of a buffer room area. Such buffer room is designed to be a separation of outside regular area and inside clean area. In this corridor, two PVC high speed roll up doors are installed facing each other. When people or goods need enter room, the outside interlocking PVC rapid door will be opened. And at the same time, this outside door will send a signal to inside interlocking PVC high speed door and let it keep closed. During this time, if people inside clean area operate the inside door, it will not open up no matter which method people use. After people or goods enter the buffer room, outside door close, and it will release the locking signal for inside interlocking high speed door. Then inside door can be opened. So in such a program, there will always one door keeping closed, to avoid outside air and dust entering clean areas. It is widely adopted in food factory, food warehouse, pharmaceutical workshop, air shower, laboratory and temperature control factory.
How to operate the interlocking PVC high speed door ?
Is interlocking rapid door safe for people and vehicles ?
More data you may want to know
|
SPECIFICATIONS |
DATA |
|
Max Size |
W6000mm*H6000mm |
|
Application: |
both Exterior and Interior use |
| Running Speed |
Opening 1.5m/s, Closing 0.8m/s (speed adjustable max 2.5m/s ) |
| Running Frequency | Max 400 cycles per hour (1 cycle=1 opening & 1 closing) |
| Side Track & Top Cover |
Standard Material: galvanized steel with surface powder coating; Side tracks: 125mm*T1.5mm CNC forming shape Top cover & Motor cover: T1.2mm CNC forming shape |
| Drive Motor |
Italy servo technology motor Power supply: 1-phase 220±10V, 50/60HZ; Power: 750W/1500W |
| Control Panel |
Italy servo technology closed-loop control, realizing soft start and soft stop. Various parameters adjustable: Running speed, Running limit position, Auto-close interval time, Auto/Manual modes. Inbuilt function: interlocking, Signal-interacting with PLC, conveyor or air shower or robot |
| Operation Device |
Standard: wall-mounted control buttons at both sides Optional: Touchless hand detector, Touchless foot detector, Motion radar sensor, Loop vehicle detector, Pull-cord switch, Remote control |
| Safety Device |
1.Safety photo cell sensor 2.Wireless safety edge sensor 3. Alarm lamp |
|
Curtain |
PVC fabric curtain, double-surface coating treatment, Self-cleaning, Anti-static, Dust-proof. Thickness: 1.0mm for color fabric, 1.5mm for clear window fabric. Fire retardant grade: B1. Optional Colors:
|
|
Manual Opening Device |
Emergency manual swing bar: opening the door by hand in case of powder failure. Optional device: UPS battery. The door will be able to open and close for 10 cycles with battery power after power failure. |
