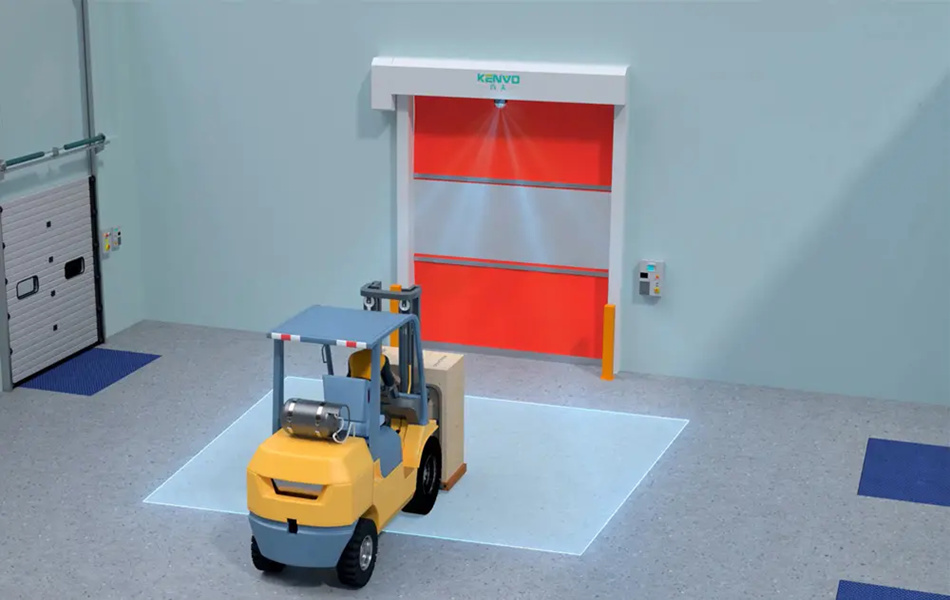

Magnetic forklift sensor PVC rapid roller door
3 year ago
Commercial PVC flexible roller shutter door is an advanced type automatic doors for busy traffic locations like commercial supermarket, warehouse or workshops. Pvc Rapid Rolling Doors are quite different from traditional roller shutter doors which are seen by most people.Its material is soft PVC curtain, which is very flexible to roll around roller in high speed. And such commercial Pvc Fast Roller Doors are also equipped with multi functional control panel, to realize automation and safety protection.
How to operate PVC flexible Rapid Action Door ?
Is the PVC roller shutter door safe for people and vehicles ?
More data you may want to know
|
SPECIFICATIONS |
DATA |
|
Max Size |
W6000mm*H6000mm |
|
Application: |
both Exterior and Interior use |
| Running Speed |
Opening 1.5m/s, Closing 0.8m/s (speed adjustable max 2.5m/s ) |
| Running Frequency | Max 400 cycles per hour (1 cycle=1 opening & 1 closing) |
| Side Track & Top Cover |
Standard Material: galvanized steel with surface powder coating; Side tracks: 125mm*T1.5mm CNC forming shape Top cover & Motor cover: T1.2mm CNC forming shape |
| Drive Motor |
Italy servo technology motor Power supply: 1-phase 220±10V, 50/60HZ; Power: 750W/1500W |
| Control Panel |
Italy servo technology closed-loop control, realizing soft start and soft stop. Various parameters adjustable: Running speed, Running limit position, Auto-close interval time, Auto/Manual modes. Inbuilt function: interlocking, Signal-interacting with PLC, conveyor or air shower or robot |
| Operation Device |
Standard: wall-mounted control buttons at both sides Optional: Touchless hand detector, Touchless foot detector, Motion radar sensor, Loop vehicle detector, Pull-cord switch, Remote control |
| Safety Device |
1.Safety photo cell sensor 2.Wireless safety edge sensor 3. Alarm lamp |
|
Curtain |
PVC fabric curtain, double-surface coating treatment, Self-cleaning, Anti-static, Dust-proof. Thickness: 1.0mm for color fabric, 1.5mm for clear window fabric. Fire retardant grade: B1. Optional Colors:
|
|
Manual Opening Device |
Emergency manual swing bar: opening the door by hand in case of powder failure. Optional device: UPS battery. The door will be able to open and close for 10 cycles with battery power after power failure. |
