Product Description:

The countless metal tube float flowmeter is designed for precise flow measurement needs. It adopts the advanced float measurement principle. When the fluid passes through the metal tube, the float will rise due to the impact of the fluid, and its rising height is proportional to the fluid flow rate. The metal tube material of this flowmeter has been carefully selected and has excellent corrosion resistance. It can adapt to a variety of complex fluid media, whether it is a strong acid and alkali solution or an industrial raw material with a certain degree of corrosiveness, it can operate stably.
One of the significant advantages of this flowmeter is its high-precision measurement capability. The unique structural design and precision manufacturing process enable the measurement accuracy to reach ±1%, which can provide extremely accurate flow data for various industrial production processes, help enterprises optimize production processes, and avoid resource waste and product quality problems caused by improper flow control. At the same time, its wide range ratio can reach 10:1 or even higher, which can meet the measurement needs of different flow ranges, and can easily cope with monitoring from small flows to large flows.

Jiangsu Meian Automation Instrument Co., Ltd.'s leading products cover five major categories of products, including liquid level meters, temperature meters, flow meters, calibration instruments, and pressure meters. Among them, liquid level meters, pressure meters, flow meters, and temperature meters have passed the SIL safety certification, and the two categories of products, liquid level meters and pressure meters, have obtained explosion-proof certificates. They are favored by many domestic dealers and users, laying a solid foundation for the long-term development of Meian Instruments.

MAT-FZ Metal Tube Float Flowmeter:

Measuring range:	water (20℃) 6-150000L/h air (101.3kPa 20℃) 0.05-4000m°/h
Range ratio:	10:1 (special type 20:1)
Accuracy:	1.5 level 1.0 level
Working pressure:	DN15-DN50 PN4.0MPa (special type 25MPa) DN80-DN100 PN1.6MPa (special type 16MPa)
Jacket pressure level:	1.6MPa
Medium temperature:	standard type -80℃-220℃ high temperature type 400℃ PTFE lined type ≤85°C
Ambient temperature	pointer type -40℃-120℃ electric remote transmission type -30-65℃
Medium viscosity:	DN15 ≤5mPa.s(H15.1-H15.3)≤30mPa.s(H15.4-H15.9) DN25 ≤250mPa.sDN50-DN150 ≤300mPa.s
LCD display:	Instantaneous flow display range 0-50000 Cumulative flow display range 0-99999999
Output:	Standard signal two-wire system 4-20mA pulse signal minimum interval 50ms
Electrical interface:	M20*1.5, PG11, 1/2”NPT
Protection level:	IP65
Explosion-proof mark:	Intrinsically safe type ExialCT3-6 Flameproof type ExdlBT3-6
Connection method:	Standard type DIN2501 Flange special type User-provided flange standard threaded connection type DIN11851 or user-specified

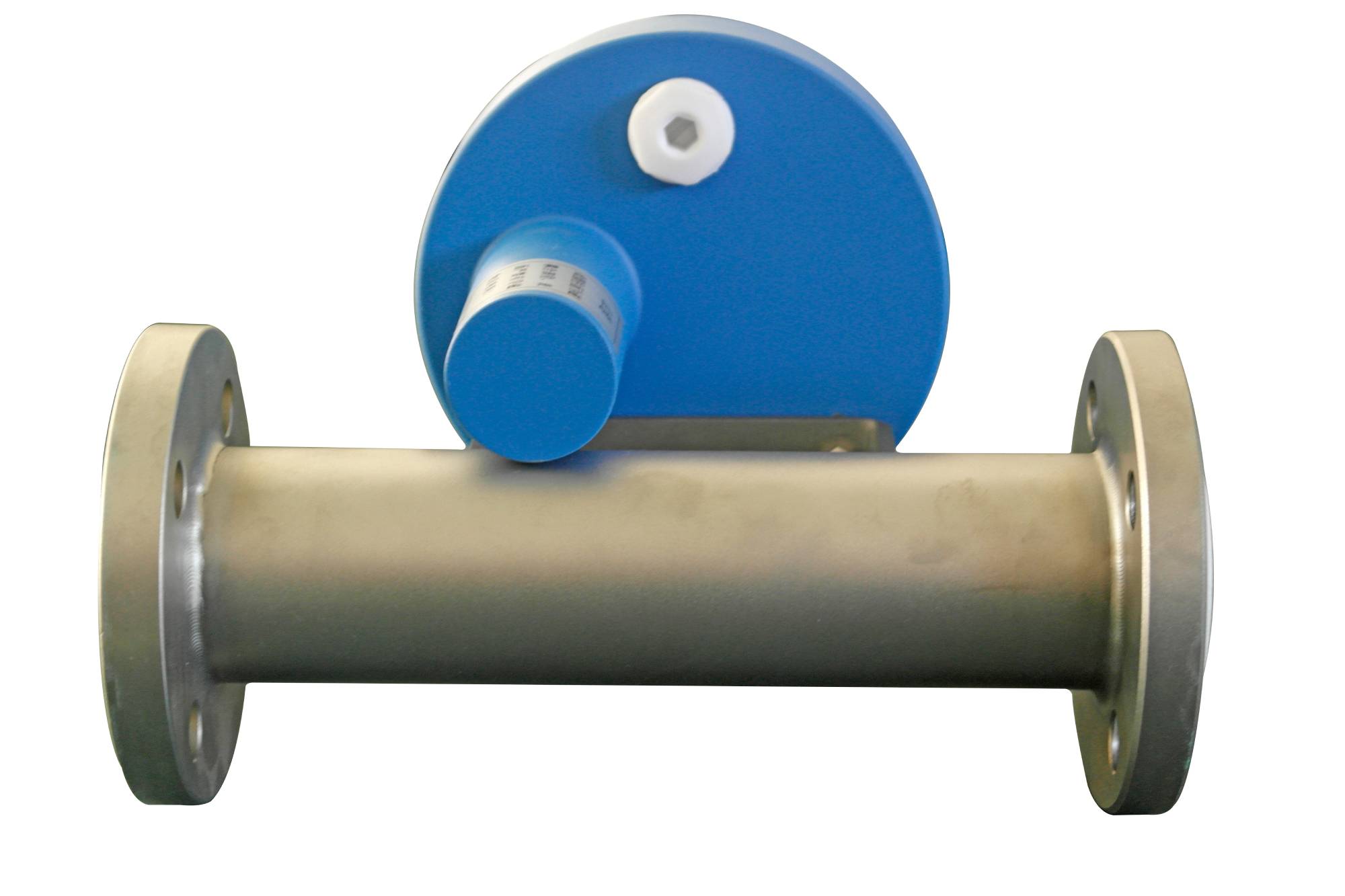

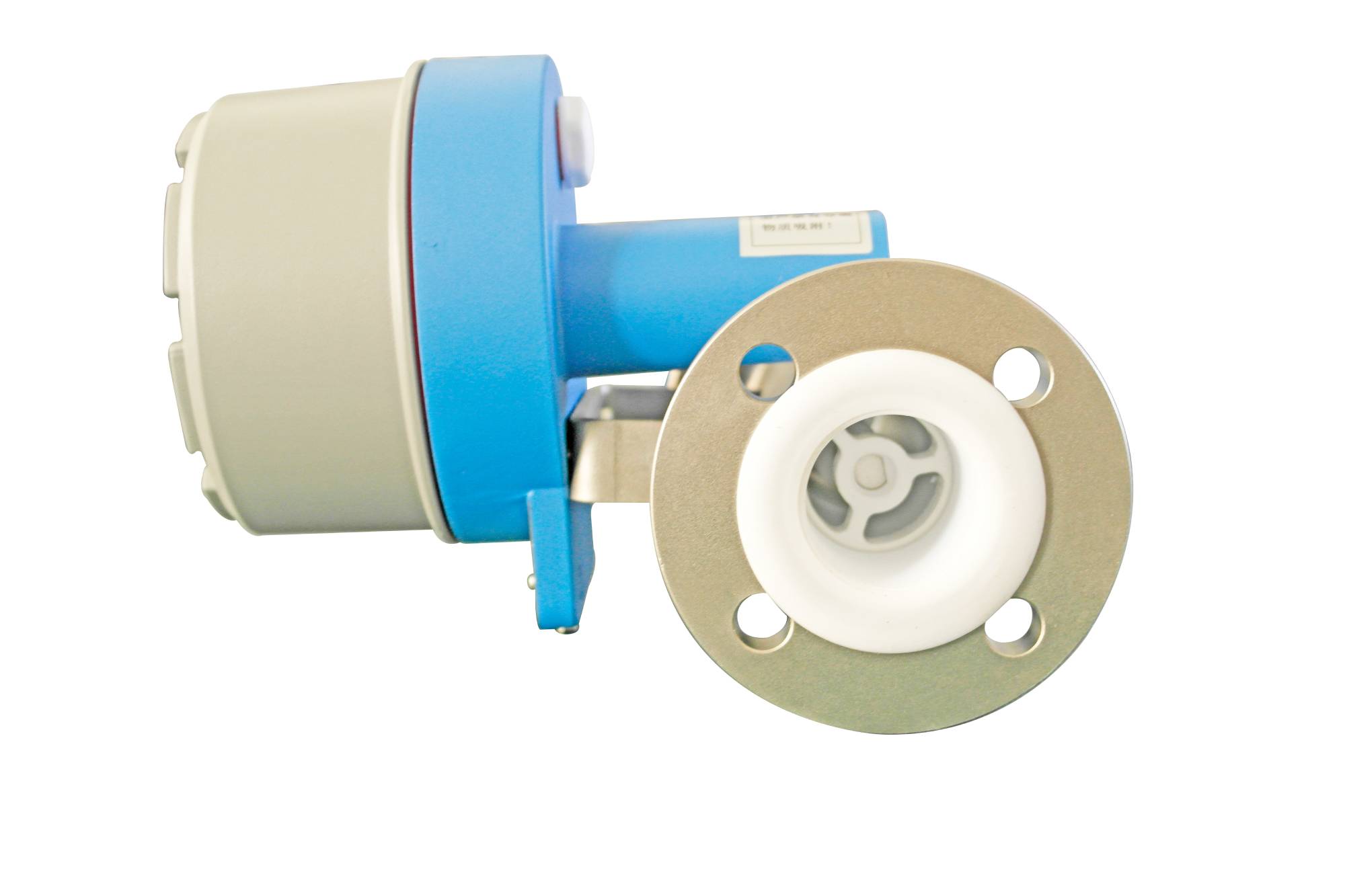

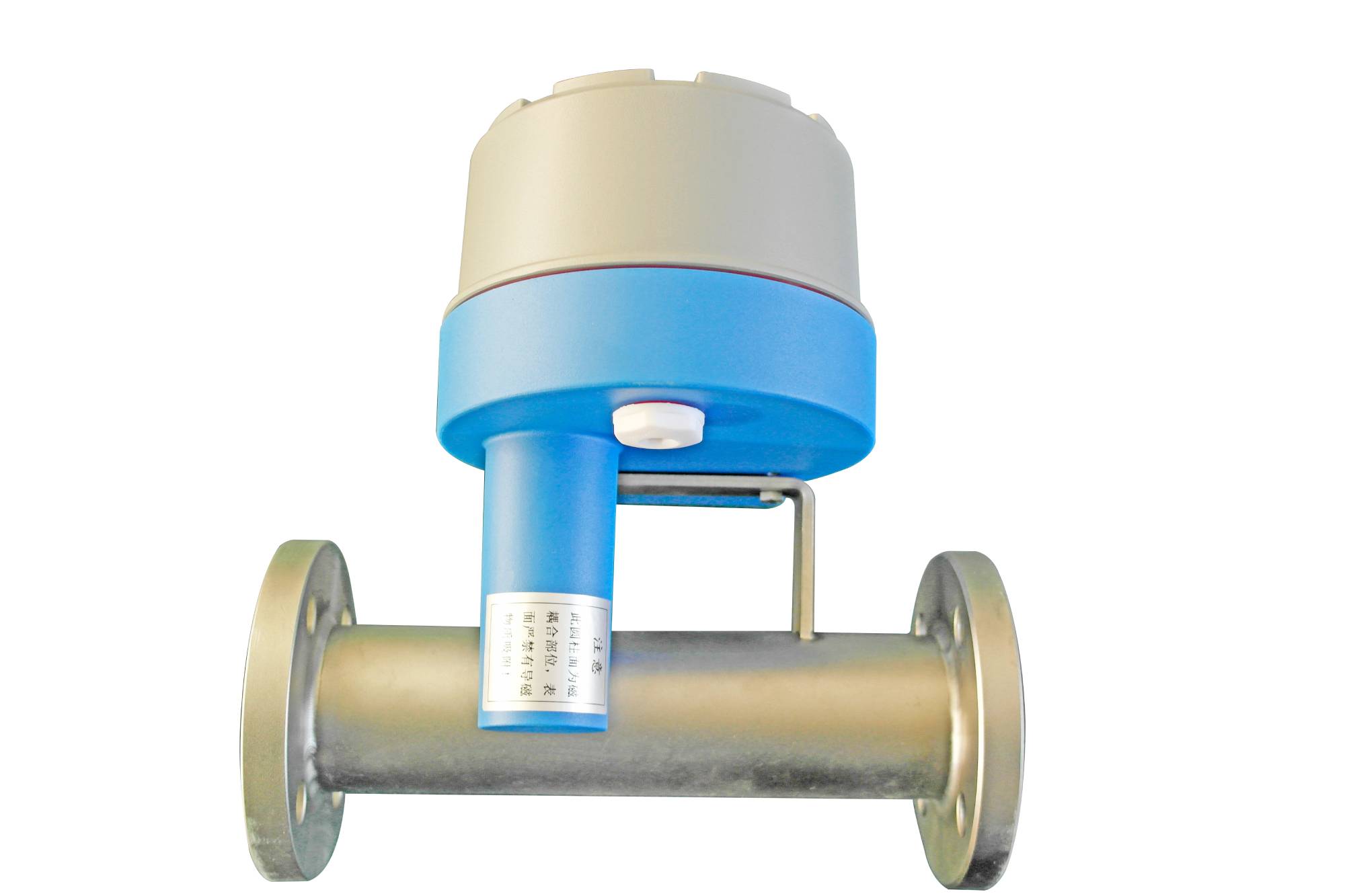

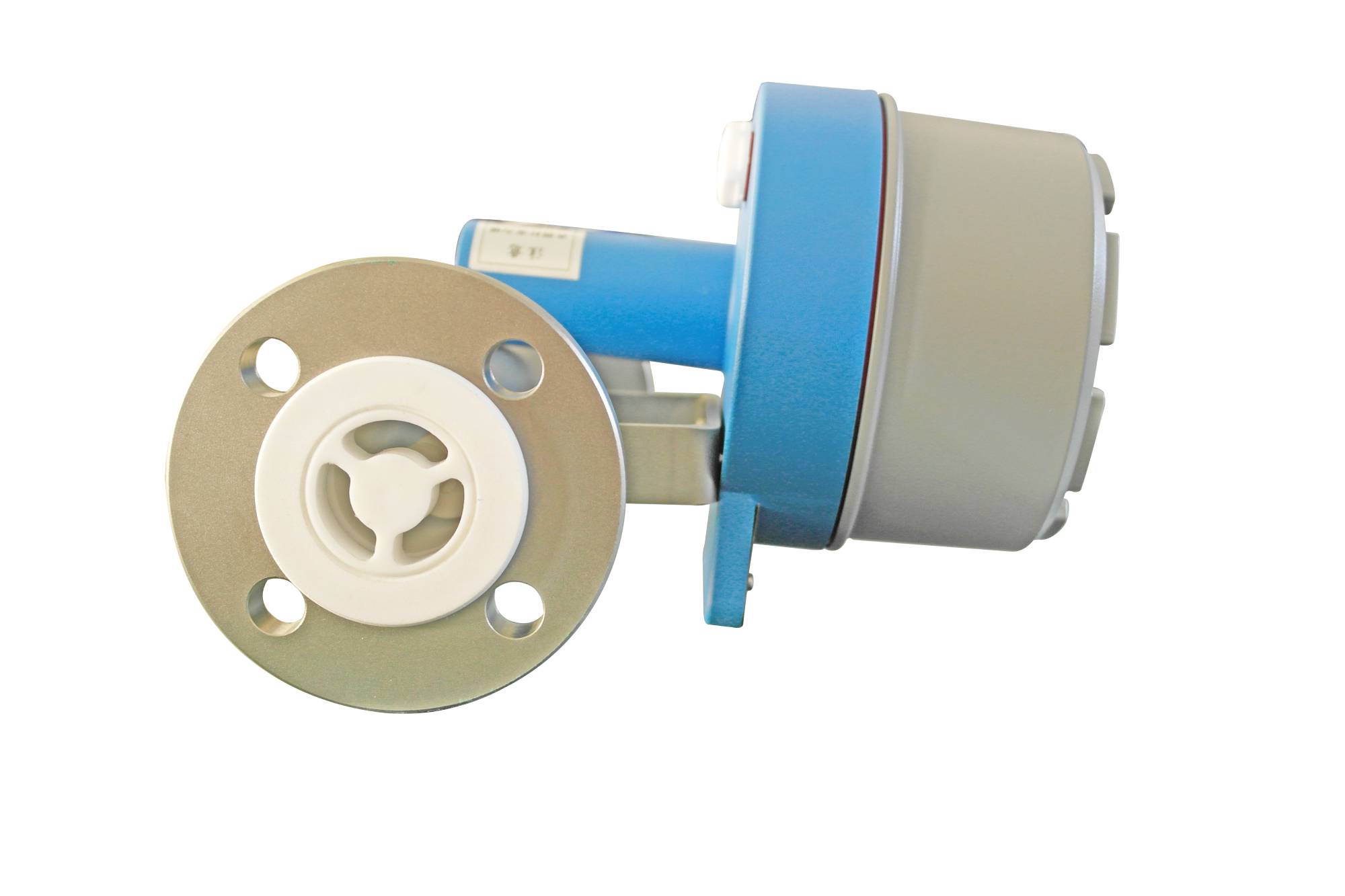

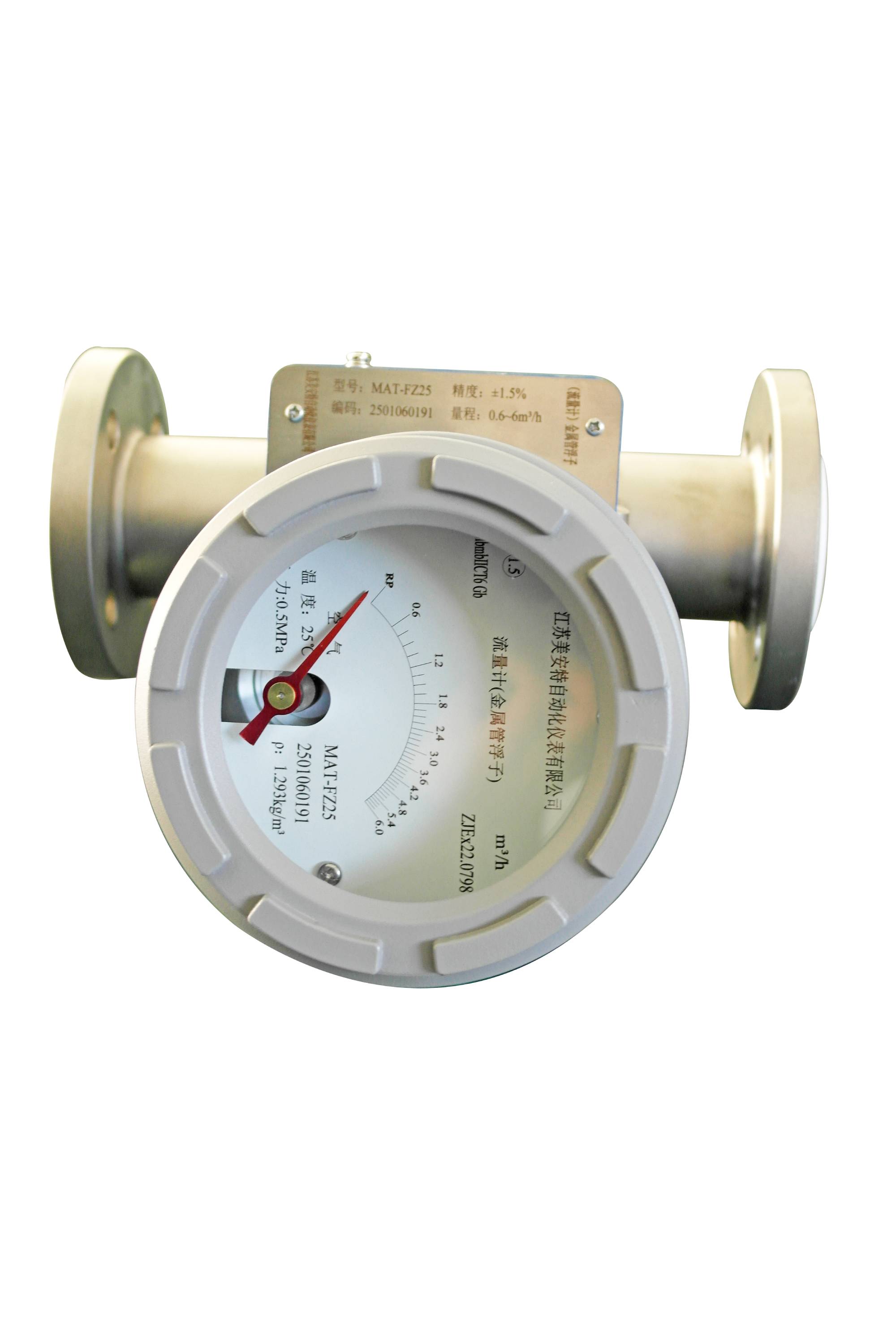

Detail Pictures:
