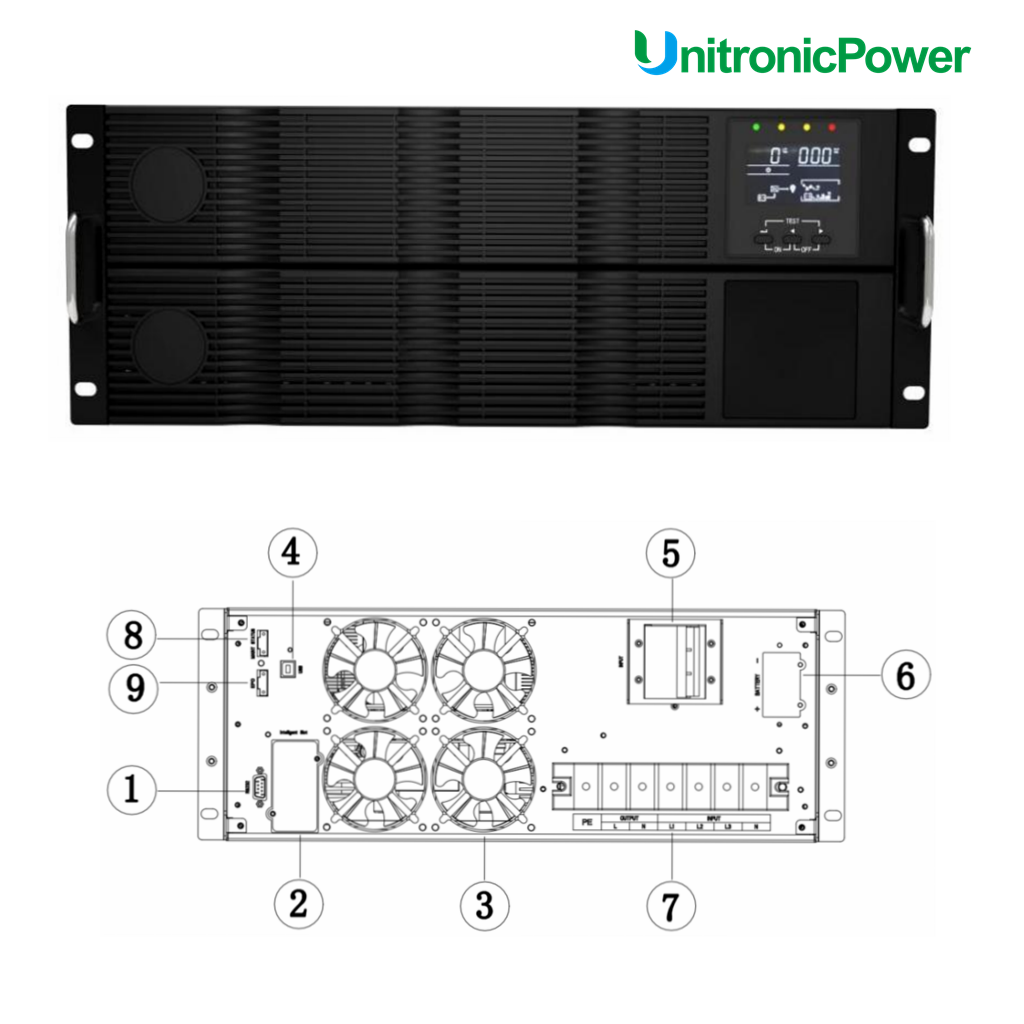

UNR11 Series High Frequency Online UPS: Reliable Power Protection for Your Critical Systems

The UNR11 Series High Frequency Online UPS is a state-of-the-art power protection solution designed to provide reliable and efficient backup power for your critical systems. With capacities of 15kVA/15kW and 20kVA/20kW, these UPS units are ideal for a wide range of applications, from small to medium-sized data centers to industrial environments. Featuring true online double-conversion technology and a wide input voltage range of 95Vac to 300Vac, the UNR11 Series ensures stable and clean power output, protecting your equipment from voltage fluctuations, power surges, and other electrical disturbances.

High Frequency UPS Key Features

- Rack/Tower Convertible Design: Offers flexible installation options to fit your specific space requirements.

- True Online Double-Conversion Technology: Provides continuous power conditioning and protection, ensuring a pure sine wave output with zero transfer time.

- High Output Power Factor: With an output power factor of 1 (kVA/kW), the UNR11 Series maximizes the efficiency and capacity of your power system.

- Wide Input Voltage Range: Accepts input voltages from 95Vac to 300Vac, making it compatible with a variety of power sources, including generators.

- Advanced PFC Technology: Achieves an input power factor of over 99%, reducing energy consumption and improving power quality.

- Intelligent Monitoring and Management: Equipped with a Smart RS232/USB port and optional SNMP/RS485/AS400 cards, the UNR11 Series allows for remote monitoring and management of your UPS system.

- LCD/LED Display: Provides real-time information on system status, battery health, and operating parameters.

- Battery Cold Start: Ensures your Single Phase UPS can start up and provide backup power even without utility power.

- Adjustable Battery Configuration: Supports 16 or 20 battery cells, allowing you to customize the runtime to meet your needs.

- ECO Mode Operation: Increases energy efficiency up to 98% in ECO mode, reducing operating costs while maintaining reliable power protection.

- Emergency Power Off (EPO): Provides an external switch interface for safe and quick shutdown in emergency situations.

- Low Noise Operation: Operates at a noise level of ≤55dB, ensuring a quiet environment even during operation.

Tower UPS Technical Specifications

- Model: UNR1115KL (15kVA/15kW) and UNR1120KL (20kVA/20kW)

- Input Voltage Range: 95Vac to 300Vac

- Frequency Range: 40-70Hz

- Output Voltage Precision: ±1%

- Output Frequency: 50/60Hz ±0.1%

- THDu: ≤2% (linear load); ≤7% (non-linear load)

- Overload Capacity: Up to 150% load for specified durations in line mode and battery mode

- Efficiency: 93% in Line Mode, 92% in Battery Mode, and 98% in ECO Mode

- Battery Nominal Voltage: 192Vdc / 240Vdc

- Charge Current: 4A or 8A

- Communication Interface: RS232, USB, SNMP card (optional), AS400 card (optional), RS485 card (optional)

- Operating Environment: Temperature 0~40℃, Humidity 0~95% (non-condensing), Altitude up to 1000m without derating

- Dimensions: 440mm (W) × 651mm (D) × 173mm (H)

- Weight: 36kg (UNR1115KL) and 37kg (UNR1120KL)

Experience the reliability and efficiency of the UNR11 Series High Frequency Online UPS. Protect your critical systems with confidence and ensure uninterrupted power supply with this advanced Online UPS solution.
