Solar Light Tower

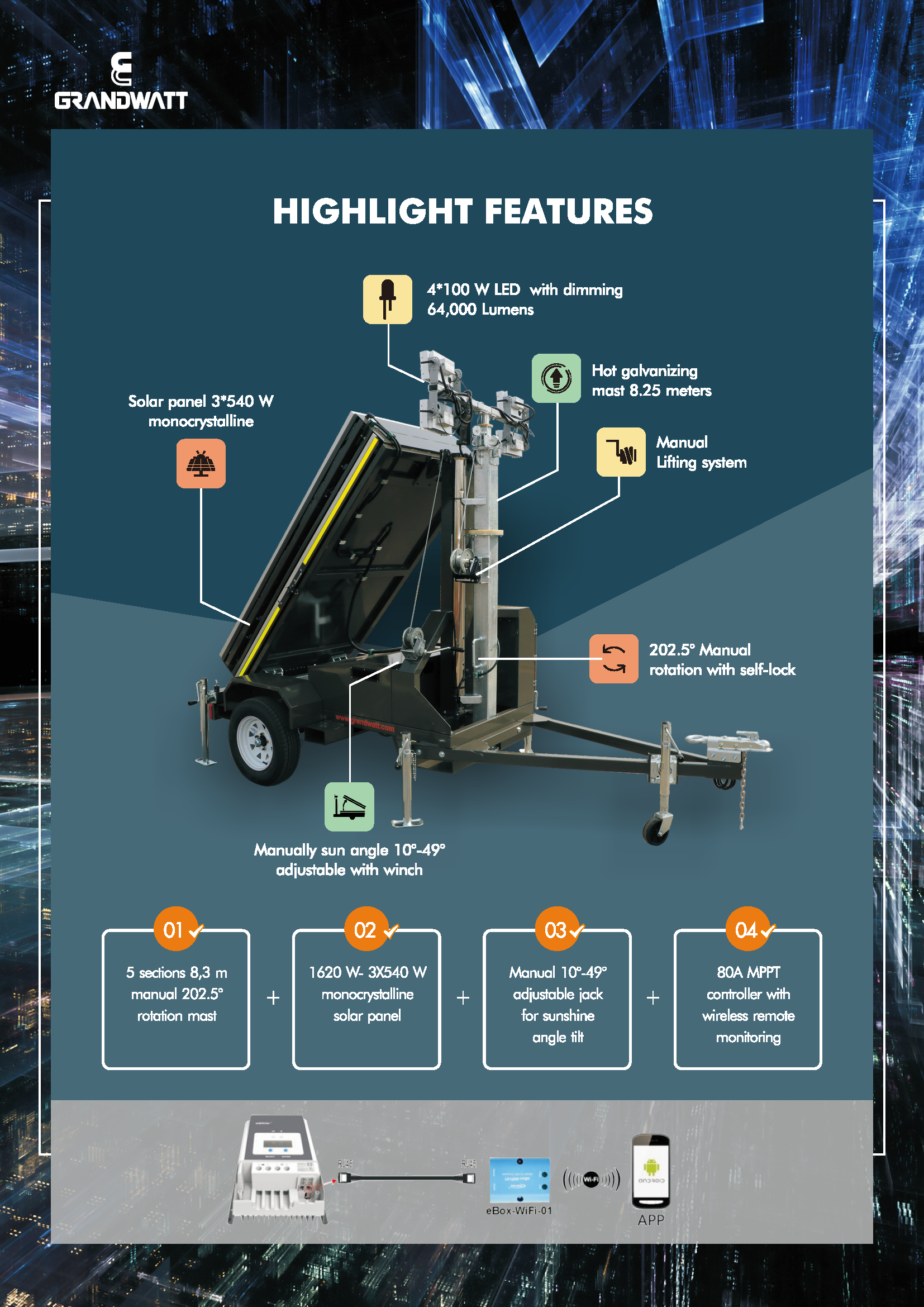

The Grandwatt innovative SX9-400 series solar light tower is the economical model of SX9 solar series which have very high cost performance, it allows site lighting to increase sustainability with zero CO₂ emissions and zero noise, zero operating costs (diesel fuel, maintenance, labor), it is 100% renewable energy, smaller and exquisite stronger structure can load more power solar panels and batteries, patented lifting mechanism can adjust tilt angle of solar panel to align with the best sunlight direct angle to achieve maximum solar yield. Equip with latest photovoltaic and energy storage controller system, very intelligent, it can be monitored by cell phone APP to set auto timer switches auto tum on-off the lights.
Now our products covers Environmental light tower (Solar light tower, Hybrid light tower and Portable light tower), Diesel light tower, Generator set, Solar system (Quickly layout solar power station and Mobile solar energy generator with off-grid). In addition, there are more types of light tower for you to choose from: LED light tower, Metal Halide Light Tower， Mining Light Tower, and hydraulic light tower, Vertical Light Tower, etc.
FEATURES
|
Solar Light Tower |
|||||
|
Standard Model |
SX9-R400/1620-4 |
SX9-P400/1620-4 |
SX9-R400/1620-6 |
SX9-P400/1620-6 |
|
|
Dimensions |
Trailer Length |
3,910 mm (12' 10") |
|||
|
Length for loading |
2,240 mm (7' 4") |
||||
|
Width |
1,650 mm (5' 5") |
||||
|
Max. length × Max. width |
3,580 mm (15'11") × 4,395 mm (14'5") |
||||
|
Height/Hight for loading |
2,740 mm (9')/ 2,515 mm (8'3") |
||||
|
Height fully extended |
8.25m ( 27'1" ) |
||||
|
Gross weight |
1,370 kg (3,020 lb) |
1,420 kg (3,130 lb) |
|||
|
Solar panel & battery system |
System voltage |
24 VDC |
|||
|
Solar panel system |
1620 W- 3*540 W Mono |
||||
|
Retractable panel system |
Manual sliding system with guide rail |
||||
|
Solar system sunshine tilt |
Manually 10°-49°adjustable with 2500lb winch |
||||
|
Gel battery |
400 Ah Gel battery |
200Ah Lithium battery |
600 Ah Gel battery |
300Ah Lithium battery |
|
|
Controller (Day time) |
1*80 A MPPT controller |
||||
|
Mast & Luminaire |
Luminaire |
400 W-4*100 W LED (DC 24V with dimming) |
|||
|
Luminous flux |
60,000 Lumen |
||||
|
Auto LED turn on-off |
Controlled by timer of MPPT controller |
||||
|
Manual LED turn on-off |
Circuit breaker |
||||
|
Mast style |
5 sections; 2,500 lb manual winch |
||||
|
Mast rotation |
Manual 202.5° with self-lock |
||||
|
Light tilt |
Manual |
||||
|
Trailer |
Suspension & brake |
Single leaf-spring axle without brake |
|||
|
Tow bar |
"A" style frame with a directional wheel |
||||
|
Forklift slots |
2 sides + rear |
||||
|
Stabilizing leg |
4 retractable jacks |
||||
|
Wheel |
16" rim with regular tire |
||||
|
Tow Coupler |
Switchable 2" ball coupler with 2½" pintle ring |
||||
|
Taillights |
Night, turning & stopping taillights |
||||
|
Max towing speed |
100 km/h (62 mph) |
||||
|
General Data |
Max. lighting hours with batteries fully charged |
10 hours (Theoretical data for reference only) |
14 hours (Theoretical data for reference only) |
||
|
Max. wind resistance (All solar panels retracked) |
20 m/s (45 mph) |
||||
|
Max. quantity for loading in 40' high cube |
7 |
||||
|
Optional parts or accessories |
DC power input |
DC 24V receptacle | |||
|
Battery Charger with cable & plug |
1 pcs |
||||
|
R-Regular configuration—Gel batteries; P-Premium configuration—Iron-lithium batteries |
|||||
|
Notes: 1. How full the batteries be charged by solar are completely depend on the weather, season and location. 2. For keeping the lighting hours you need, please adjust the lighting time of controller or LED load by the dimming knob as the weather & season. |
|||||
