LTP Series High Voltage Test DC Power Supply

Overview

The LTP series laboratory high voltage power supplies are high voltage power supplies specially designed for high-voltage laboratory applications. It adopts a 19-inch 2U standard chassis with a designed output power of 1KW and an output voltage range of 1KV to 60KV.

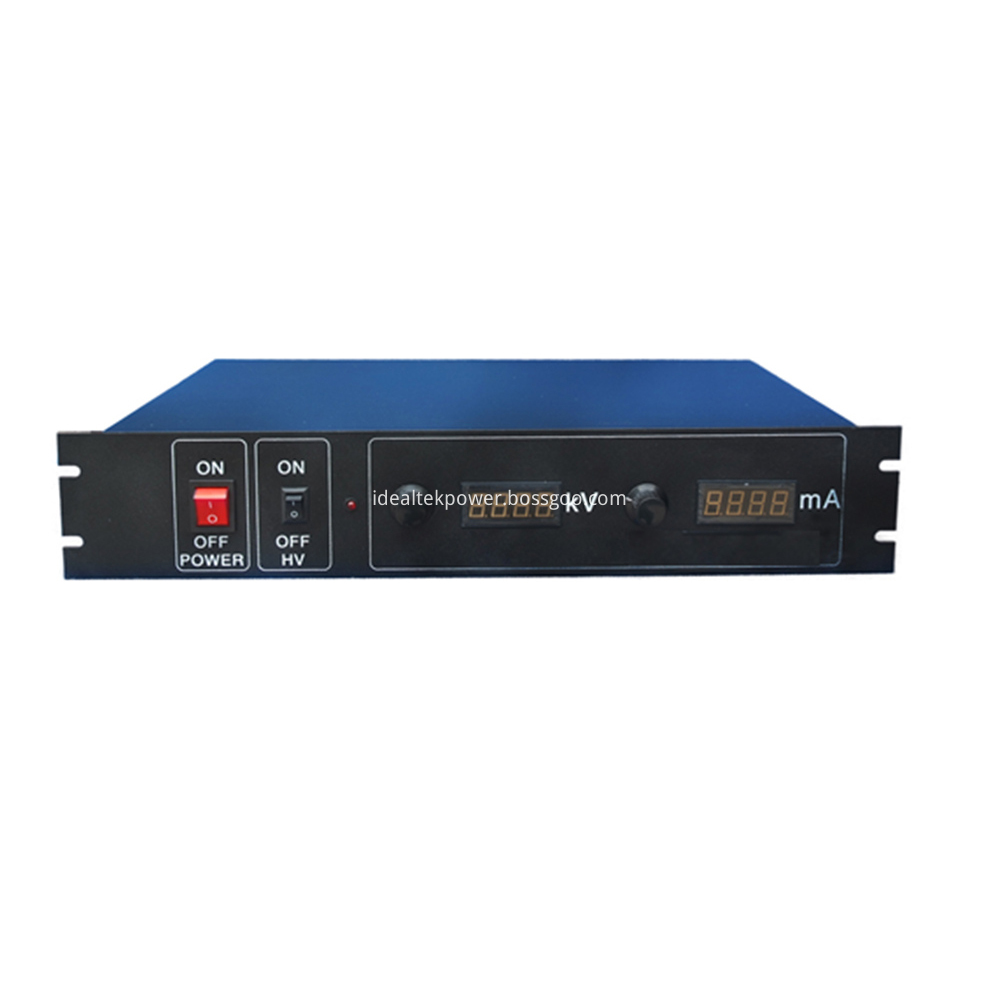

The LTP series high voltage laboratory power supplies are constant-voltage and constant-current controlled high-voltage power supply. The output voltage and current can be continuously adjusted from 0 to the rated value through the control potentiometer on the front panel, and the output display is through high-resolution KV and mA LEDs. The high-voltage lab power supplies are also equipped with a DB9 interface as standard, and 0-10V signals and dry contact signals can applied to the interface to achieve control and monitoring of the power supply.

This series lab high voltage power supplies has high precision, high stability and low ripple output characteristics. The stability and ripple can reach the level of 0.1%. At the same time, the power supply is equipped with complete protection functions to deal with sparks, short circuits, overloads, and loads discharging conditions.

At present, the high voltage laboratory power supplies are mainly used for laboratory high-voltage test benches, electrostatics, insulation testing and electrophoresis applications.

Features

l CV/CC working modes.
l Output voltage & current adjustable from 0 to 100%
l Stable & Low ripple HV output.
l 4-digit LED digital meters display.
l Perfect & Complete protection functions
l Compact structure, small size and light weight.

Safety Cautions

1. This power module has HV output, only professional person could operate it.
2. Please make sure of good grounding before operation.
3. Capacitor charging power supply has low internal stored energy, please NO no-loading working.
4. Keep power module clean and good ventilation.
5. HV input & output connectors or HV load no touch anything.
