Gantry Robot With Lathes
2 year ago

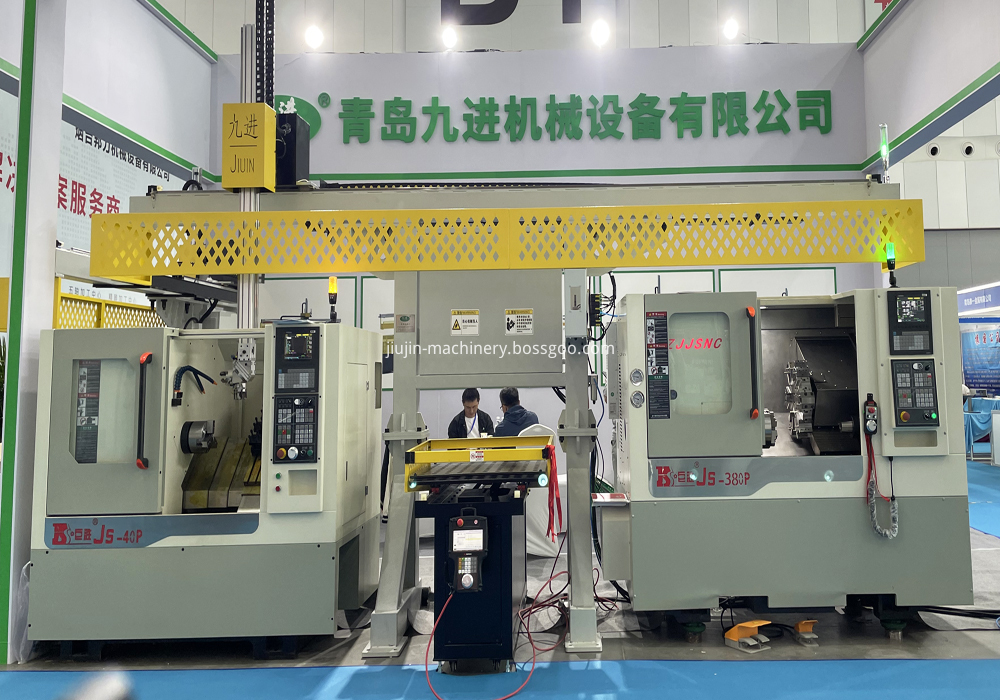

Three-Axes Automatic Gantry Loader For Two Lathes
Product Advantages
Qingdao Jiujin Machinery's Three-Axes Automatic Gantry Loader For Two Lathes have many advantages below.
1. Efficient production: It can handle two workpieces at the same time, greatly improve the production efficiency.
2. High precision: Utilizes high-precision sensors and control systems can ensure the precision and quality of products.
3. Strong flexibility: can adjust and adapt to different workpieces to realize multi-process processing of workpieces.
4. High safety: Truss Manipulator can automate the production process, reduce the risk of manual operation and improve production safety.
5. Saving labor cost and good sustainability: Truss Manipulator can automatically complete the production process, reducing the demand for manpower and reducing labor cost; At the same time, the robot can work continuously, without rest and vacation, to ensure the continuity and stability of production.
6. Superior quality and best price.
This series of Automatic Gantry Loader can combine with gripper and claw, CNC Machine Tools as well as stock bin to realize high automatic in mechanical field.
Technical Parameters
|
Technical Parameters |
Unit |
GL345 |
|
Travel of X Axis |
mm |
4500 |
|
Travel of Y Axis |
mm |
200 |
|
Travel of Z Axis |
mm |
1200 |
|
Speed of X Axis |
m/min |
0-120 |
|
Speed of Y Axis |
m/min |
0-90 |
|
Speed of Z Axis |
m/min |
0-90 |
|
Payload |
kg |
0.5-50 |
|
Repeated Positioning Accuracy |
mm |
±0.05 |
|
Stock bin/Silo |
- |
Matrix Type |
|
Drive model |
- |
Servo+ Reducer |
|
Remark |
- |
Technical parameters can be customized on actual situation basis and customer's workpiece. |
