Product Overview

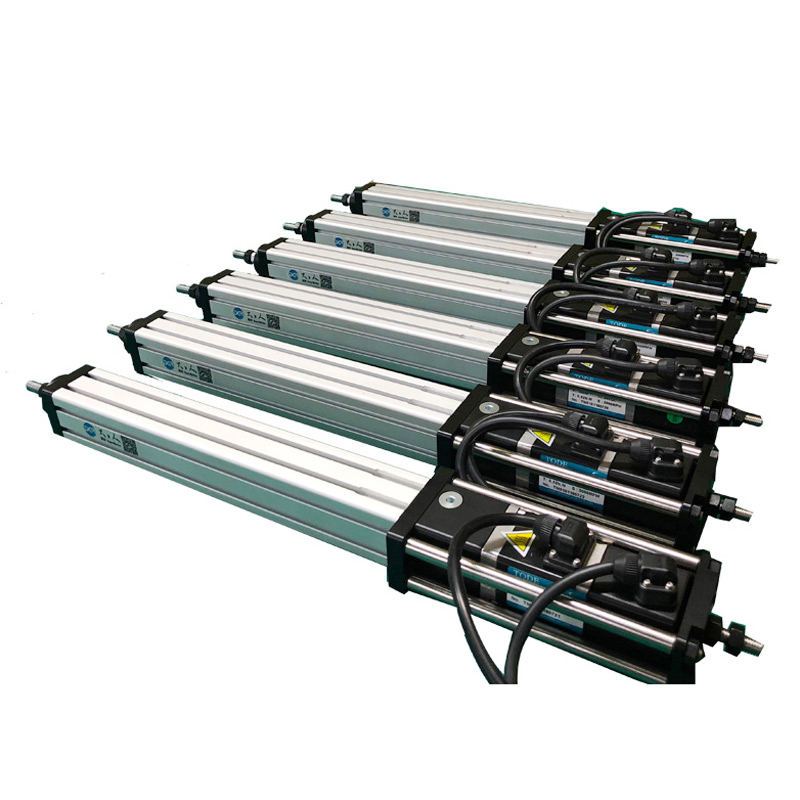

Electric Cylinder: Anti-rotation EC series Electric Cylinder,will not twist fractionally due to its rotation proof structure. Its major components are simple, shares with little space and is easy to maintain; Servo Electric Cylinder is of low cost and can be applied in some fields that only need to use lower thust.When it comes to High Precision Linear Actuator, our product stands out from the rest. With a commitment to quality, exclusive production, and advanced technology, we offer a solution that is second to none. Invest in our model and experience the benefits of a reliable, efficient, and high-performing equipment for your  needs.

Here are the two parameters for your reference,

  Maximum rated speed reaches 200mm/s,

  Effective stroke 10-500mm.

please send us your specific requirements before we make the quotation: The stroke, the speed, the thrust and your application scene.

According to its shape, you can choose Inline style or Parallel style for different usage.

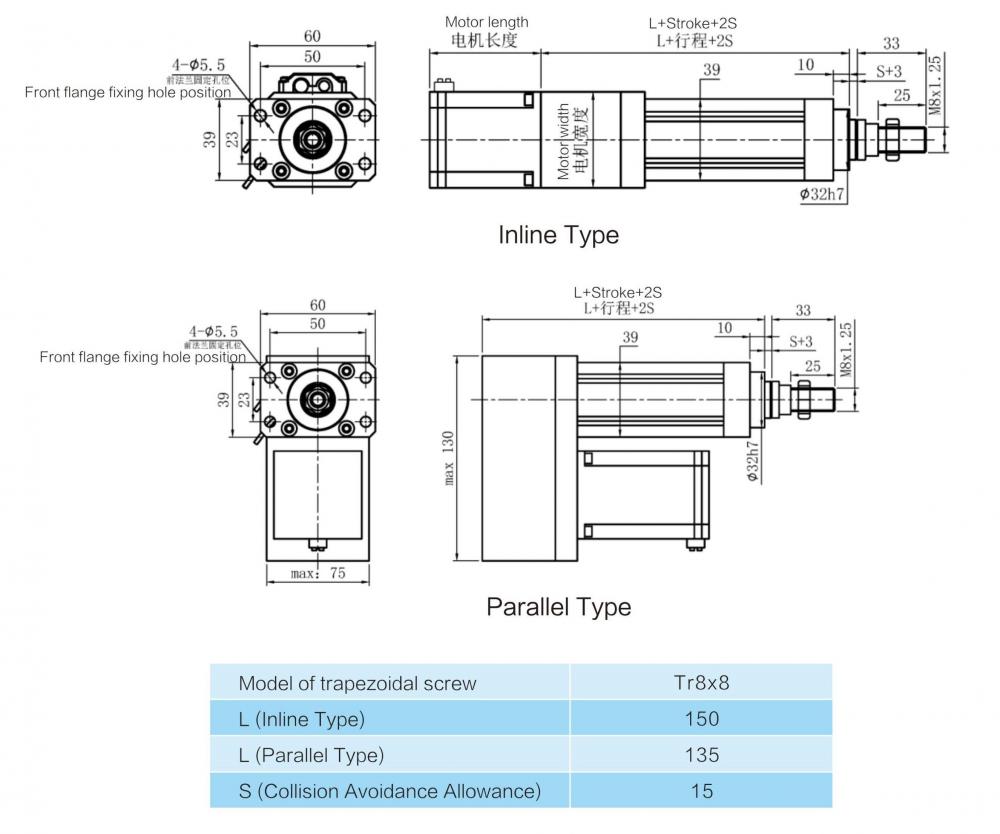

Dimension

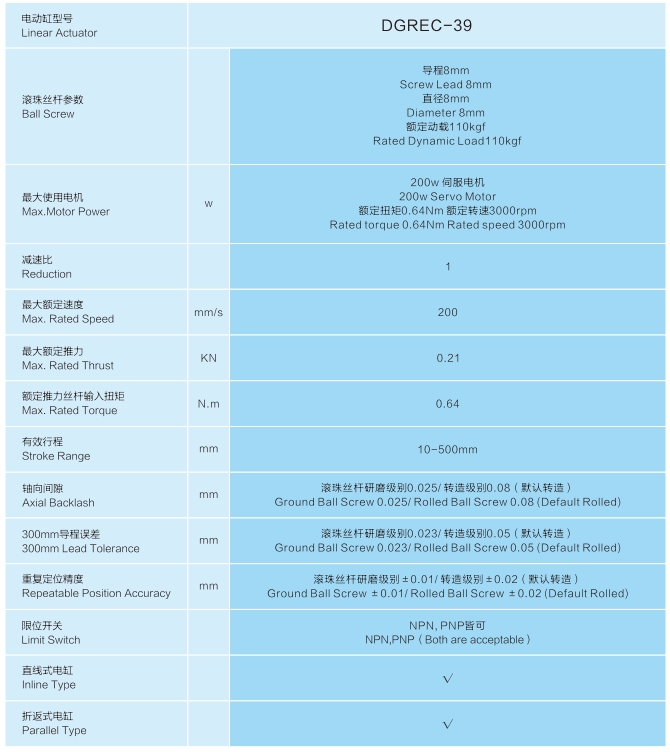

Technical Specification

Note:
1. If you need drawings and life of ball screw, please consult customer service for details;
2. If the maximum stroke exceeds 500mm, it is recommended to add a guide device;
3. The parameters may be affected by different brands of motors, please consult customer service for details.
