Product Overview

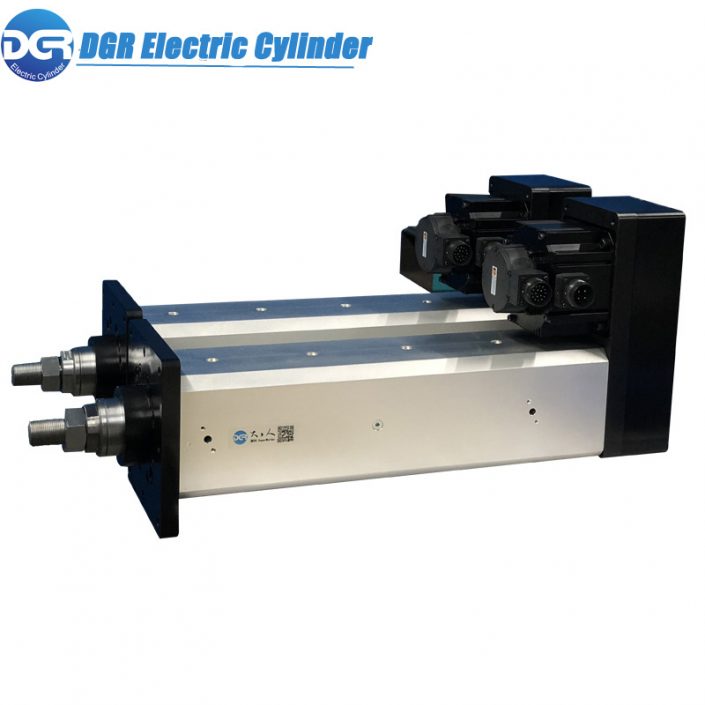

Electric Cylinder DGRST120 is the last model among the standard cylinders. DGRST120 electric linear servo actuator can work with ball screw, DC motor, which is high precision, also is the standard model of DGR. The High Tonnage Linear Actuator is equipped with features such as closed-loop servo control, low maintenance cost, and flexible configuration.

The ball screws are used for the frequent operation of electric cylinders, the duty cycle is ensured to be greater than 50% or continuous operation.

The motor power can be 400w and 750w in reference of different usages. It received high praise from our loyal customers at home and abroad. When you send us the email, please check out the following parameters carefully (the speed, the stroke and the force).

DGRST120 Electric Cylinder with ball screw:

Its maximum rated speed reaches 800 mm/s,

    effective stroke 10-1500mm.

We have two types of shapes :one is inline shape(installed inside) and parallel (outside in line with the motor)

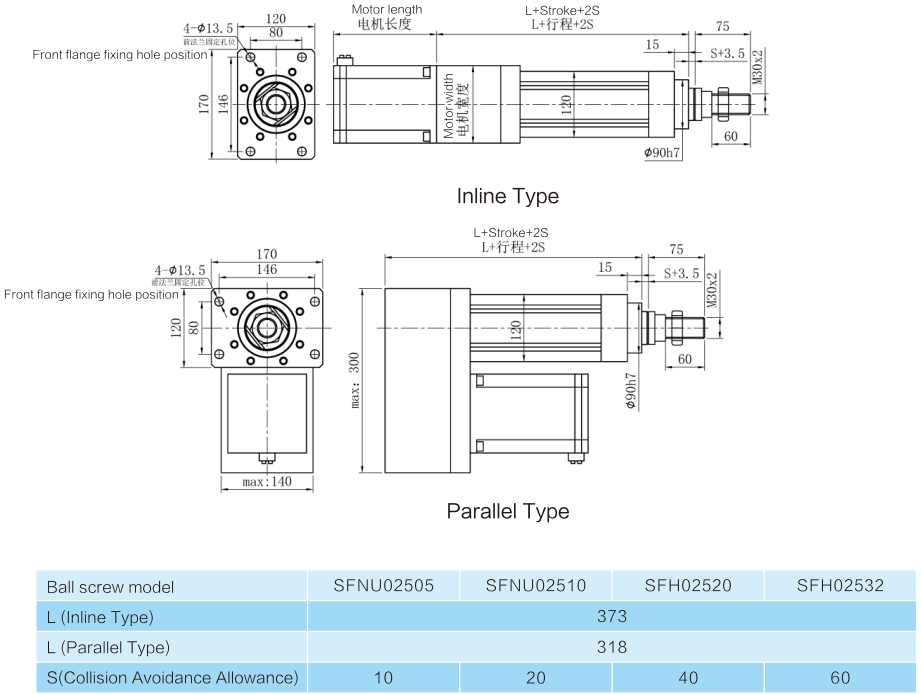

Dimensions

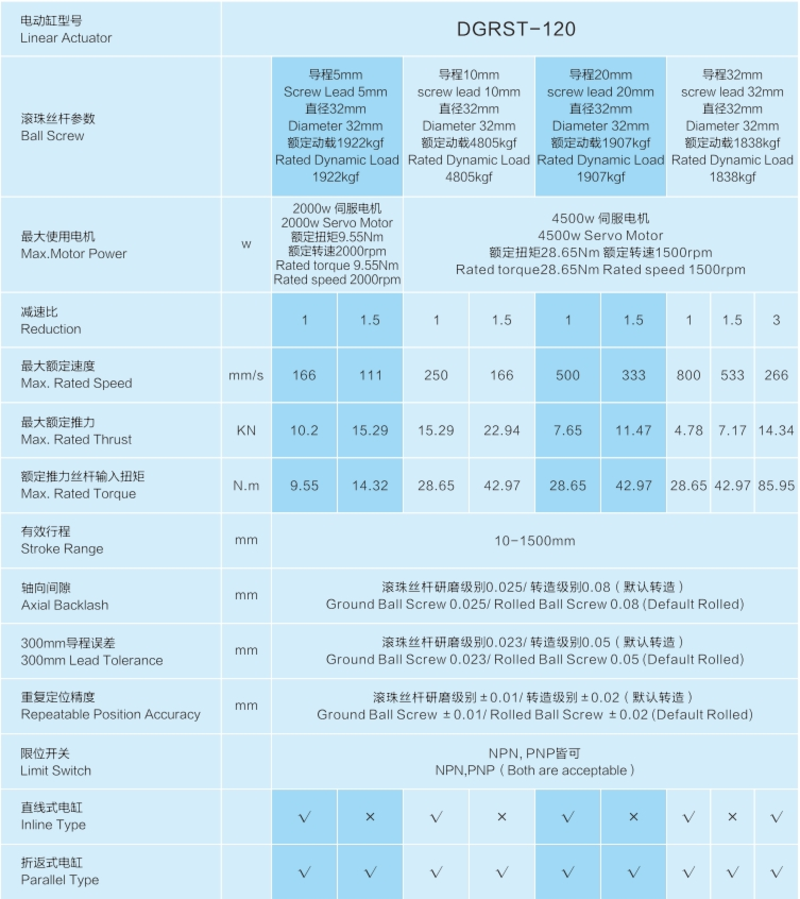

Technical Specifications
