Product Overview

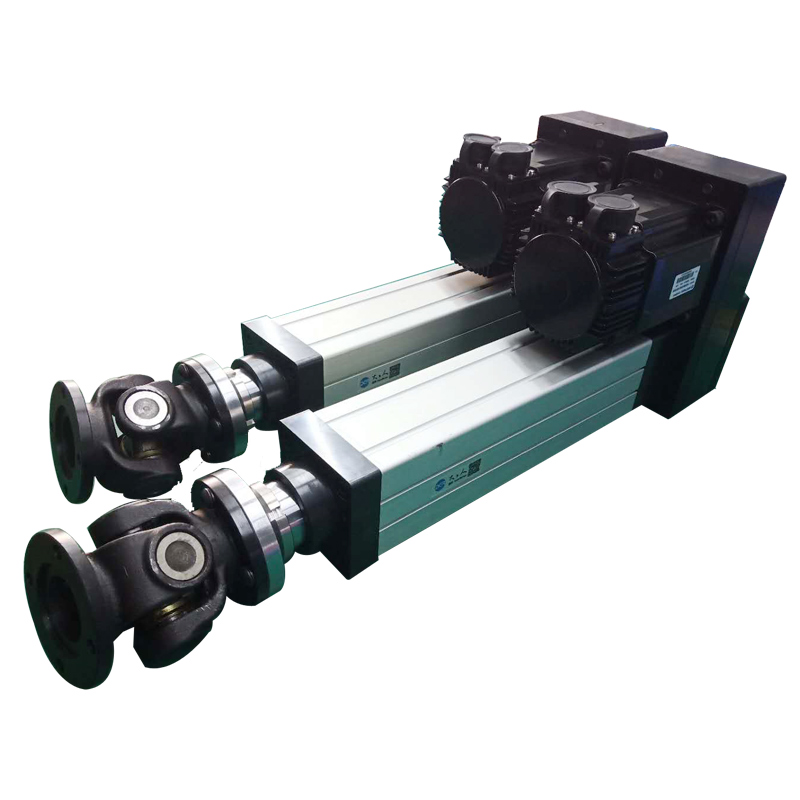

Electric Cylinder DGRST55 provide a force 3KN for Automatic guider vehicle, medical facility, 400w servo motor with controller 12-24V DC/AC 220V. ST shows standard type of cylinder. We are committed to design and produce very standard and widely-used model for you to choose; The cylinder comes with anti-rotation structure by default; The electric cylinder with ball screw

The primary function of standard electric cylinders is to move loads in a straight line with high precision and repeatability. They can be used for pushing, pulling, lifting, lowering, or positioning objects in a controlled manner. The linear motion provided by these cylinders is often preferred over other methods like hydraulic or pneumatic systems due to their greater accuracy and controllability.

Electric linear actuation solution

Its maximum rated speed reaches 250mm/s,

effective stroke 10-800mm. According to its shape, you can choose Inline type or Parallel type for different usage.

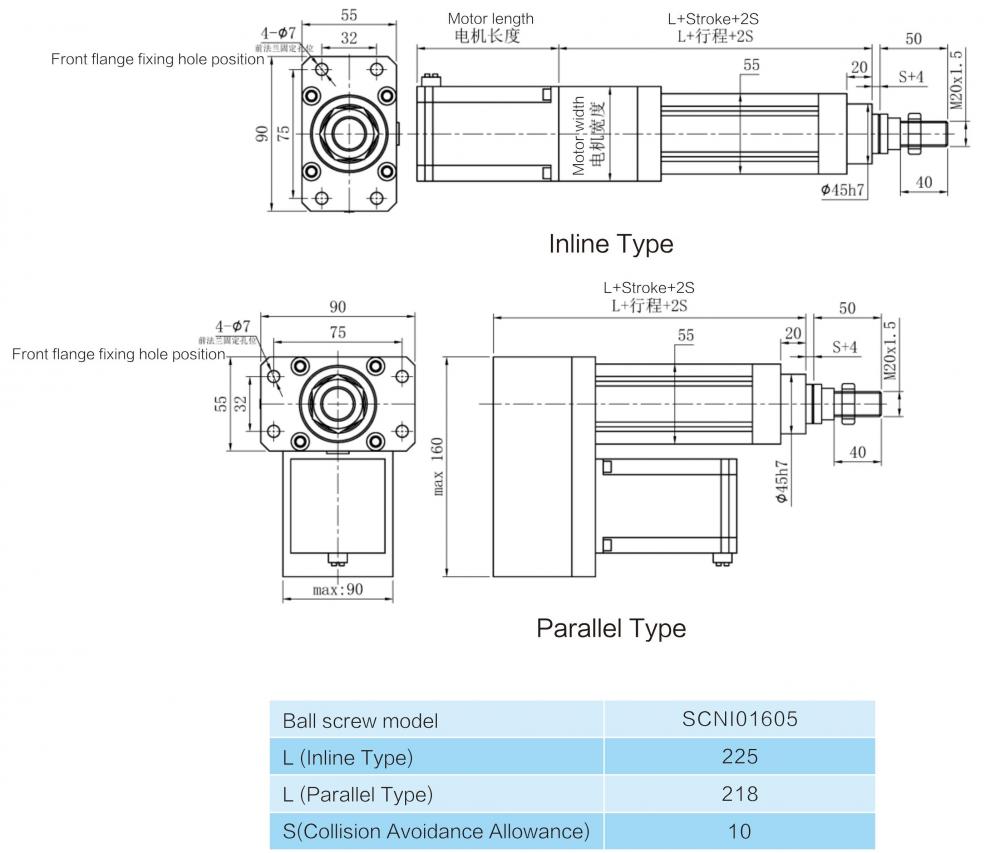

Dimension

Note: When the stroke is ≥ 300mm, the length L of the cylinder body will increase the guide length

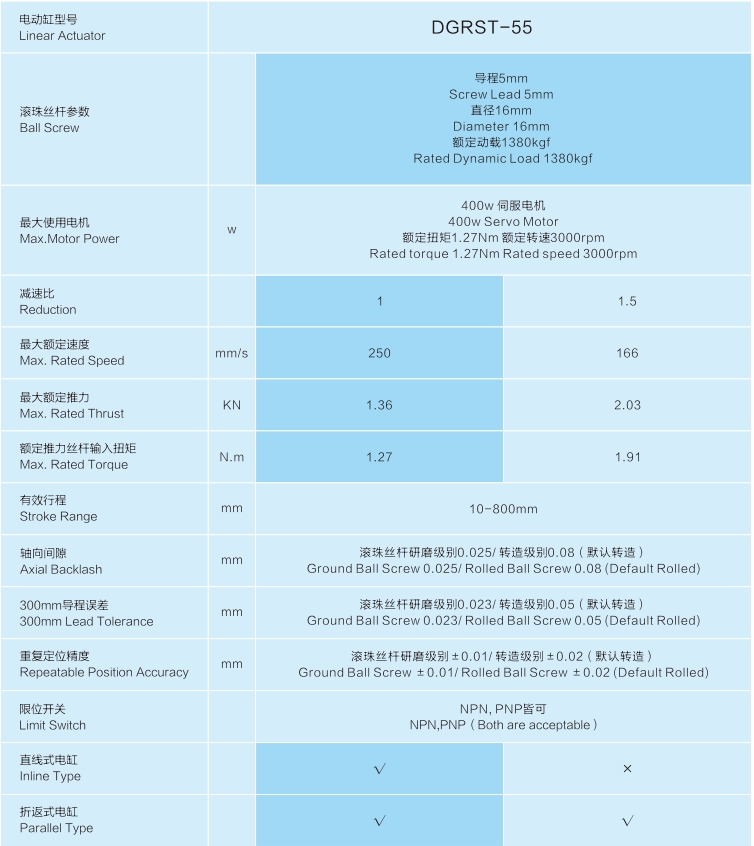

Technical Specification
