Product Overview

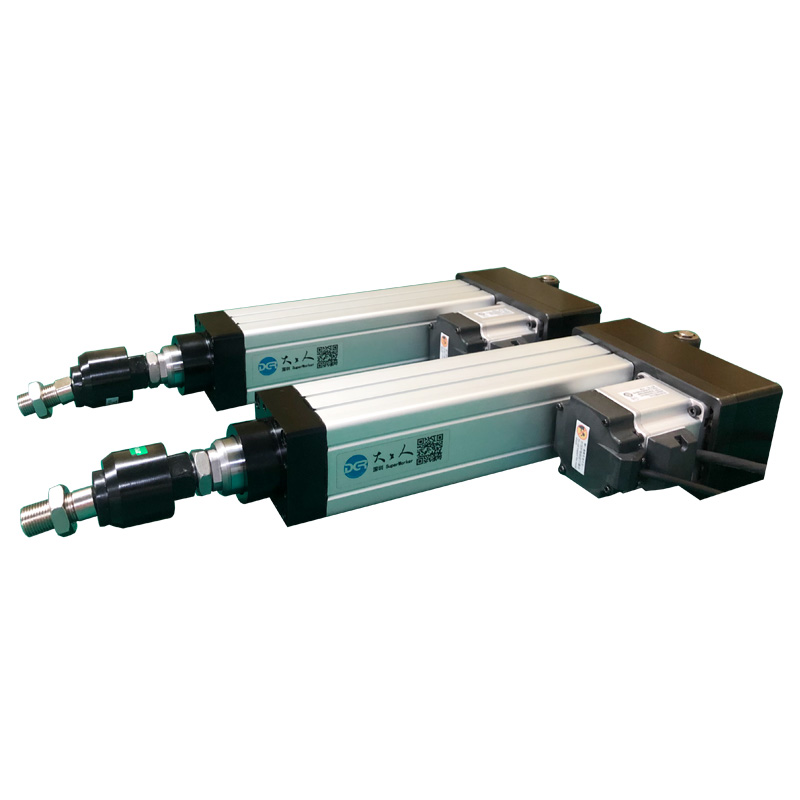

Electric Cylinder DGRLT-51 belongs to light duty type of cylinder.It adopts simple but precise design model,offering customers a nice experience in practical use. It’s perfect for TV lifting, robotics, and other automatic application. High Speed Electric Cylinder: Many useful applications are waiting for you to explode.

The length of the cylinder can be adjusted by the practical parameters; it comes without an anti-rotation mechanism by default, but the function can be added; The Lead Screw Servo Linear Actuator has well-performed servo motors and solid thrust rod, which can be operated in harsh working conditions for a long time. Our ball screw adopted the trending planetary ball screw to stimulate more possibilities.Before make the quotation to you, we might need your more accurate information about the speed, the stroke, and the force.

DGRLT-51 High Thrust Force Linear Actuator:

Its maximum rated speed reaches 250mm/s,

     effective stroke 10-1000mm.

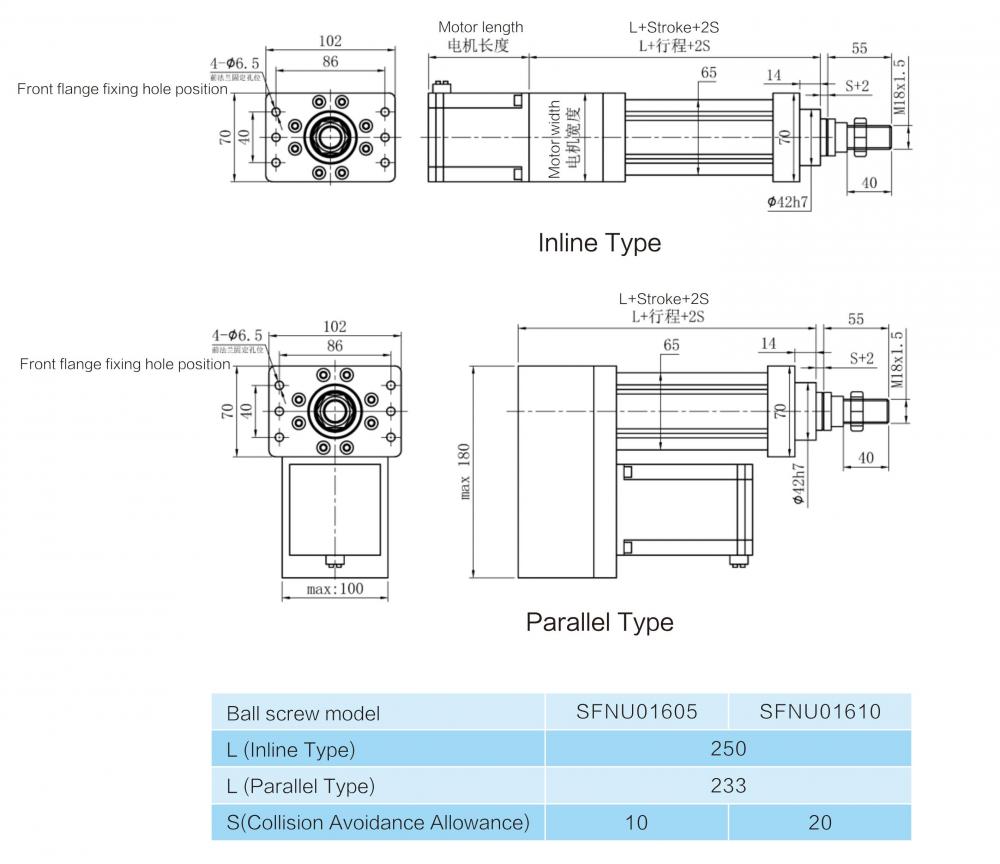

Dimension

Note: When the stroke is ≥ 300mm, the length L of the cylinder body will increase the guide length

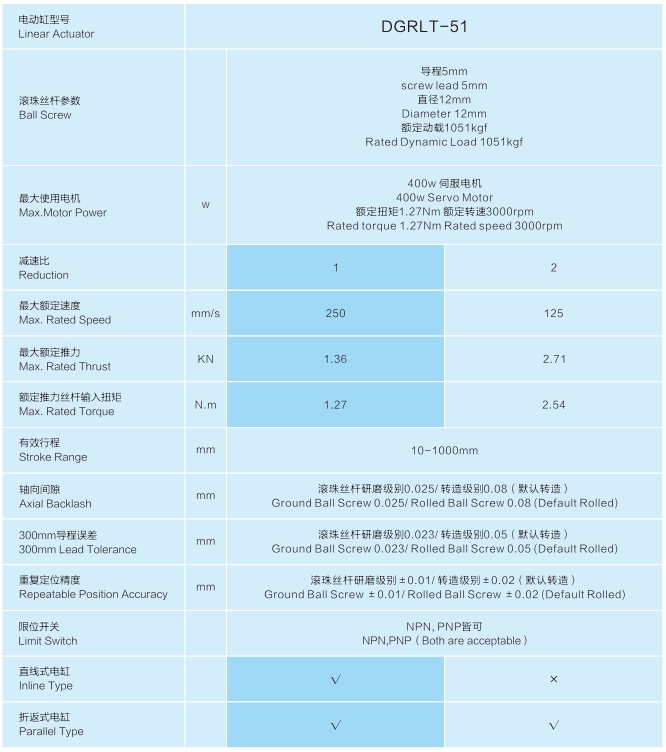

Technical Specification
