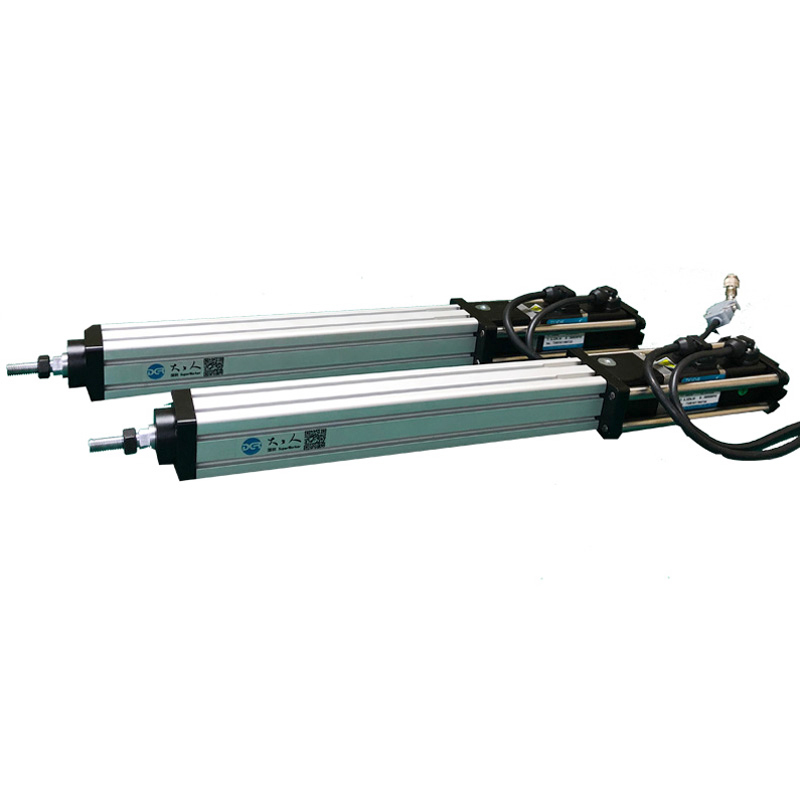

Product Overview

Electric Cylinder DGREC65 is one of the economical model of cylinder; It features potentiometer position feedback which allows for positioning control in synchronized motion. The model is installed with anti-rotation structure. DGREC65 High Tonnage Linear Actuator is made of aluminum profile material, square shape, which has beautiful appearance and texture,with more sturdy and stable performance. This electric cylinder is compact in size and lightweight, making it easy to install and integrate into various systems. It is equipped with a high-quality motor that ensures smooth and precise movement. The motor is also energy-efficient, helping to reduce power consumption and operating costs. According to its shape, you can choose Inline type or Parallel type for different usage.Electric linear automation for applications(Robotics, Medical Equipment, Automatic Appliance and so on.

Its  rated speed is around 250-500 mm/s,

      effective stroke 10-1200mm.

The three parameters to the quotation(the force,the speed and the stroke)

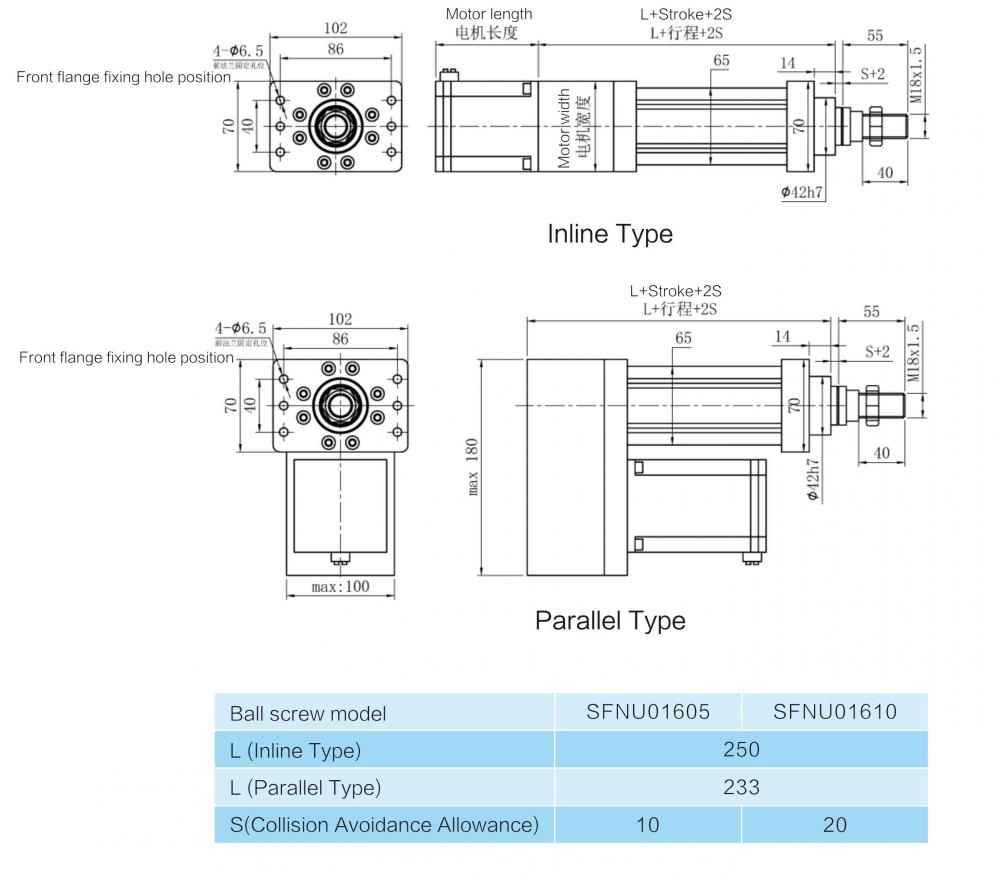

Dimension

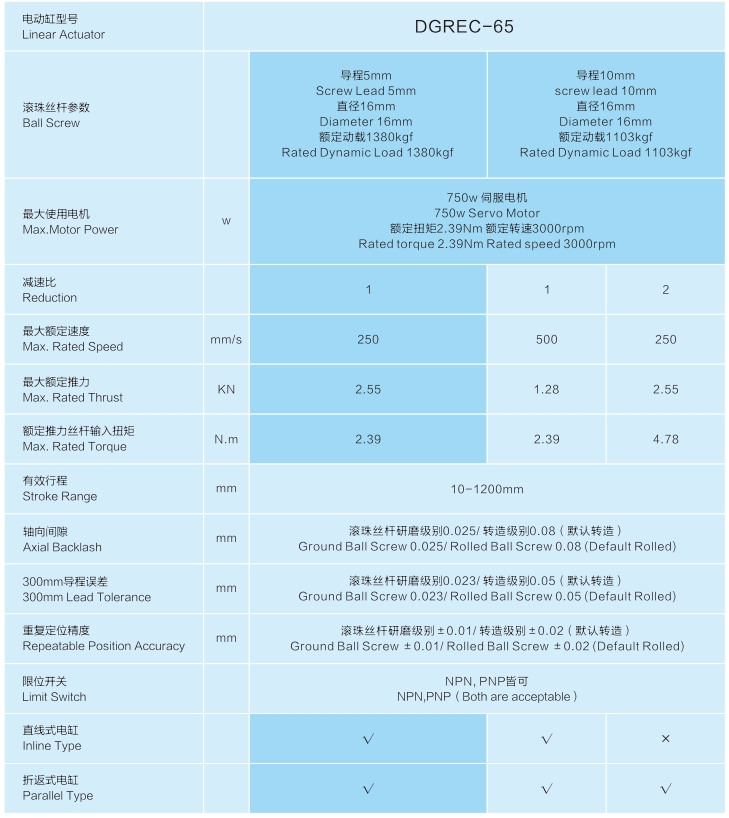

Technical Specification
