Product Overview

Electric Cylinder DGRLT-75 is intended for light duty and comparative medium force applications.24V 48V DC Linear Actuator helps maximize the efficiency of solar panels. DGR solar tracking actuators are equipped with ball screws for longer life at continuous duty cycles;It adopts simple but precise design model,offering customers a nice experience in practical use; it comes without an anti-rotation machanism by default, but the function can be added; DGRLT75 is made of aluminum profile material,square shape, which has beautiful appearance and texture,with more sturdy and durable performance than the general ordinary ones. According to its shape, you can choose Inline type or Parallel type for different usage.

DGRLT75 High Thrust Force Linear Actuator:

Its maximum rated speed reaches 250-1000mm/s,

     effective stroke 10-1500mm.

Note: If you are interested in our products, please feel free to contact us and tell us your needs.(inluding the speed, the stroke and the force), and state your using application. We'll customize the exclusive plan for you.

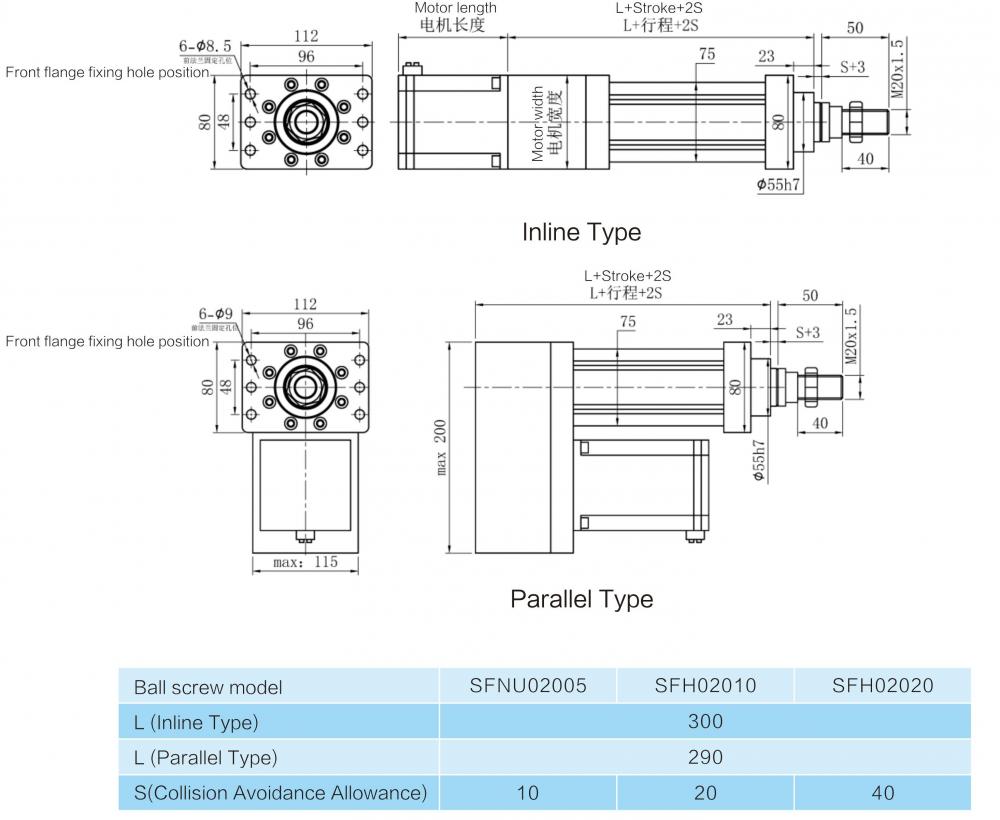

Dimension

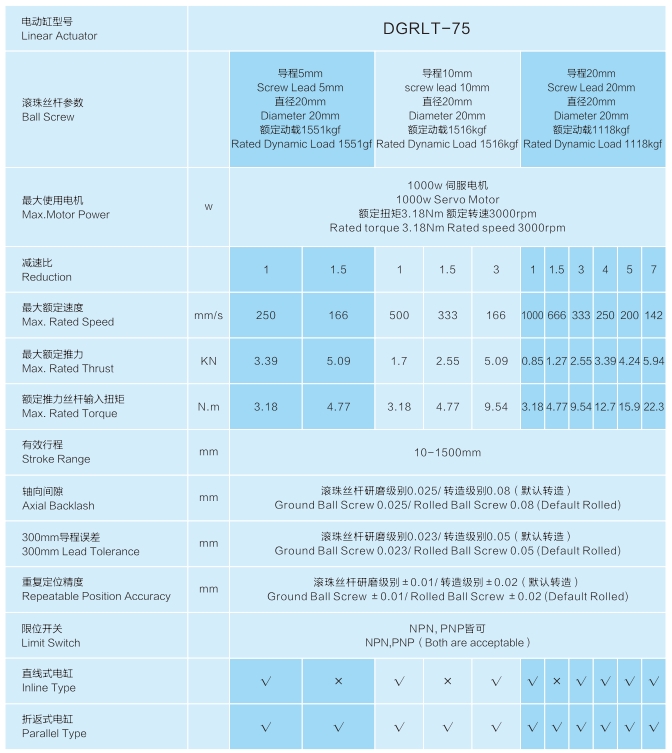

Technical Specification
