Product Overview

Electric Cylinder DGRST75 has advanced protection capability. The machine can be worked in humid environment without getting rusty and malfunctioned. Inside the cylinder body is a pair of high-strength tapered roller bearings that meet both thrust and tension conditions; The cylinder comes with anti-rotation structure by default; DGRST75 is made of aluminum profile material, square shape, which has beautiful appearance and texture,with more sturdy and durable performance than the general ordinary ones. Standard electric cylinders are versatile devices that provide precise and controlled linear motion. Their features like accuracy, repeatability, and ease of use make them ideal for a wide range of applications in different industries.

Electric cylinder for medical equipment:

Its maximum rated speed reaches 250-1000mm/s, effective stroke 10-1000mm. According to its shape, you can choose Inline type or Parallel type for different usage.

Electric Cylinder with ball screw:

Our cylinder can be customized, and inform us your exact needs(the stroke, the speed and the force)

Dimension

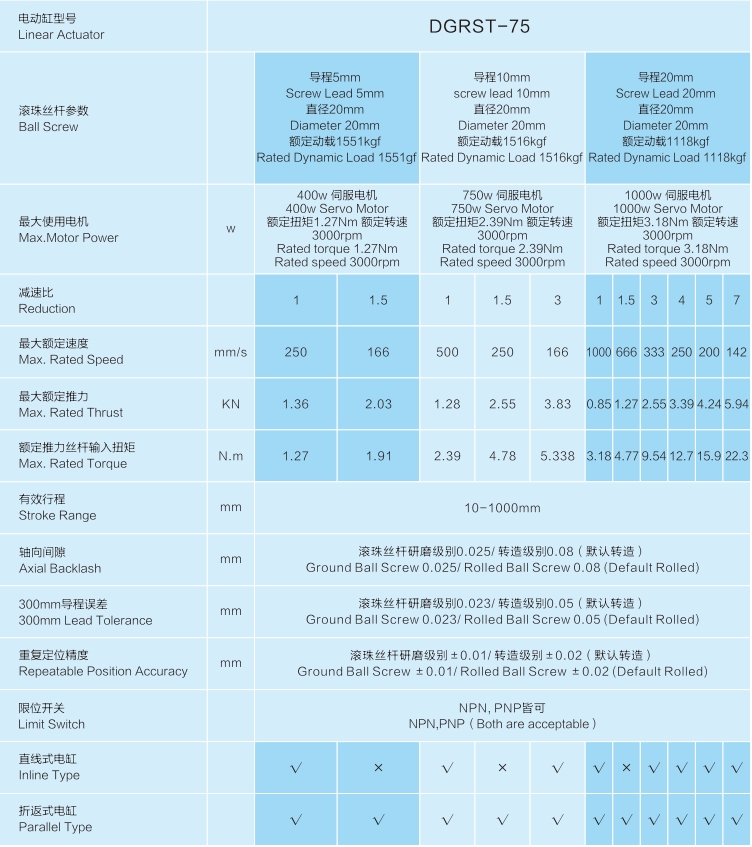

Technical Specification
