Product Overview

Electric Cylinder DGRST85 provides a force higher than 10KN, mostly used for lifting emergency alert lights on the truck; it’s powered by DC12V power supply in vehicles. The cylinder comes with anti-rotation structure to maintain the general operation; Long stroke Linear Actuator has its simple but delecate appearance, made of aluminum.

The key characteristic of standard electric cylinders is their ability to provide precise and controlled linear motion. They are typically equipped with a motor, a lead screw or a ball screw, and a guidance system. The motor generates rotational motion, which is then converted into linear motion by the screw mechanism. The guidance system ensures smooth and accurate movement.

DGRST85 Optional Standard ST Series Electric Cylinder with ball screw:

Its maximum rated speed reaches 250-800 mm/s even more,

effective stroke 10-1200mm. According to its shape, you can choose Inline type or Parallel type for different usage.

Three things you need to consider(the stoke, the speed, the thrust force)

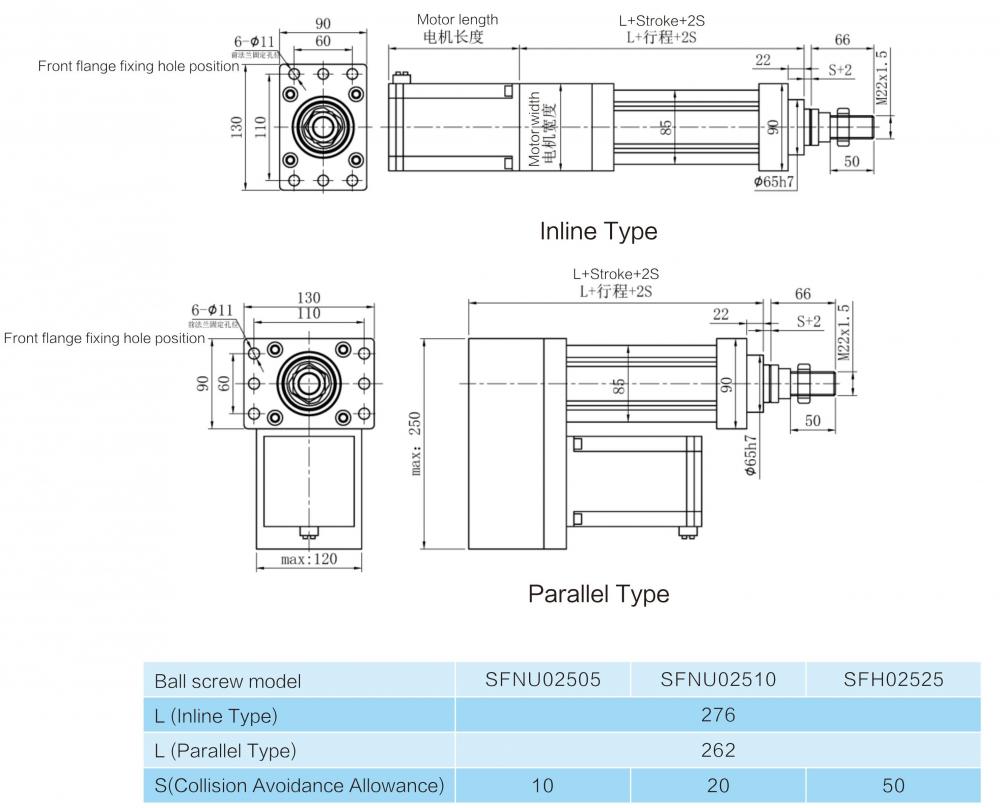

Dimension

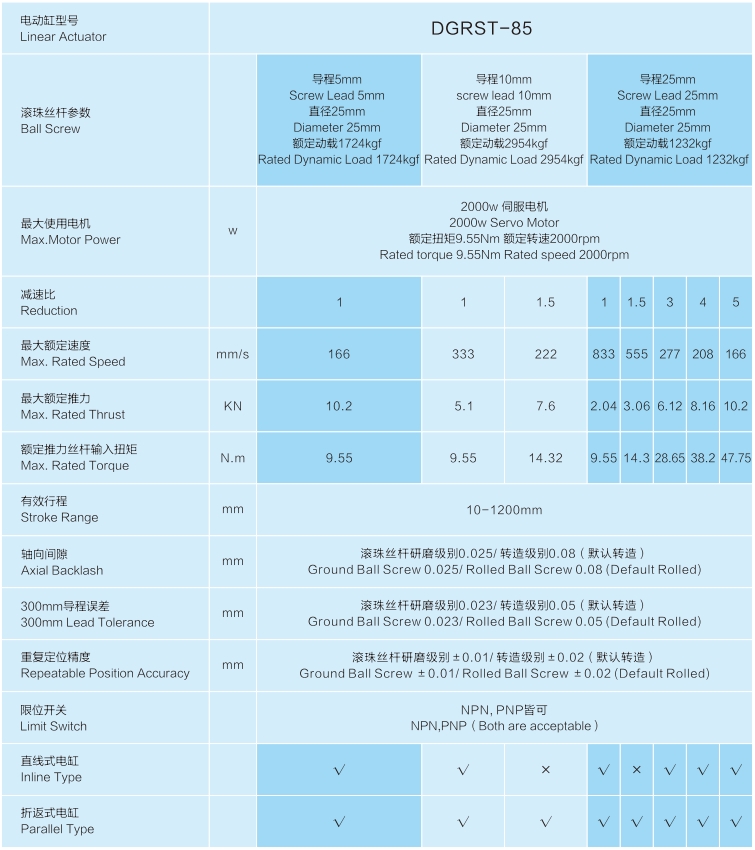

Technical Specification
