Product Description
Superworker full-auto bundling machine for various pipes(like round/squared/rectangular type), except single packaging machine, we also provide tailored integrated pipe piles stacking and baling solutions, complete packaging line, one-stop experience.

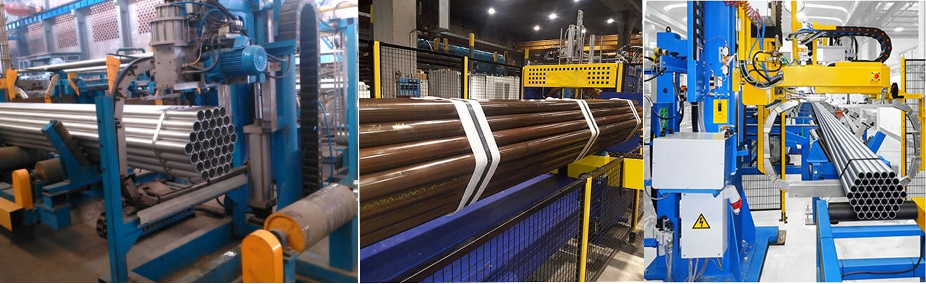

1. Steel pipes strapping ways
a. Strapping machine locked, pipes moving.
b. Strapping machine moving, pipes locked.
c. The strapping machine is overhead.

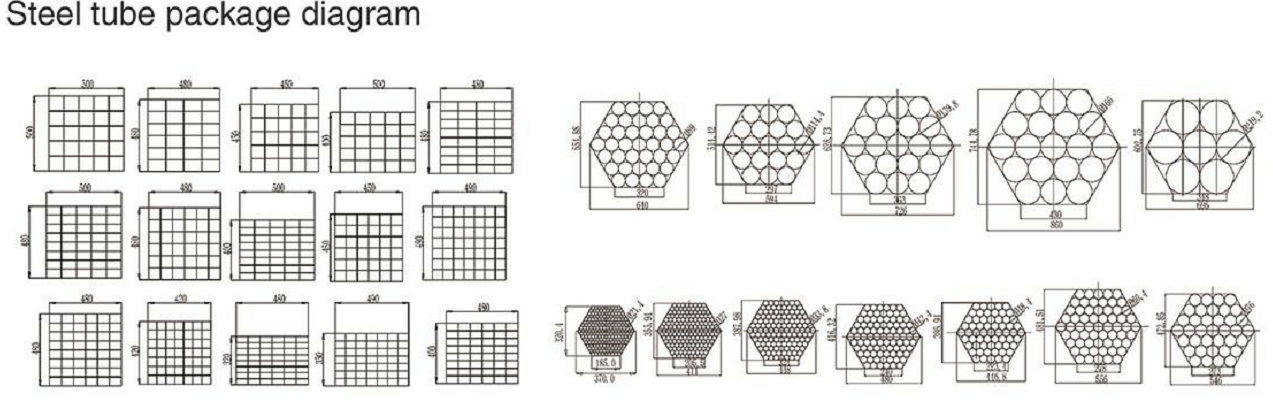

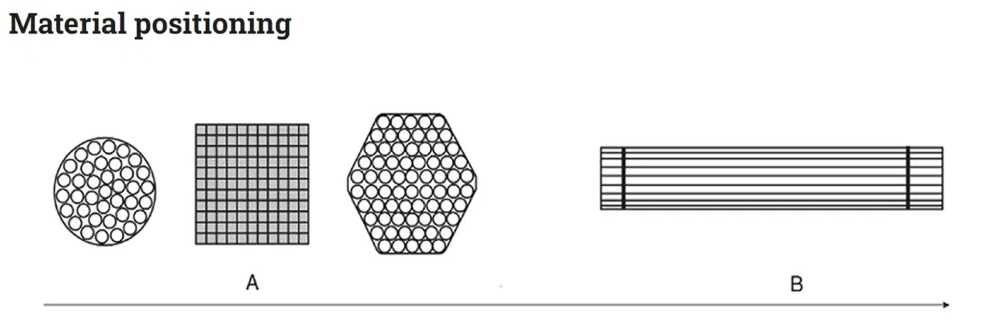

2. Steel strips distribution forms:
a. Example: 12m steel pipes, the steel strips are usually arranged as 4, 2, 2, 4.

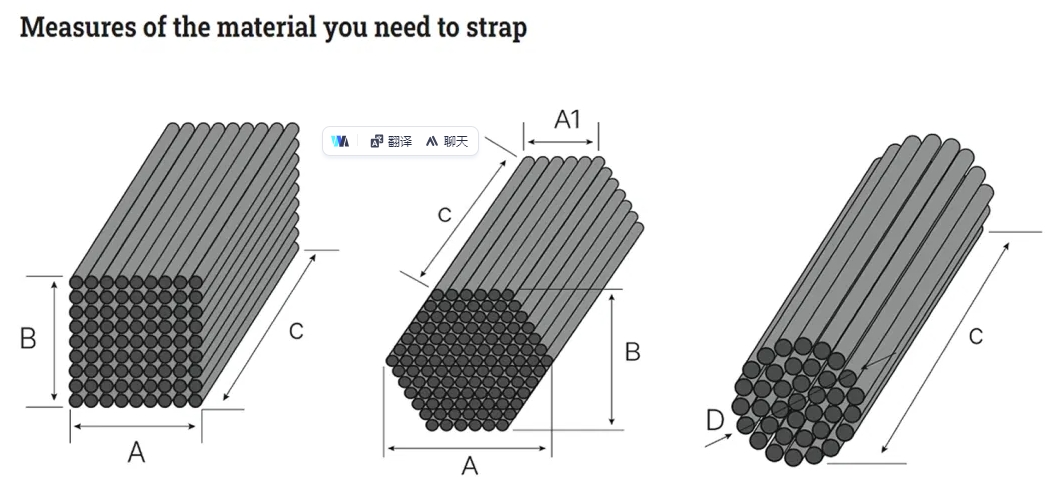

b. The steel strips distribution form will be designed according to the length of steel pipes, or as per customer's requirement.

Product Parameters

Strong R&D team, providing tailored solutions for each customer

DGR-IVA Fully Automatic Buckle Type Steel Belt Strapping Machine Head
Power Source	Daily Maintenaance
Voltage: AC380V Belt feeding motor: 3kw Logic motor: 1.1kw Reduction Ratio: 1:120 Pneumatic parts: pressing-belt-wheel cylinder, pressing-buckle cylinder, feeding-buckle cylinder. Pressure: 4-6bar Instantaneous gas consumption: Max 0.9L/s	As per general equipment maintenance
Strapping Speed	Belt Spec
General working time of head in strapping process is 9.8 secs/belt.	Width: 19mm, 25mm,32mm, Thickness: 0.8-1.2mm
Steel Belt Connection	Applicable Environment
Buckle connection Maximum quantity of lock installed on the machine at a time is 200 pieces.	Hyperthermal environment, normal temperature environment, low environment, and various complex environment.
Belt tension	Applicable Objects
Max.20000N (adjustable)	Hot rolled coil, hot rolled plate, high-strength steel, cold rolled coil, ingot pile, overweight pipe pile, var pile, and various overweight material.
Consumable Accessories List	Strength of Steel Belt Joint
Feeding-belt wheel, belt cutter, biting unit.	The connection strength accounts for about 75% of the steel belt itselt(influenced by the toughness and rigidity of the steel belt, compressive strength, and buckle quality).
Machine Maintenance
Suggest providing minor maintenance every 6 months and major maintenance 1 year.

Products We offer
Shenzhen Superworker Technology Co., LTD is an innovative enterprise specializing in industrial packaging, the core business is R&D, manufacturing and sales of fully automatic mechanical equipment, intelligent packaging units and intelligent coil material logistics systems.

Our company's main products and service include: fully automatic mechanical equipment(steel belt/PET belt strapping machine, stripping machine,marking machine, labeling machine, etc), intelligent industrial packaging units(coil material, linear material, board material, etc), intelligent coil material logistics system, similar product's renovation and upgrading, maintenance service, and supply of vulnerable and consumable parts

Item Names	Types	Features
Strapping Materials	Steel belt	Buckle connection
		Welding connection
		No-buckle(punching) style connection
	PET belt	Frictional welding connection(only suitable for coldmill)
		Ultrasonic welding connection
	Aluminium belt	Special for soft metal materials
	Copper belt	Special for soft metal materials
Strapping Types	Semi-automatic
	Fully automatic
Strapping machine head types	Basic type	Economically affordable
	Pneumatic tensioning type	Most users' choice, durable, reduce accessories' loss
Strapping machine mounting ways	Strapping machine is fixed, the material is moving.
	The material is fixed, strapping machine is moving.
	Strapping machine operates overhead.
Strapping belts specifications	Steel belt	Width: 19mm, 25mm, 32mm, 50mm; Thickness: 0.8~1.2mm
	PET Belt	Width: 19mm, 25mm, 32mm; Thickness: 0.8~1.2mm
	Aluminium/Copper	Width: 30mm; Thickness: 1.25mm
The gap between two belts	Highest precision: 4mm; customized

Strapping Strip Types:

Steel Pipes Stacking Solutions

Tailored solutions according to user's product characteristics or requirements. Commone stacking solutions:

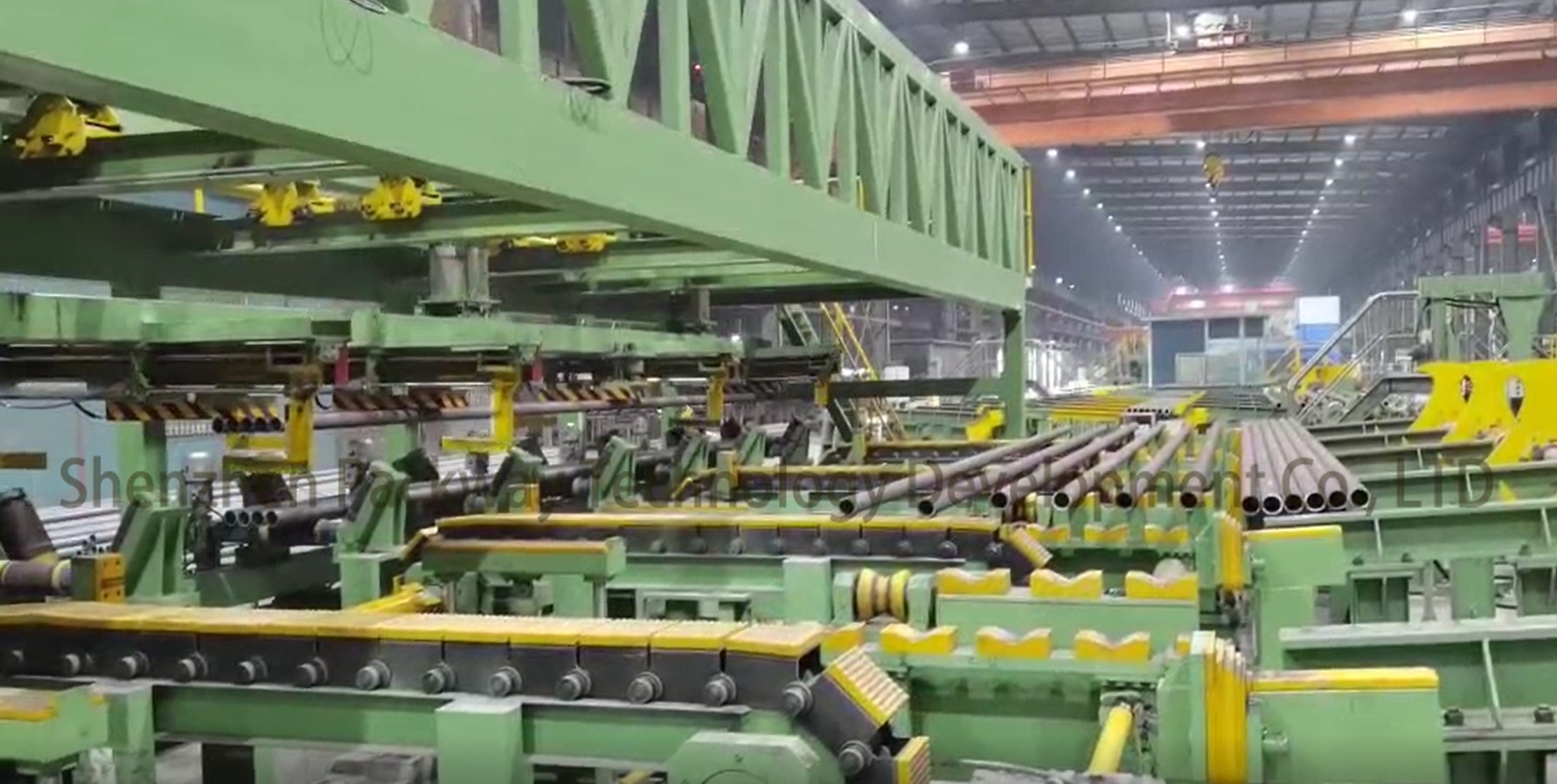

Integrated intelligent steel pipes transferring, stacking, strapping and storing system.

Company Profile
Shenzhen Packway Technology Development Co., LTD, Founded in March 2005, has been at the forefront of innovation, constantly striving to develop cutting-edge technologies and solutions. We currently operate three subsidiary companies, each connected with different sectors of the machinery market.

History of the three branches:
Shenzhen Superworker Technology Co., LTD, established in June 2011, is an innovative enterprise specialized in industrial packaging. The main products and services include: automatic mechanical equipment (steel belt /PET belt strapping machine, clipping belt machine, marking spray machine, labeling machine, etc.), intelligent industrial packaging unit (coil, wire, plate, etc.), intelligent coil logistics system, transformation and upgrading services of similar products, repair and maintenance services of related equipment, supply of wearing parts and consumables. The SUPERWORKER has strong R&D strength and Customers from both domestic and international markets.

With the wide application of automation equipment, Shenzhen Dagongren Electric Cylinder Technology Co., Ltd came into being in 2014. We are engaged in designing and manufacturing linear motion products, including servo/stepper motor electric cylinders, linear actuators, multi-degree of freedom platforms, synchronization lifting platforms, VR simulators, etc, with features of high positioning accuracy, low noise, and long life. Our products have been widely used in automated warehousing, robotics, automation equipment, medical equipment, and AGV, vehicles, etc.

Works Hydraulic Technology (Dongguan) Co..Ltd, deeply rooted in the hydraulic, electronic control, and mechanical related industries, focuses on the research and development, production, and sales of electromechanical and hydraulic products. With a professional approach to providing personalized solutions for customers as the main model. Works mainly produces various hydraulic equipment, lubrication equipment, electronic control systems, hydraulic cylinders, and other products.

FAQ
Q1. What are your terms of packing?
A: Standard exporting wooden box. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your
authorization letters.
Q2. What are your terms of payment?
A: T/T 50% as deposit, and 50% before shipping. We'll regularly report and show our production process.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF. As per customer's requirement.
Q4. How about your delivery time?
A: Generally, it will take 2 months to produce the products. The delivery will be 7 days by air, 30 days by sea. The specific delivery time depends on the items and the quantity.
Q5: How is the warranty system?
A: 1~5 years. (Upon the deal)
Q6. Do you test all your goods before delivery?
A: Yes, all the products will be tested and debugged before delivery.
