Production Line of Industrial Laser Distance Sensor - Chengdu JRT

200Hz Smart LiDAR Sensors For Cars

After the courier delivered to you, just opened from package, laser module ( HSLD01 on PCB) which work from USB TTL adapter. If more using instructions, please address it to our sales or technical department to support. So we can help you in time.
Sincerely yours

Some Questions For You:
1.Q: Can you ship to South Korea?
A: Yes. JRT will send our customers' package via global DHL/UPS,FEDEX etc.
2. Q: Can I use it in continual measuring mode?
A: Yes. JRT's LiDAR Time of Flight (ToF) sensor supports continual function.
3. Q: Can I pay by card?
A: Yes. Customers usually use Paypal,T/T,Western Union to buy a lidar sensor from JRT.

Data sheet:

HSLD01-200Hz
Range: 200m
Size: 43*35*21mm
Weight: 20g
Accuracy: ±10cm
Frequency: 200 Hz
Laser Type: 905nm,Class I
Operating Temperature: -15℃~50℃

Notes:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. Voltage can be changed by power converter LDO
4. Frequency would be affected by environment.
5. Operating temperature -10 ℃~50 ℃ can be customized.
6. Analog can be customized.

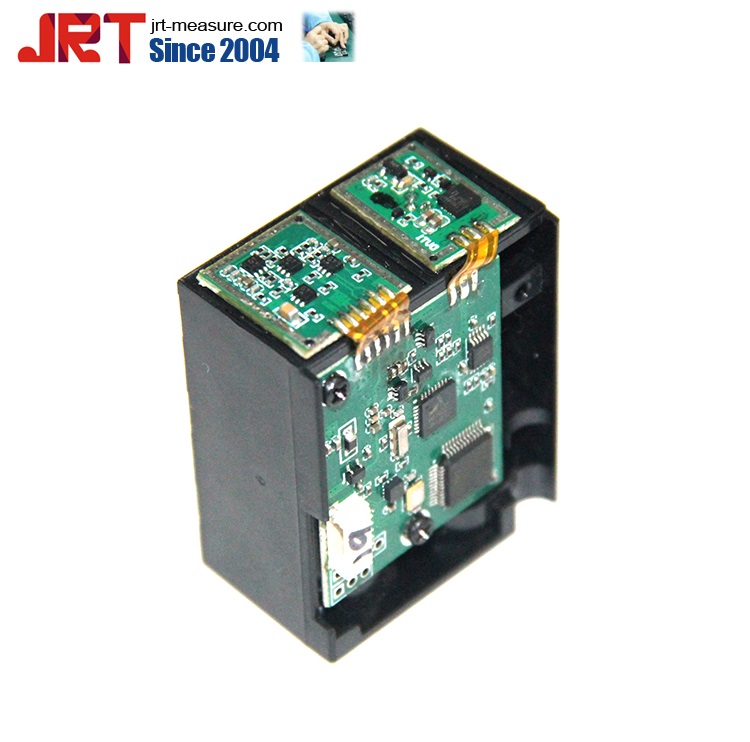

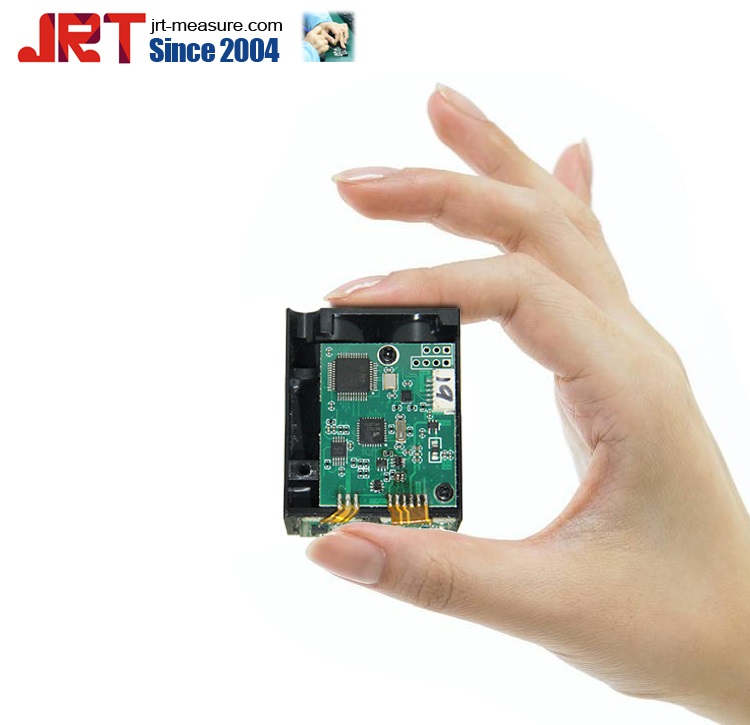

More Detailed Pictures

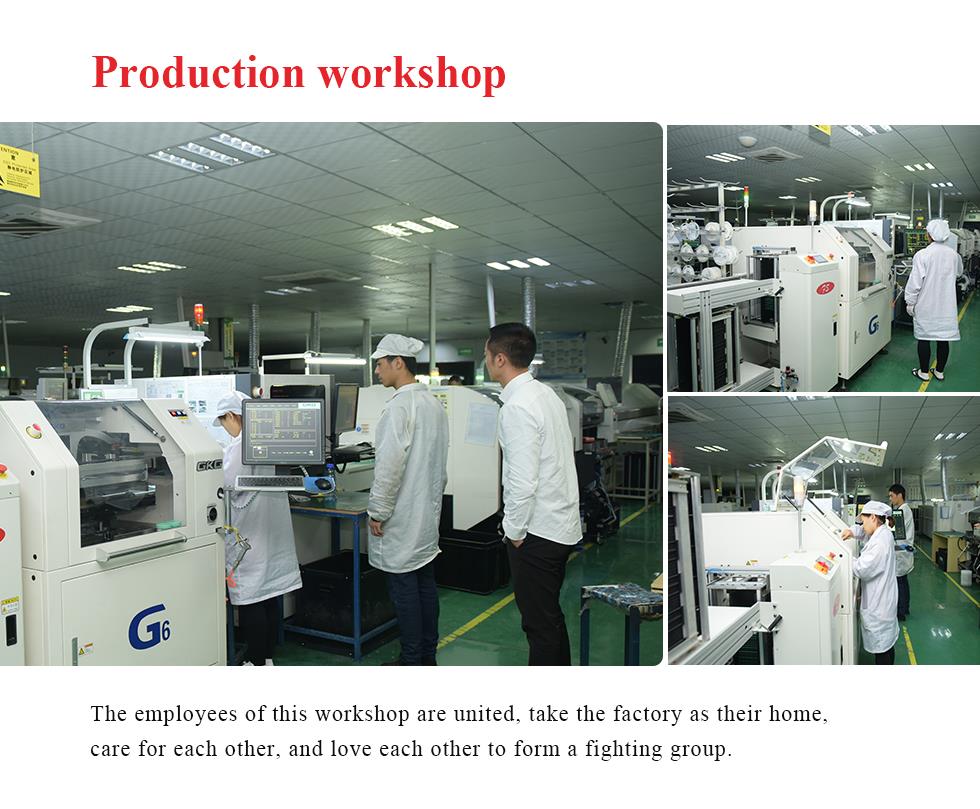

Chengdu Jingruite Factory and production line

Smart LiDAR Sensor For Cars Applications

Other high accuracy laser distance sensor:

Chengdu JRT Main Ranging Modules: Industrial Laser Distance Sensors, Laser Rangefinder Sensor , Tof LiDAR Sensors.
