TG Water proof 100kg load testing

1.Application

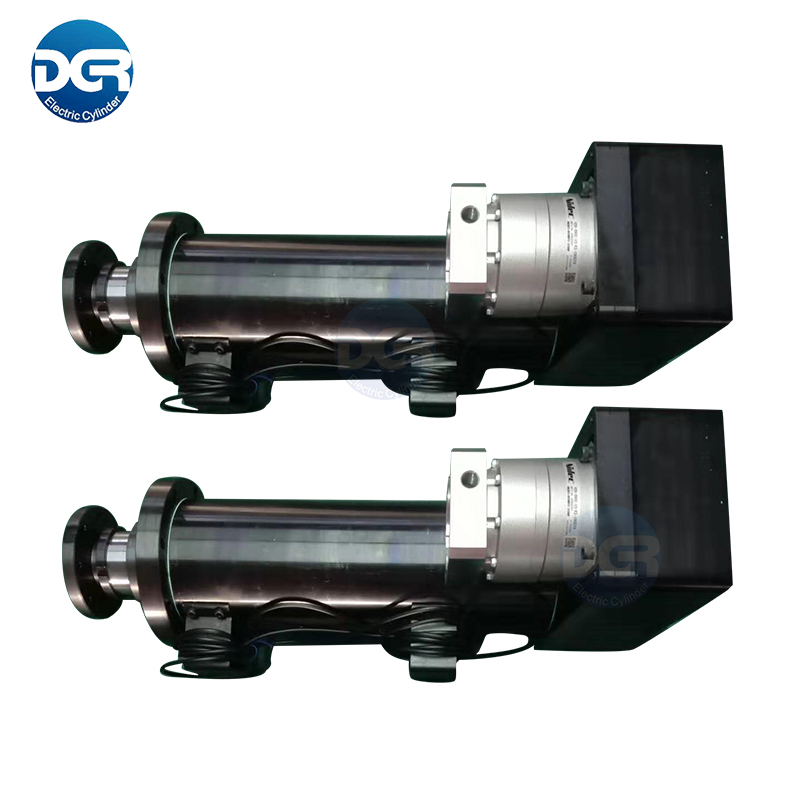

The Planetary Roller Electric Cylinder can withstand heavy loads for thousands of hours in harsh environments, making it an ideal choice for applications requiring continuous duty.

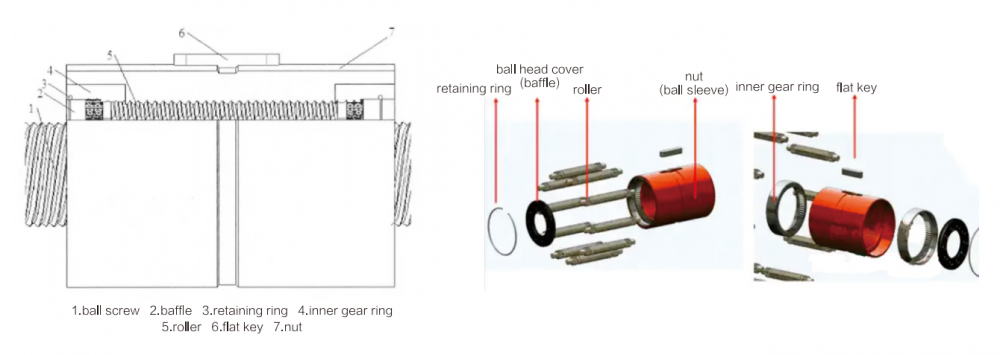

Planetary roller screw electric cylinder its main components include:
Screw Rod, the thread profile is a right angled triangular thread (at least 3 threads);
Nut, the internal thread profile is the same as the lead screw;
Roller, the thread profile is a right angle circular arc thread (single head thread), with a cylindrical pivot and gear at the end of each roller. The pivot is installed in the circular hole of the baffle, ensuring uniform radial distribution of the rollers. The gear teeth mesh with the inner gear ring, which causes the roller to run smoothly; Flat key, used to connect the transmitted objects, has a simple structure, convenient disassembly and assembly, good alignment, and is suitable for high-speed, variable load, and impact situations.

2.Lubrication

The lubrication method of planetary roller electric cylinder is generally the same as that of gears and bearings, and oil lubrication or grease lubrication can be selected based on actual application conditions. If not specified specifically. We can also recommend more suitable lubrication methods based on the actual working environment requirements of customers.

The relative tolerance level is:

Our technical team has excellent design concepts and technical standards, and has been engaged in planetary roller screw design, electrical control design, production management, etc. for over 10 years.

Come to contact us with your electric cylinder inquiry.
