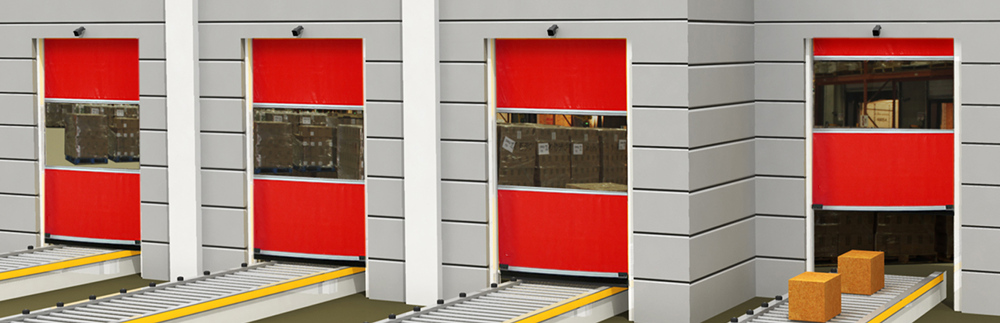

KENVO DOOR rapid doors for Conveyor
3 year ago

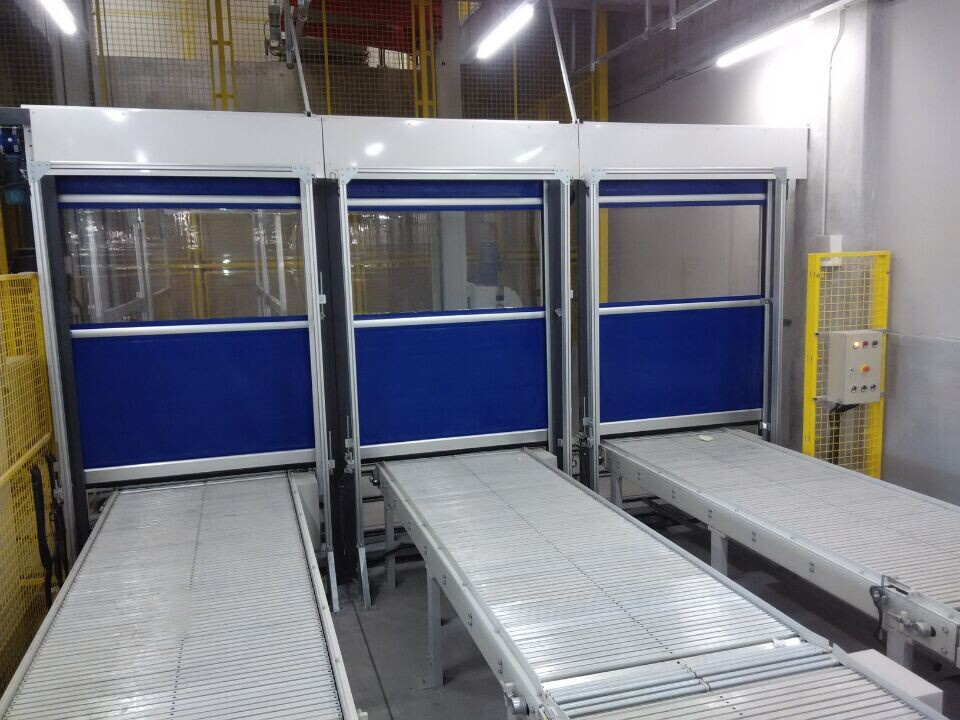

In warehouse and logistics industry, material handling are getting more and more efficient, automated, and intelligent. This is a big trend to meet with requirement of booming online shopping and quick development of Industry 4.0. Kenvo develop and produce PVC fabric High Speed Roll Up Doors for the material handling conveyor system in warehouse or factory. Our PVC rapid rolling door is with fast opening and closing speed, to satisfy quick movement of goods on the roller converyor or belt conveyor. It also help separate and isolate in different rooms, to prevent dust or air and keep clean. Every Kenvo PVC Rapid Roll Up Door has inbuilt several interacting signals to be connected with PLC controller of conveyor system. This realize a full automatic material handling and transfering on the conveyor system.
Work procedure of conveyor with KENVO rapid rolling door:
Goods approach➱ Conveyor stop➱ Conveyor PLC give signal to rolling door➱ Rolling door open to top➱ Rolling door feedback signal to conveyor PLC➱ Conveyor going forward➱ Goods pass the door➱ Conveyor PLC give singal to rolling door➱ Rolling door close
Advantages of KENVO conveyor system PVC Rapid Roll Up Door:
|
·Fast Running Speed Running speed reach up to 2.5m/s. The door can open and close in seconds. This improves passing efficiency obviously.
·High Running Frequency The door can open and close for 500 cycles per hour. It can meet your requirement for heavy traffic.·Good Airtightness Side and bottom are with airtight seal brush or rubber, to minimize the gap. It can prevent air and dust spreading, to keep rooms clean.
|
|
·Long Work Life Servo technology control system, with accurate closed-loop control of load output. This can protect motor from over-heating after long time constant running for a work life of 10+ years (1000 cycles per day). ·Abundant Extended Functions The door have inbuilt interlocking program, and interaction program with conveyors, robot, AGV, machines, and PLC controller. ·User Friendly Human-machine Interactive With a LED display on controller, all parameters and running data are shown in English language clearly. You can easily operate and set the door like using a mobile phone. |
How to operate High Performance Door?
① Control buttons：Workers can operate the door by hands to open, close and stop it with nearby control buttons.
② Automated PLC control: Our door controller already prepare several input and output signal terminals. It can be directly connected with total control system of material handling conveyor system , namely SIEMENS PLC or any other brand of PLC. The PLC can give signal to the door, to let it open or close. And at the same time, our PVC rapid rolling doors can give feedback signals of open-finished and close-finished to the PLC. All the signal terminals are voltage free dry contact. So it is easy to make such direct wire connection.
Is the door safe for passing people or goods ?
We equip every PVC rapid rolling door with safety protection devices :
1. Safety photo cell: When light beam is blocked, it will give signal to the door controller, and let the door stop or run up.
2. Bottom safety edge sensor: Soft seal rubber at the bottom is inbuilt with pressure senso. When the door touches something under it, the sensor will give signal to the controller, and let the door stop or run up.
3. Alarm lamp: When door running, the alarm lamp will get on and give out flashing light to warn nearby people.
|
SPECIFICATIONS |
DATA |
|
Max Size |
W5000mm*H5000mm |
|
Application: |
Interior use |
| Running Speed |
Opening 1.5m/s, Closing 0.8m/s (speed adjustable ) |
| Running Frequency | Max 400 cycles per hour (1 cycle=1 opening & 1 closing) |
| Side Track & Top Cover |
Standard Material: galvanized steel with surface powder coating; (Optional material: 304 stainless steel.) Side tracks: 125mm*T1.5mm CNC forming shape Top cover & Motor cover: T1.2mm CNC forming shape |
| Drive Motor |
Italy servo technology motor Power supply: 1-phase 220±10V, 50/60HZ; Power: 750W/1500W |
| Control Panel |
Italy servo technology closed-loop control, realizing soft start and soft stop. Various parameters adjustable: Running speed, Running limit position, Auto-close interval time, Auto/Manual modes. Inbuilt function: interlocking, Signal-interacting with PLC, conveyor or air shower or robot |
| Operation Device |
Wall-mounted control buttons at both sides and Conveyor PLC signal terminals |
| Safety Device |
1.Safety photo cell sensor 2.Wireless safety edge sensor 3. Alarm lamp |
|
Curtain |
PVC fabric curtain, double-surface coating treatment, Self-cleaning, Anti-static, Dust-proof. Thickness: 1.0mm for color fabric, 1.5mm for clear window fabric. Fire retardant grade: B1. Optional Colors of main curtain:
|
|
Manual Opening Device |
Emergency manual swing bar: opening the door by hand in case of powder failure. Optional device: UPS battery. The door will be able to open and close for 10 cycles with battery power after power failure. |
