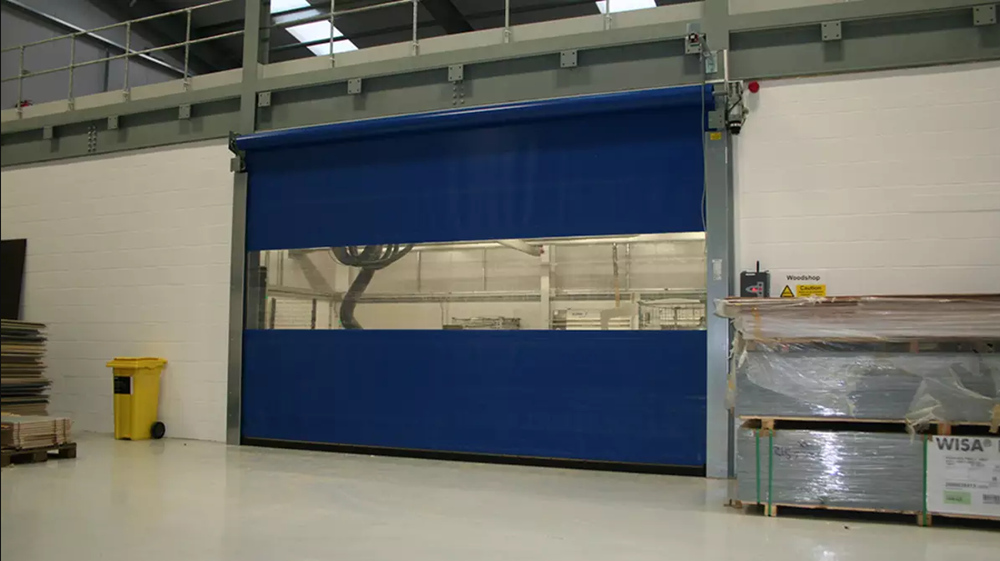

Pvc Rapid Door With Auto Radar Sensor-1
3 year ago
Economy pvc fabric high speed doors have exactly the same function and performance with a standard pvc rapid door. It is a perfect choice of high performance doors for your warehouse and factory, with an cost-effective way. With aluminum wind bar in its fabric curtain, it is with good wind resistance and fit for both exterior and interior use.
Every economy rapid door is also equipped with advanced servo technology drive motor and controller box. Work life and stablity are guaranteed. To save the costs for clients, we reduce some unnecessary parts, including top cover, motor cover, and alarm lamp. And side tracks of economy high speed doors are made from galvanized steel material without additional painting. These are decoration parts for a pvc rapid rolling door, and will not influence working of the fast door. In this way, the price of the door is reduced , to save money for clients.
|
·Fast Running Speed Running speed reach up to 2.5m/s. The door can open and close in seconds. This improves passing efficiency obviously.
·High Running Frequency The door can open and close for 500 cycles per hour. It can meet your requirement for heavy traffic.·Good Airtightness Side and bottom are with airtight seal brush or rubber, to minimize the gap. It can prevent air and dust spreading, to keep rooms clean.
|
|
·Long Work Life Servo technology control system, with accurate closed-loop control of load output. This can protect motor from over-heating after long time constant running for a work life of 10+ years (1000 cycles per day). ·Abundant Extended Functions The door have inbuilt interlocking program, and interaction program with conveyors, robot, AGV, machines, and PLC controller. ·User Friendly Human-machine Interactive With a LED display on controller, all parameters and running data are shown in English language clearly. You can easily operate and set the door like using a mobile phone. |
How to operate the door ?
Is the door safe for people and vehicles ?

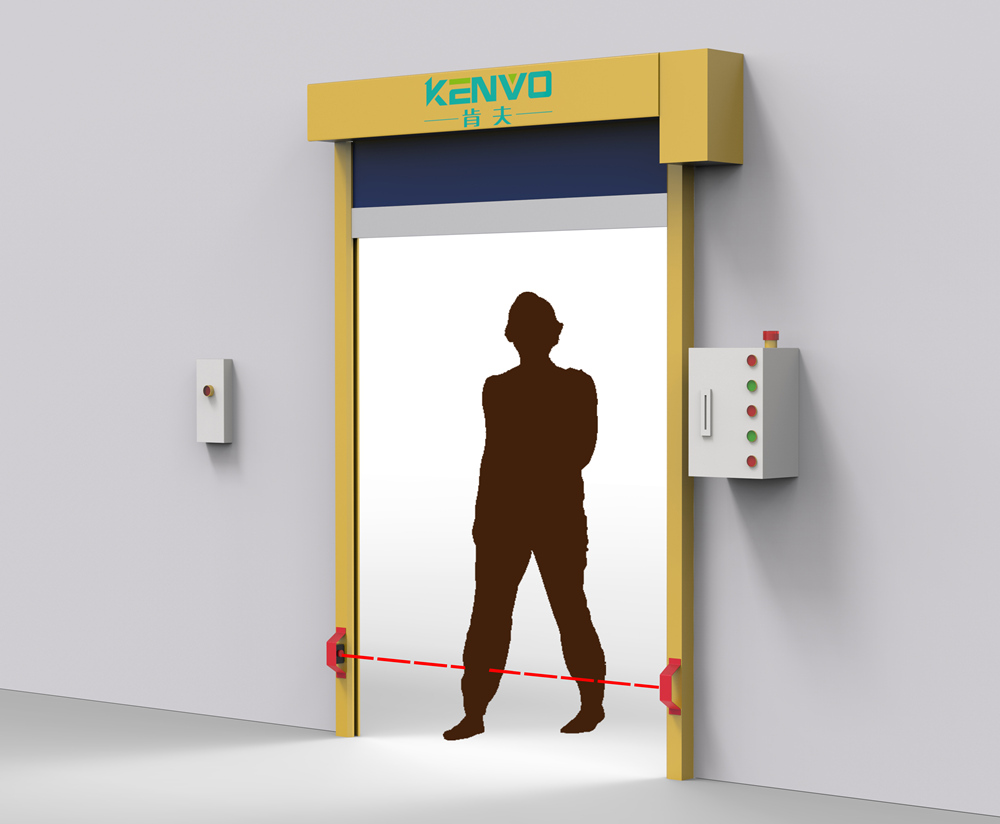

When people or forklift come across the door, the beam of safety photo cell sensor is blocked and sensor will be activated to stop the door from closing to avoid
collisions.
More data you may want to know
|
SPECIFICATIONS |
DATA |
|
Max Size |
W6000mm*H6000mm |
|
Application: |
both Exterior and Interior use |
| Running Speed |
Opening 1.5m/s, Closing 0.8m/s (speed adjustable max 2.5m/s ) |
| Running Frequency | Max 400 cycles per hour (1 cycle=1 opening & 1 closing) |
| Side Track |
Standard Material: galvanized steel with original surface; 125mm*T1.5mm CNC forming shape |
| Drive Motor |
Italy servo technology motor Power supply: 1-phase 220±10V, 50/60HZ; Power: 750W/1500W |
| Control Panel |
Italy servo technology closed-loop control, realizing soft start and soft stop. Various parameters adjustable: Running speed, Running limit position, Auto-close interval time, Auto/Manual modes. Inbuilt function: interlocking, Signal-interacting with PLC, conveyor or air shower or robot |
| Operation Device |
Standard: wall-mounted control buttons at both sides Optional: Touchless hand detector, Touchless foot detector, Motion radar sensor, Loop vehicle detector, Pull-cord switch, Remote control |
| Safety Device |
Safety photo cell sensor |
|
Curtain |
PVC fabric curtain, double-surface coating treatment, Self-cleaning, Anti-static, Dust-proof. Thickness: 1.0mm for color fabric, 1.5mm for clear window fabric. Fire retardant grade: B1. Optional Colors:
|
|
Manual Opening Device |
Emergency manual swing bar: opening the door by hand in case of powder failure. Optional device: UPS battery. The door will be able to open and close for 10 cycles with battery power after power failure. |
