PVC fabric high speed rolling door
3 year ago
Assa Abloy group is the biggest company in door and entrance system industry. Assa Abloy style PVC fast action rolling doors are renowned for professional tailor made design and excellent quality level. Assa Abloy group owns many sub brands of doors which are famous in its sub market. For industrial sector, Assa Abloy PVC fast action rolling doors are very competitive and popular in many countries. But according to feedback of clients from different countries, clients meet some problems and difficulty when buying Assa Abloy style PVC fast action rolling doors. First issue is long delivery time, which takes around several month. Such long lead time can not match many projects schedule. Second is price. For many clients in developped countries, it is unaffordable to buy Assa Abloy style PVC fast action rolling doors for their warehouse and factory. Third problem is it is very difficult to get replacement parts when the door is running in failure or damaged.
To solve above problems for clients, Kenvo develop and produce similar design PVC fast action rolling doors as Assa Abloy. Our production time is normally 15 days only from order date. This saves around two or three month time for clients. The unit price per door set is only 20-30% of Assa Abloy doors . This directly saves huge purchase cost for clients at the first beginning. To reduce future maintenance, we use advanced Servo technology motor and controller to achieve similar level of stability with Assa Abloy style PVC fast action rolling doors. And to take it further, we will also directly supply some free spare parts according to purchase quantity. If such free spare parts are not enough, clients can get more spare parts in very cheap price and short time. This will save long term cost of using PVC fast action rolling doors for clients.
How to operate Assa Abloy style PVC fast action door ?
Is Assa Abloy Style fast action door safe for people ?
More data you may want to know

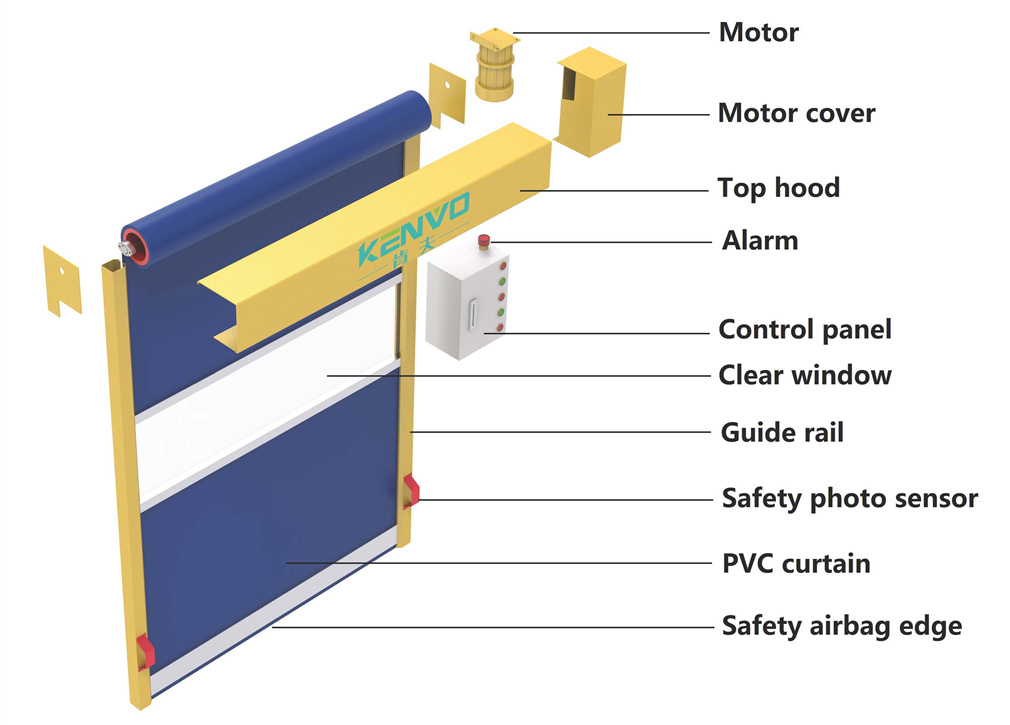

SPECIFICATIONS |
DATA |
Max Size |
W6000mm*H6000mm |
Application: |
both Exterior and Interior use |
Running Speed |
Opening 1.5m/s, Closing 0.8m/s (speed adjustable max 2.5m/s ) |
Running Frequency | Max 400 cycles per hour (1 cycle=1 opening & 1 closing) |
Side Track & Top Cover |
Standard Material: galvanized steel with surface powder coating; Side tracks: 125mm*T1.5mm CNC forming shape Top cover & Motor cover: T1.2mm CNC forming shape |
Drive Motor |
Italy servo technology motor Power supply: 1-phase 220±10V, 50/60HZ; Power: 750W/1500W |
Control Panel |
Italy servo technology closed-loop control, realizing soft start and soft stop. Various parameters adjustable: Running speed, Running limit position, Auto-close interval time, Auto/Manual modes. Inbuilt function: interlocking, Signal-interacting with PLC, conveyor or air shower or robot |
Operation Device |
Standard: wall-mounted control buttons at both sides Optional: Touchless hand detector, Touchless foot detector, Motion radar sensor, Loop vehicle detector, Pull-cord switch, Remote control |
Safety Device |
1.Safety photo cell sensor 2.Wireless safety edge sensor 3. Alarm lamp |
Curtain |
PVC fabric curtain, double-surface coating treatment, Self-cleaning, Anti-static, Dust-proof. Thickness: 1.0mm for color fabric, 1.5mm for clear window fabric. Fire retardant grade: B1. Optional Colors:
|
Manual Opening Device |
Emergency manual swing bar: opening the door by hand in case of powder failure. Optional device: UPS battery. The door will be able to open and close for 10 cycles with battery power after power failure. |
