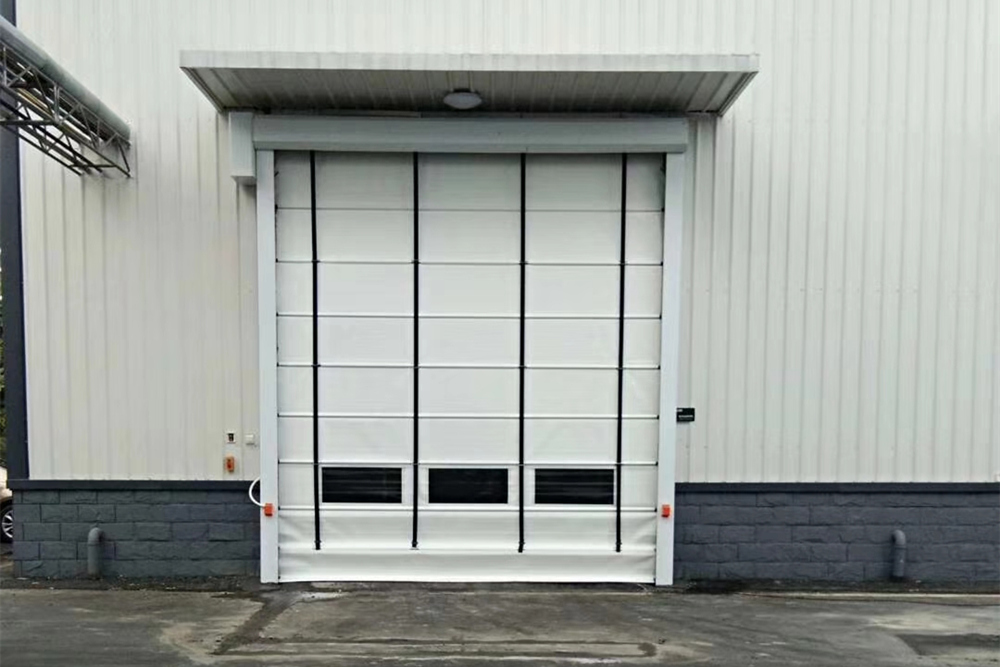

PVC stacking High Speed Roll Up Doors are tailor made model of rapid doors for big size door openings or extreme big wind pressure areas. Stacking lifting up design make it workable with heavy duty metal wind bar in its door curtain, obtaining excellent wind resistance. Such Stacking Rapid Roller Doors are specially suitable for exterior big size door openings larger than 5 meters.
In big machinery factory, truck factory, concrete industry, mining industry, or garbage disposal station, such pvc stacking High Performance Industrial Doors are widely used for main entrance. It can improve the passing efficiency and also prevent outside dust or air entering room.
Rapid Roller Doors are a type of automatic roll up door that is designed to open and close very quickly, widely used in modern factories and warehouses. It can run in high speed and frequency, very fit for areas with heavy traffic. It improves efficiency of material handling. On the other hand, air flow and heat conduction through the door is reduced obviously, to keep clean, hygiene and temperature inside room. Automatic running is realized with programmed control system and sensors.
|
·Fast Running Speed Running speed reach up to 1.5m/s. The door can open and close in seconds. This improves passing efficiency obviously.
·High Running Frequency The door can open and close for 200 cycles per hour. It can meet your requirement for heavy traffic.

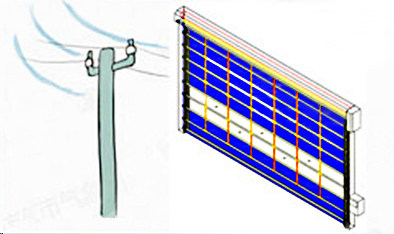

Heavy duty aluminum or steel wind resist bar to support door curtain for excellent wind resistance even with big door opening sizes up to 10 meters.
|
|
·Long Work Life Servo technology control system, with accurate closed-loop control of load output. This can protect motor from over-heating after long time constant running for a work life of 10+ years (200 cycles per day). ·Abundant Extended Functions The door have inbuilt interlocking program, and interaction program with conveyors, robot, AGV, machines, and PLC controller. ·User Friendly Human-machine Interactive With a LED display on controller, all parameters and running data are shown in English language clearly. You can easily operate and set the door like using a mobile phone. |
How to operate stacking High Speed Doors ?
Is the door safe for people and vehicles ?
More data you may want to know
|
SPECIFICATIONS |
DATA |
|
Max Size |
W10000mm*H9000mm |
|
Application: |
both Exterior and Interior use |
| Running Speed |
Opening 1.0m/s, Closing 0.6m/s (speed adjustable max 1.5m/s ) |
| Running Frequency | Max 200 cycles per hour (1 cycle=1 opening & 1 closing) |
| Side Track & Top Cover |
Standard Material: galvanized steel with surface powder coating; Side tracks: 200-300mm*T2.0mm CNC forming shape Top cover & Motor cover: T1.5mm CNC forming shape |
| Drive Motor |
Italy servo technology motor Power supply: 1-phase 220±10V, 50/60HZ; Power: 750W/1500W/2200KW |
| Control Panel |
Italy servo technology closed-loop control, realizing soft start and soft stop. Various parameters adjustable: Running speed, Running limit position, Auto-close interval time, Auto/Manual modes. Inbuilt function: interlocking, Signal-interacting with PLC, conveyor or air shower or robot |
| Operation Device |
Standard: wall-mounted control buttons at both sides Optional: Touchless hand detector, Touchless foot detector, Motion radar sensor, Loop vehicle detector, Pull-cord switch, Remote control |
| Safety Device |
1.Safety photo cell sensor 2.Wireless safety edge sensor 3. Alarm lamp |
|
Curtain |
PVC fabric curtain, double-surface coating treatment, Self-cleaning, Anti-static, Dust-proof. Thickness: 1.0mm for color fabric, 1.5mm for clear window fabric. Fire retardant grade: B1. Optional Colors:
|
|
Manual Opening Device |
Emergency manual swing bar: opening the door by hand in case of powder failure. Optional device: UPS battery. The door will be able to open and close for 10 cycles with battery power after power failure. |
